Power cable Switzerland (CHE) - type J to C13, black, 1.80m
MAG Part No.: CB-N-S-I (YP-46/YC-12)
- Plug: Type J (Type 12) 3-pin, partially insulated to C13
- Color: black
- length: 1,80m
- cross section: 3 x 0,75mm²
- Material: H05VV-F
- Approval: SEV
- RoHS compliant
- Packing: Bulk
Countries:
Liechtenstein, Switzerland

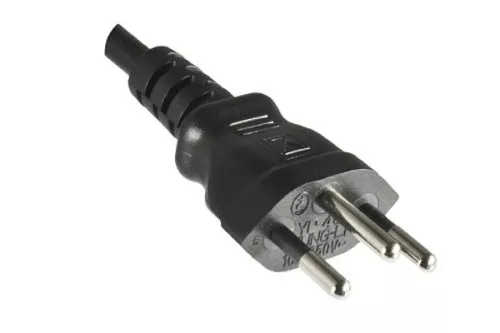

Plug type J (YP-46)
The system is also called type 13 in Switzerland and is usually used with 220-230 V AC, 50 Hz.
For safety in handling plugs, the Swiss standard SEV 1011:2009 introduced partially insulated plug pins of type 11 (2pin 10A) and type 12 (3pin 10A) for mains plugs.
After 31.12.2012, no old mains plugs may be manufactured or imported into Switzerland. By 31.12.2016, all existing electrical equipment with old plugs must be removed from sale and from stores.

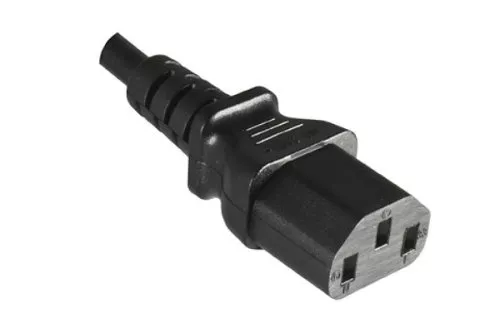

Plug C13 (YC-12)
Cold appliance plug IEC 60320-C13 is used for power connection of devices that do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.
