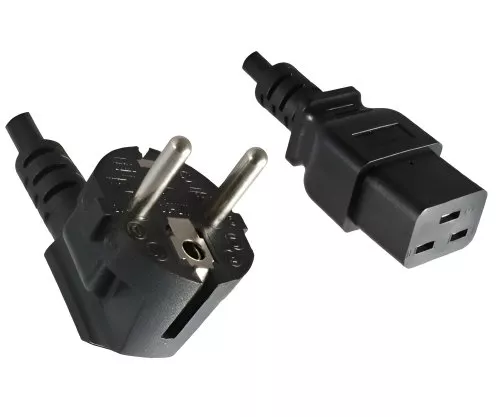

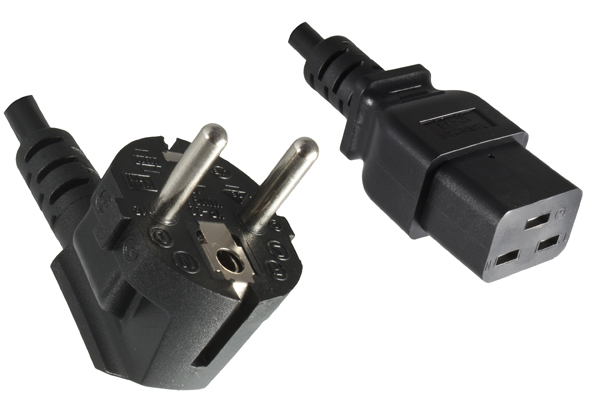

Power cable for Europe CEE 7/7 to C19, black, 1.8m
MAG item no.: CB-19 (YP-22/YC-18)
- Plug: CEE 7/7 safety plug E+F 90° angled to C19
- Color: black
- length: 1,8m
- Cross section: 3 x 1mm²
- Material: H05VV-F
- Approval: VDE, NF, DEMKO, FINKO, KEMA, CEBEC, OVE, IMQ, SEV, SAA
- RoHS compliant
- Packing: Bulk
Countries:
Afghanistan, Algeria, Andorra, Austria, Belgium, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Latvia, Lithuania, Luxembourg, Macedonia, Moldova, Monaco, Montenegro, Morocco, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, South Korea, Spain, Sweden, Tunisia, Ukraine.
In Syria and Turkey there is no official standard, but the grounding type plug is commonly used.

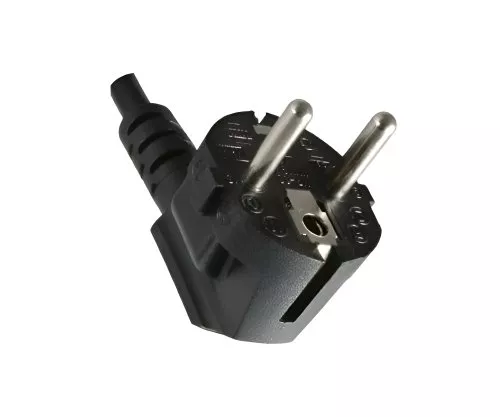

Plug type E+F 90° angled CEE-7/7 system - YP-22
In the grounding type plug, two protection systems were combined in one plug, so that the grounding is done through the contact surfaces or the grounding prong (French system).

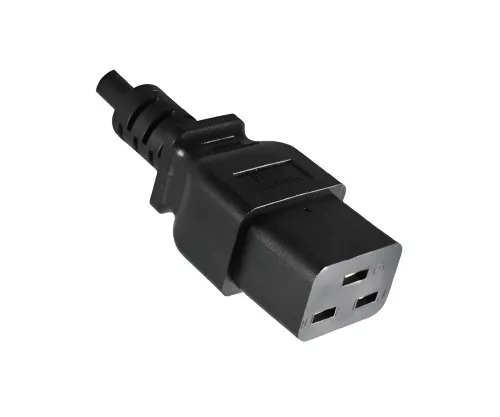

Plug C19 - YC-18
IEC 60320-C19 cold appliance plug is used for power connection of devices, which do not generate heat during operation, at higher currents up to 16A.
