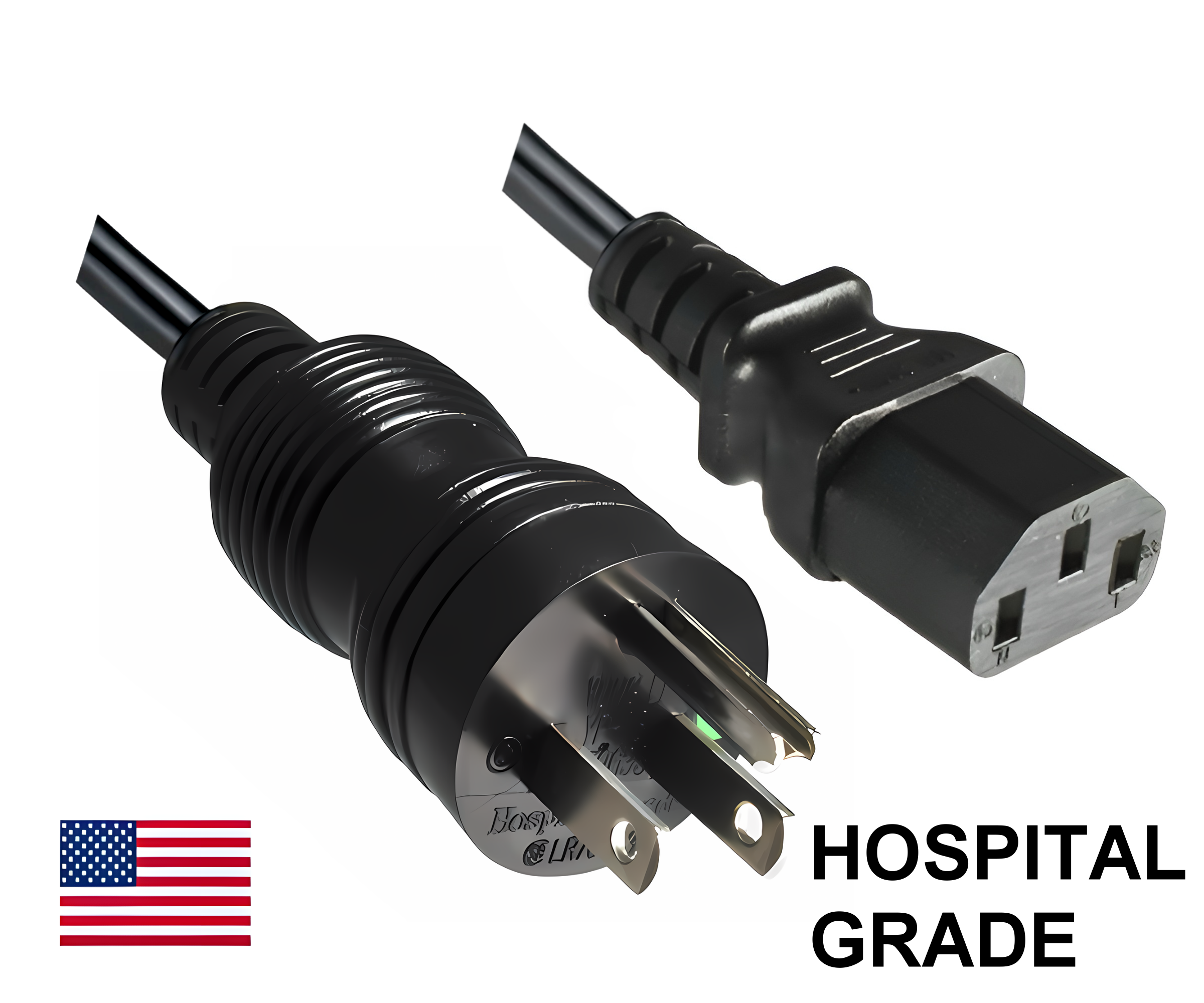

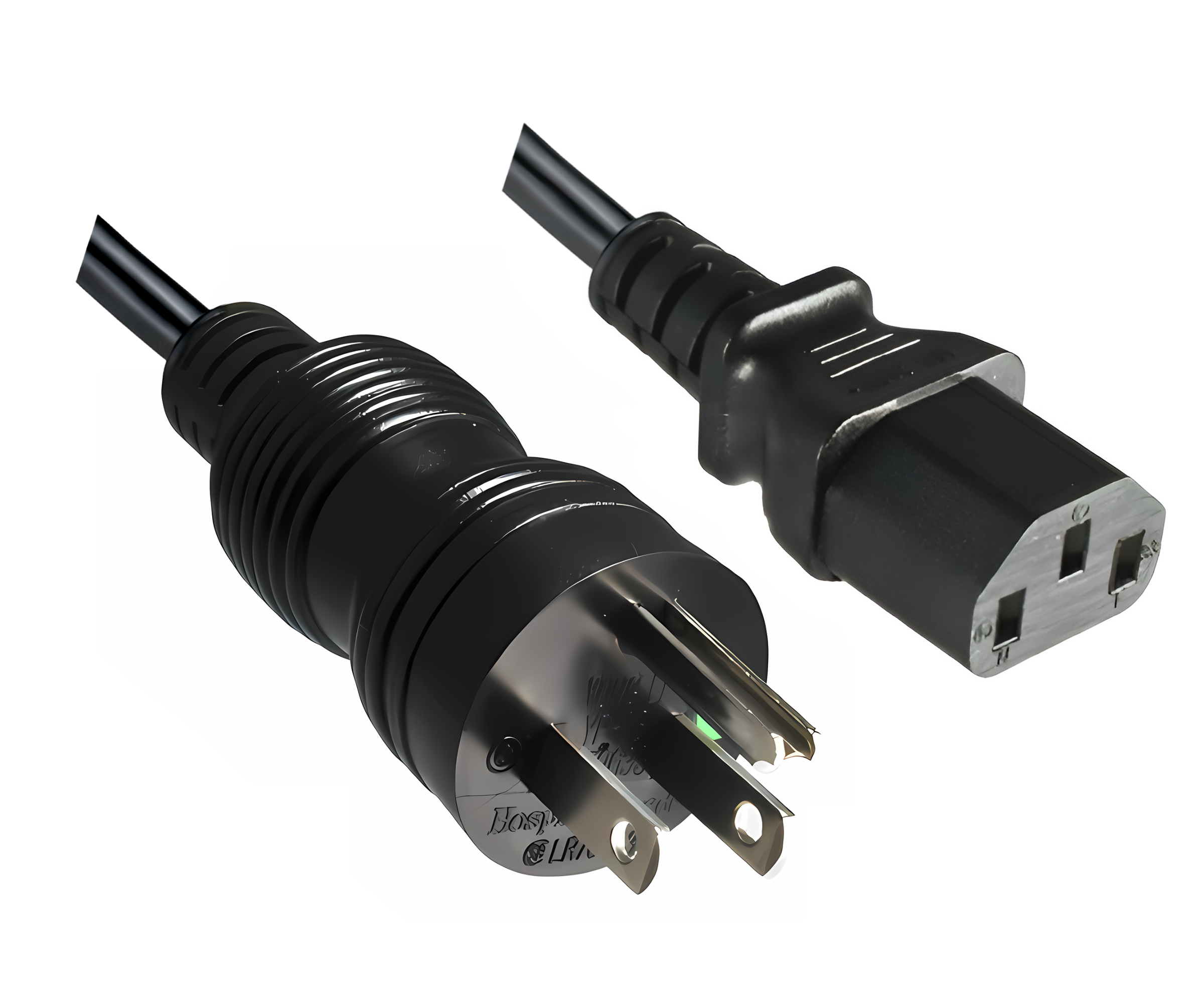

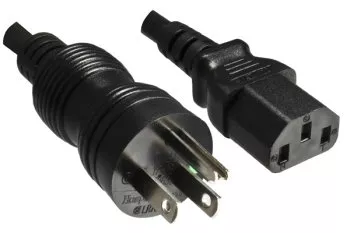

Power cable America USA Type B US NEMA 5-15P to C13, HOSPITAL GRADE, AWG18, SJT, UL, CSA, length 1.80m

Power cable USA - HOSPITAL GRADE - Type B to C13, 1.8m

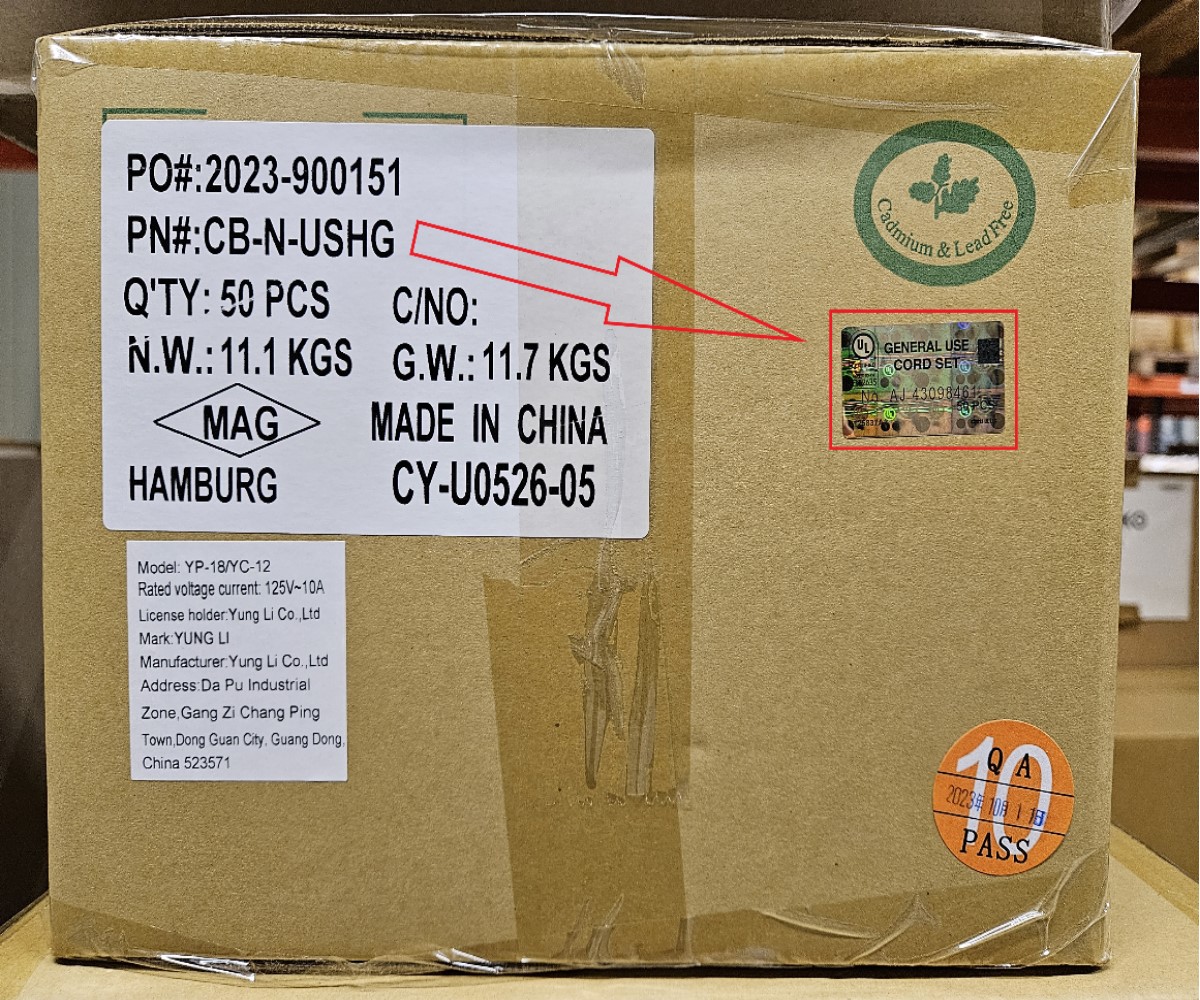

MAG Part No.: CB-N-USHG (YP-18/YC-12)

• Connector: Type B US NEMA 5-15P to C13 / 3-pin
• Color: black
• Length: 1,80m
• Cross section: AWG 18 x 3
• Approval: UL, CSA
• RoHS compliant
• Packaging: Bulk
• Material: SJT

S = Service Grade (also means extra hard service when not followed by J, V or P)
J = Hard Service
T = Thermoplastic

Countries:
Canada, Mexico, Taiwan, USA

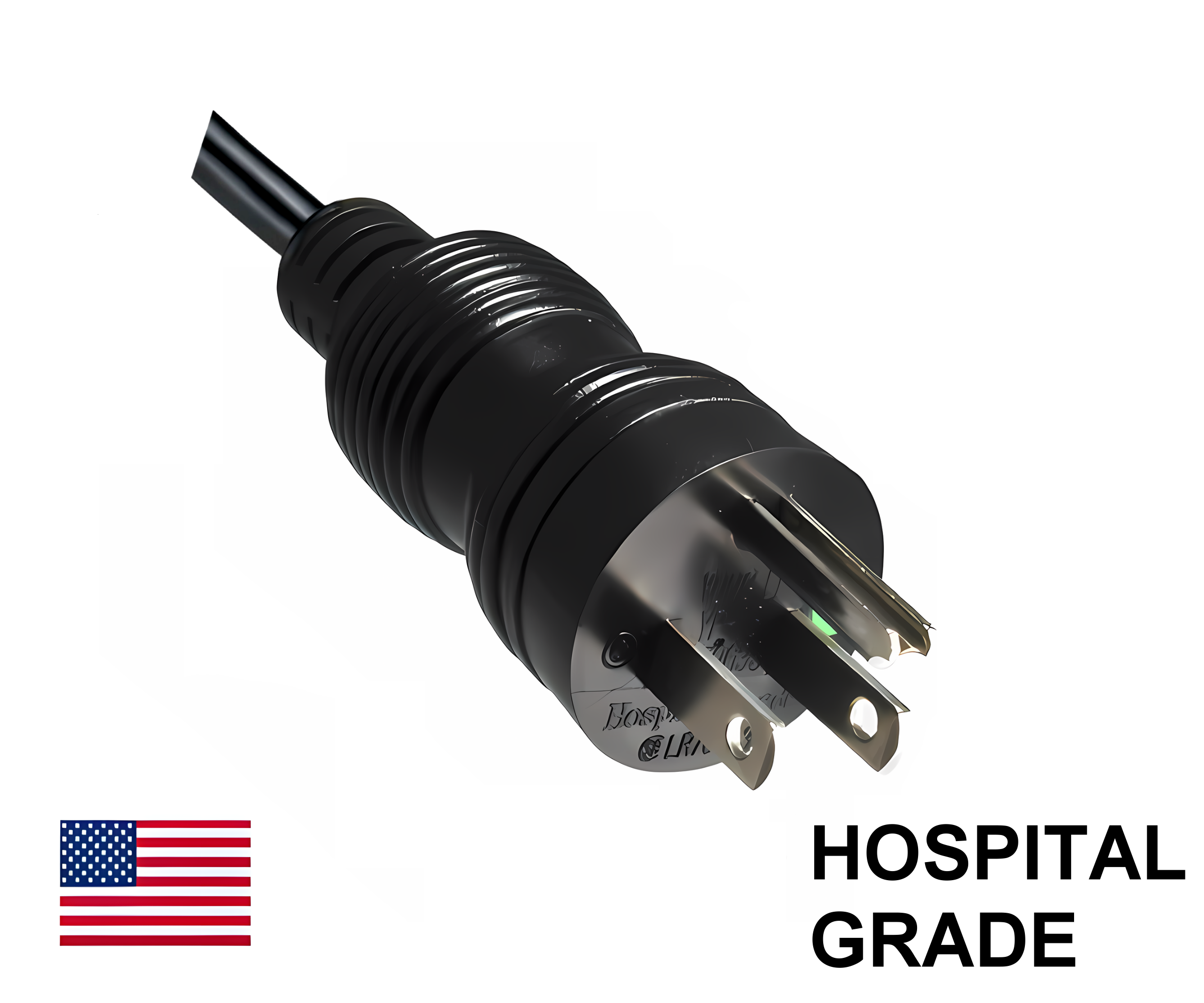

Connector Type B (YP-12)
The NEMA 5-15P connector has two flat parallel pins for neutral as well as live conductors and a round longer pin for the ground wire. It should be used for 120V, 60Hz maximum.

UL Specification 60601-1 specifically states that all patient-related precautionary equipment must have power cords with hospital grade connectors.

The main differences between standard NEMA and Hospital Grade NEMA connectors are as follows:

• Metal pins must be solid brass to prevent breakage.
• Strain relief must be provided on the inside of the plug mold, for stress reduction and reliable grounding.
• The plug must pass several rigorous tests that UL conducts before approval.
• The product must be marked with both a green dot and the words "Hospital Grade".

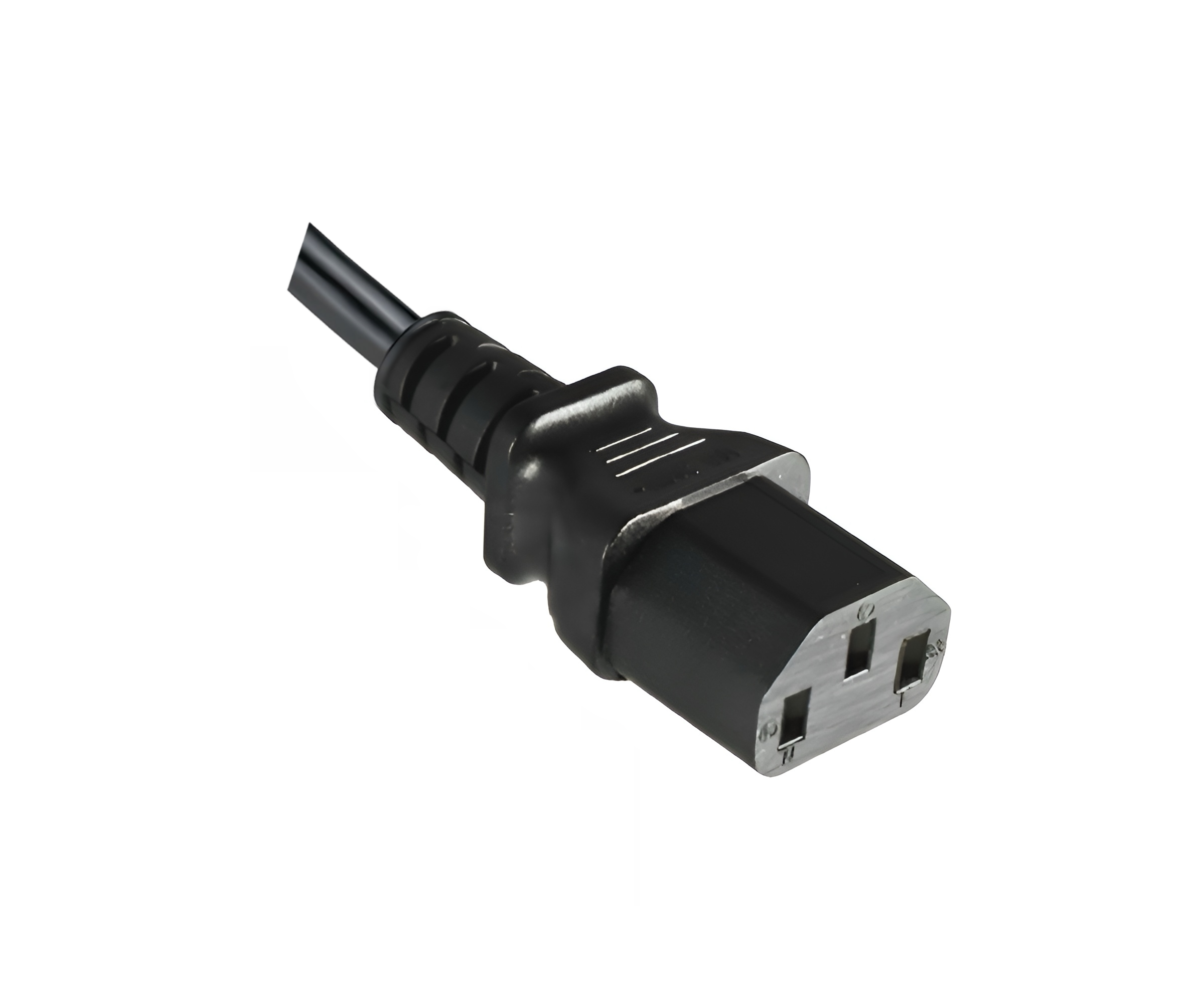

Plug C13 (YC-12)
IEC 60320-C13 cold appliance plug is used for power connection of equipment that does not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.
