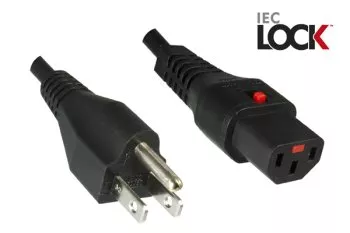

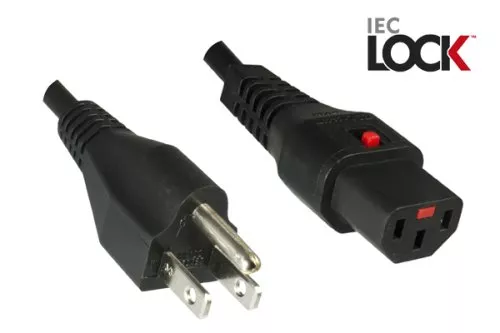

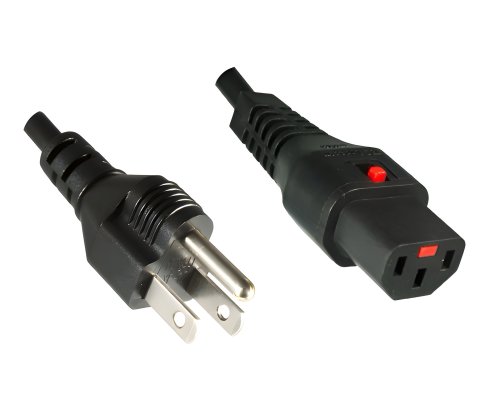

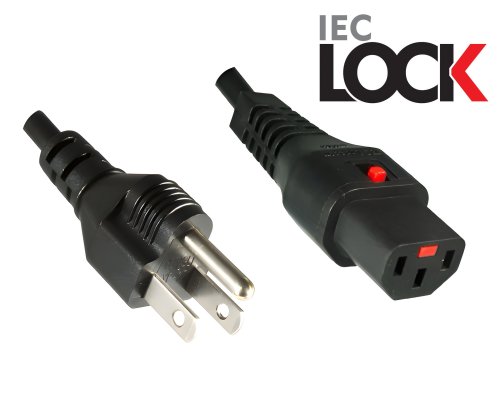

IEC Lock power cable USA - type B to C13 with locking device
MAG Part No.: CB-LOCK-US
- Connector: Type B to C13 with lock
- Color: Black
- Length: 2m
- Cross section: AWG 18
- Approval: UL, CSA
- RoHS compliant
- Packaging: Bulk
- Material: SVT
S = Service Grade (also means extra hard service when not followed by J, V or P)
V = Vacuum cleaner cord (also light duty cable)
T = Thermoplastic
Countries:
Canada, Mexico, Taiwan, USA

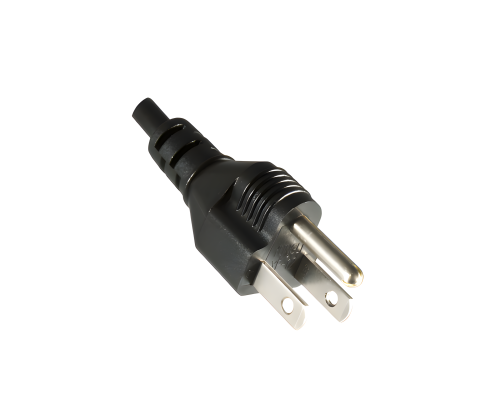

Type B connector
The NEMA 5-15P connector has 2 flat parallel pins for phase and neutral and a round longer pin for ground. It is used for max 120V 60Hz installations.

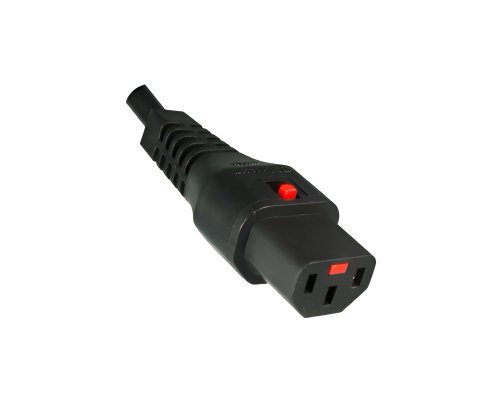

C13 plug
IEC 60320-C13 connector is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C, the maximum current flow is fixed at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.

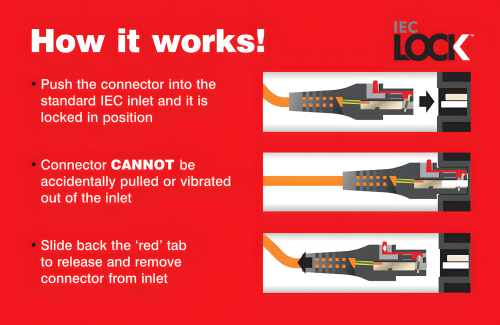

Pull-off safe cold appliance coupler protects against accidental disconnection of power supply to PCs, servers and other electrical devices.
- compatible with all commercially available cold-device power inputs
- protects devices susceptible to vibration
- connector cannot be removed unintentionally
- unlocking is done by pressing the red latching lever on the C13 power connector
- up to 10 A
