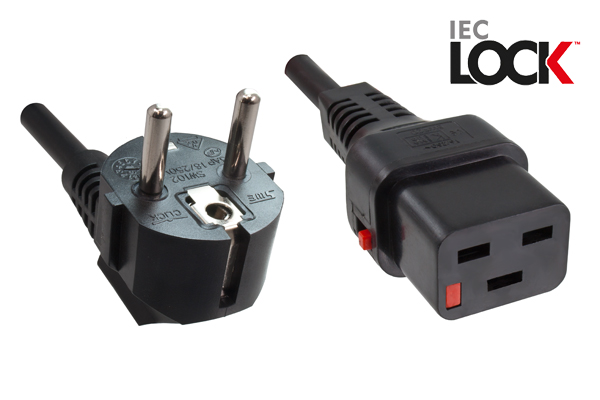

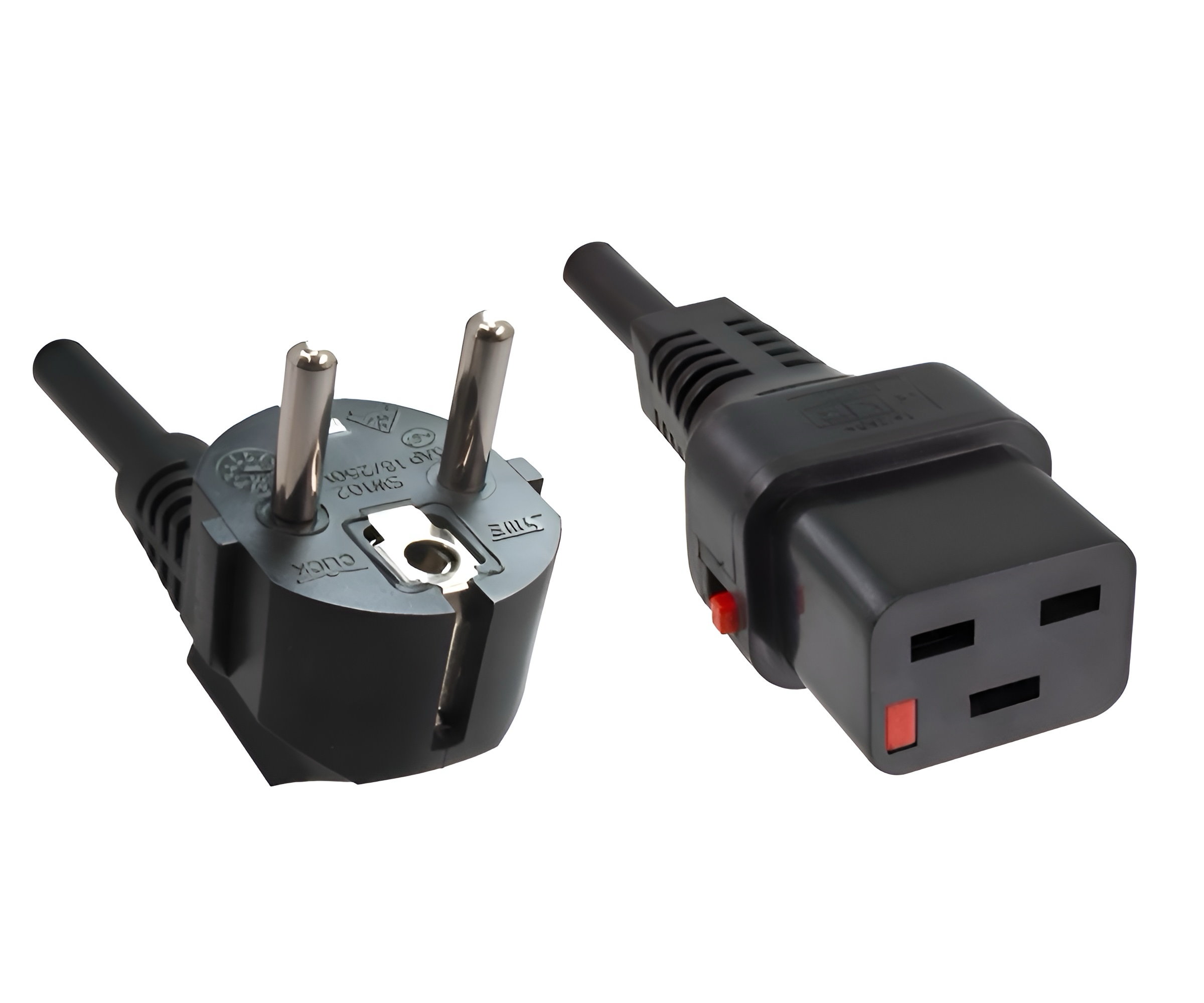

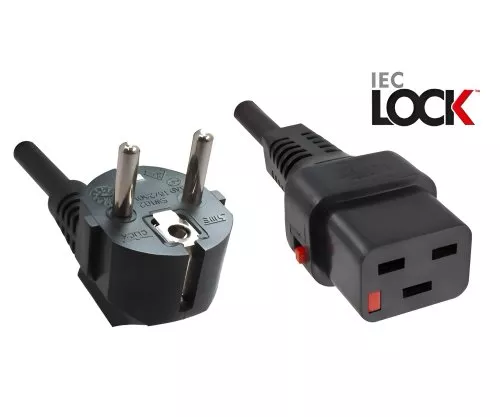

IEC Lock power cable - CEE 7/7 to C19 with lock, 2.00m
MAG item no.: CB-LOCK-EU-19
- Plug: earthing contact plug E+F 90° angled to C19 with lock
- Color: black
- length: 2,00m
- cross section: 3 x 1,5mm²
- Material: H05VV-F
- Approval: KEMA ENEC 05
- CE & RoHS compliant
- Packing: Bulk
Countries:
Afghanistan, Algeria, Andorra, Austria, Belgium, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Latvia, Lithuania, Luxembourg, Macedonia, Moldova, Monaco, Montenegro, Morocco, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, South Korea, Spain, Sweden, Tunisia, Ukraine.
In Syria and Turkey there is no official standard, but the Schuko plug is commonly used.

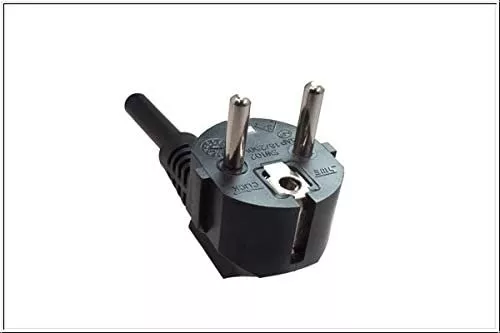

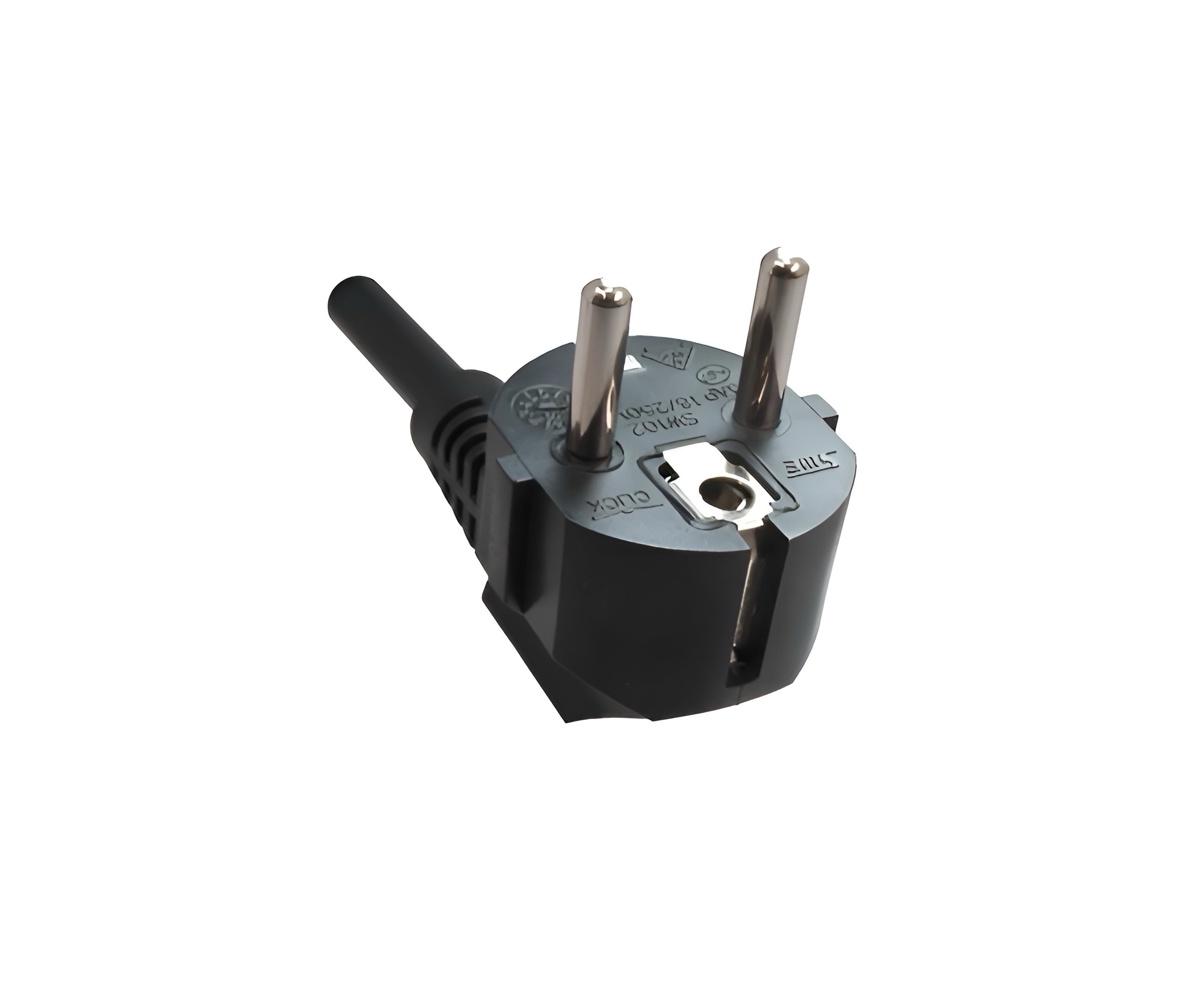

Plug type E+F 90° angled CEE-7/7 system
In the so-called Schuko plug, two protection systems were combined in one plug, so that the grounding takes place via the contact surfaces or the grounding spigot (French system).

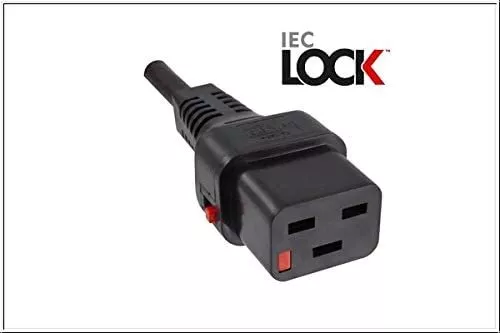

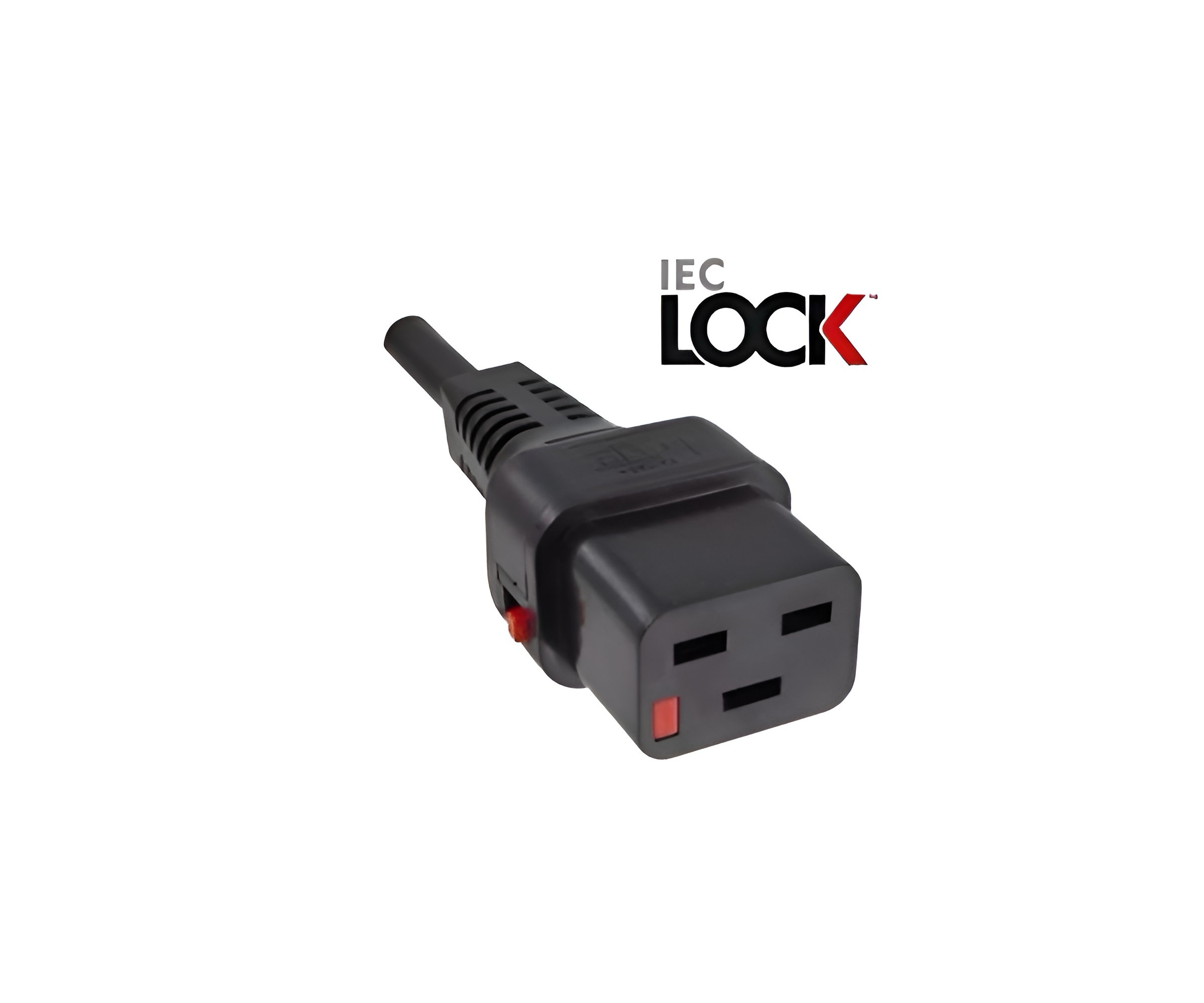

Plug C19
Cold appliance plug IEC 60320-C19 is used for power connection of devices, which do not generate heat during operation, at higher currents up to 16A.
Pull-off-proof cold device coupling protects against unintentional disconnection of the power supply for PCs, servers and other electrical devices.
- compatible with all commercially available cold-device power inputs
- protects devices susceptible to vibration
- connector cannot be removed unintentionally
- unlocking is done by pressing the red latching lever on the C19 power connector
- up to 16 A
