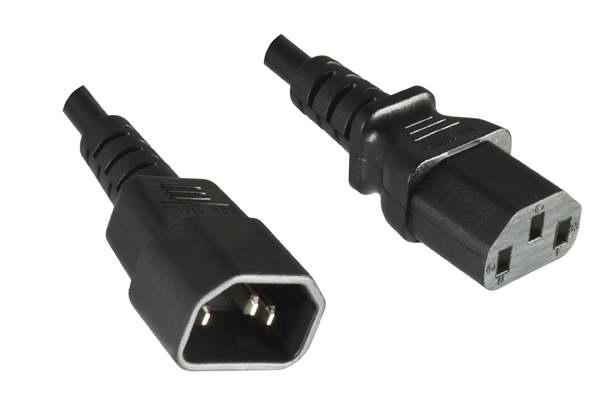

IEC 60320 C14 (plug) → C13 (coupling), 3×1.5 mm², 3.00 m, VDE/ENEC, black

Technical highlights

• Conductor cross-section 3×1.5 mm² for high current reserves
• IEC 60320: C14 (appliance plug) to C13 (appliance coupler) - extension
• Cable type H05VV-F, black sheath
• Tested: VDE (ENEC 10)
• Protection class IP20 (indoor use)
• Length 3.00 m, colour black

Cable description

IEC extension cable with extended conductor cross-section for applications with increased power requirements or longer supply cables. C14 to C13 in accordance with IEC 60320 enables standard-compliant extension between the power supply (e.g. PDU/UPS) and the end device. The H05VV-F cable type used and the VDE/ENEC test support professional use in the IT and technology environment.

Areas of application

• Data centre and server/network environments (PDU ↔ server/storage/switch)
• UPS systems, measurement technology, laboratory and test environments
• Indoor media, event and control technology

Technical data

Item number	CB-K-Q150-3M
Cable / material	H05VV-F, 3 cores
Core cross-section	3×1.5 mm²
Cable length	3,00 m
Connection A	IEC 60320 C14, appliance plug (male)
Connection B	IEC 60320 C13, appliance coupler (female)
colour	Black colour
Protection class	IP20 (dry, indoor area)
Approval / testing	VDE (ENEC 10, Europe)
Packaging	Bulk (without outer packaging)
Brand name	DINIC (MAG GmbH)

Compatibility

• Suitable for devices/PDUs/UPSs with IEC 60320 C14 inlet or C13 outlet
• Mechanically and electrically compatible with IEC 60320 C13/C14 interfaces
• Not for outdoor use or damp rooms (IP20)

Scope of delivery

1× IEC cable C14 → C13, 3×1.5 mm², 3.00 m, black

DINIC is a proprietary brand of MAG GmbH. Focus on professional connectivity solutions for IT infrastructure, industry and system houses.

Cold appliance cable C13 C14 1.5 mm² 3 m VDE ENEC H05VV-F black - DINIC MAG GmbH.
