Power cable HYBRID Japan/America USA type B to C13, AWG18, VCTF/SJT, approvals: PSE/JET/UL, black, length 1.80m

Name: Power cable HYBRID Japan/America USA type B to C13, AWG18, VCTF/SJT, approvals: PSE/JET/UL, black, length 1.80m
Brand: DINIC
SKU: CB-N-JUS
Price: 3.35 EUR
Availability: InStock

Product No.:: CB-N-JUS
Shipping time:: ca. 3-4 days
Stock:: 161 pieces
EAN:: 4032528028668
Weight:: 0.21 kg per piece

3,35 EUR

plus 19% tax

Add to wish list

Price offer

Ask about product

Description

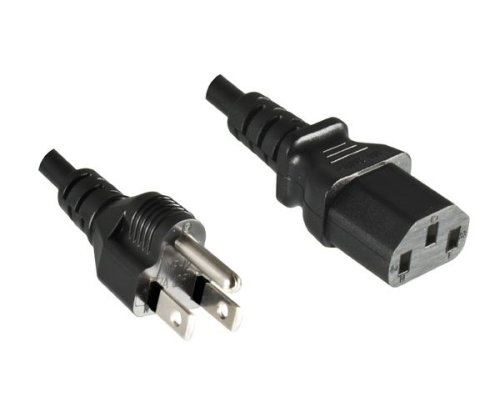

power cable HYBRID Japan America - type B to C13, 1,80m

Important Notice: Since 09/18/2015 it is required by law that Japanese plugs pass a "Tracking Test" and a "Glow Wire Flammability Test". You can find the corresponding certificates under "Downloads/Documents".

MAG Part No.: CB-N-JUS (YP-12/YC-12)

Connector: Type B to C13
Color: black
Length: 1,80m
Cross section: 3 x AWG 18 = 0.82mm² / >0.75mm²
Material: VCTF/SJT
Approval: PSE/JET/UL
RoHS compliant
Packaging: Bulk

Countries:
Japan, USA, Canada

Plug type B (YP-12)
for 110-127 V AC, 60 Hz.

Plug C13 (YC-12)
IEC 60320-C13 connector is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.

Documents
