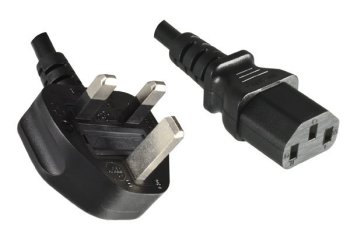

Power cable England UK LSZH - BS 1363/A to C13, 1.80m
MAG part no.: CB-N-UK-ZH
(YP-61/YC-12Z)
- Plug: UK BS1363/A to IEC60320-C13 / 3-pin
- Fuse: 10A
- Color: black
- Length: 1,80m
- Cross section: 3 x 1mm²
- Material: H05Z1Z1-F LSZH Low Smoke Zero Halogen
- Approval: ASTA
- RoHS compliant
- Packaging: Bulk
- IP 20
- Cable and plug are LSZH certified
Brand: DINIC
Manufacturer: Yung Li
UK power plug with approval for Hong Kong.
From 01/01/2021, we can only import UK plugs with Hong Kong GCC approval that have the new GCC approval logo. All products imported before this date are still valid. Details about the new logo can be found in the download section of the products affected by this change.
Countries:
United Kingdom (UK), Hong Kong, Ireland, Malaysia, Singapore, Cyprus
Plug type G also BS 1363 (YP-61)
A plug originating from Great Britain and used in the field of electrical power supply of households and generally in the low-voltage network. It is equipped with a fuse.
Plug C13 - (YC-12 )
IEC 60320-C13 cold appliance plug is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is set at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.
LSZH Low Smoke Zero Halogen
The terms Low Smoke Zero Halogen (LSZH) or Low Smoke Free of Halogen (LSFOH) are used in cabling technology for the classification of cable material. This refers to the behavior of thermoplastic materials in the event of fire, and to the flammability or flame resistance of the sheathing material of transmission cables. Low smoke means that the cable material produces little smoke in the event of a fire, and zero halogen means that it is halogen-free. In case of fire, such a cable material will not release corrosive or caustic acids.
