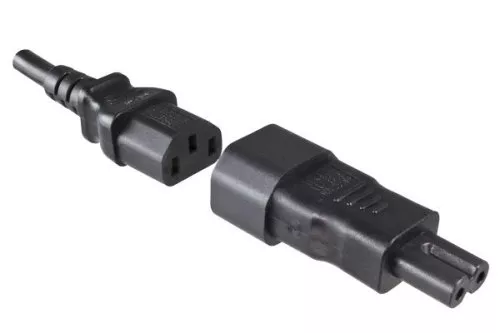

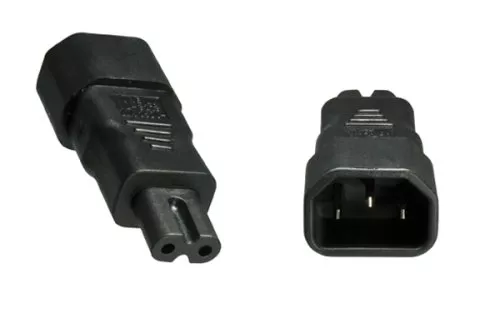

Power adapter, power adapter small device plug C7 to C14 cold device plug

Power converter, power adapter - C7 to C14

MAG Part No.: CB-A-K8-MF (YL-3213)

• Plug: IEC 60320-C7 to IEC 60320-C14 plug
• Color: black
• Approval: CE
• Packing: Bulk

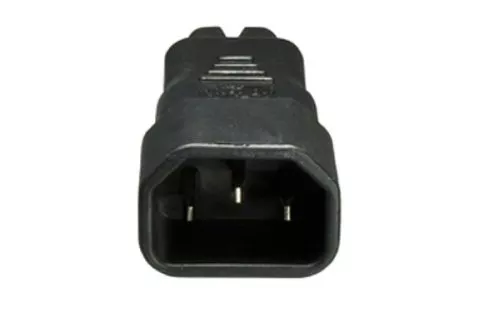

Plug C14 (YP-32)
IEC-60320 C14 cold appliance plug is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets

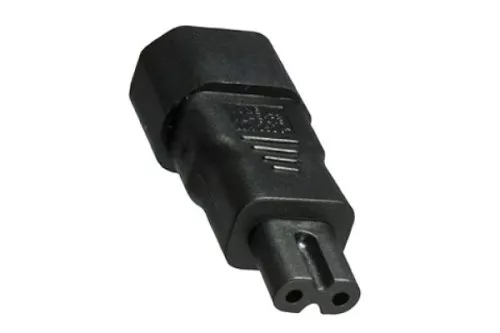

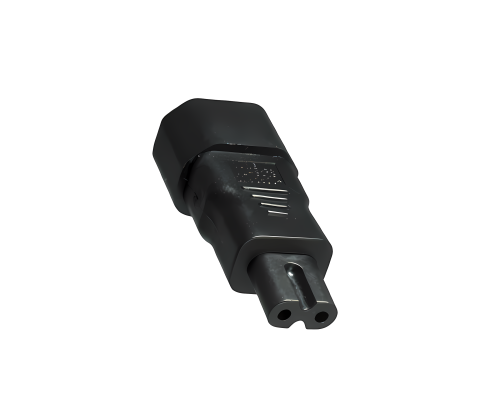

Plug C7 (YC-13)
Small appliance plug IEC 60320-C7, known as Euro or Euro 8 plug, is approved by VDE for consumption up to 2.5 A at a maximum operating temperature of 70°C.
