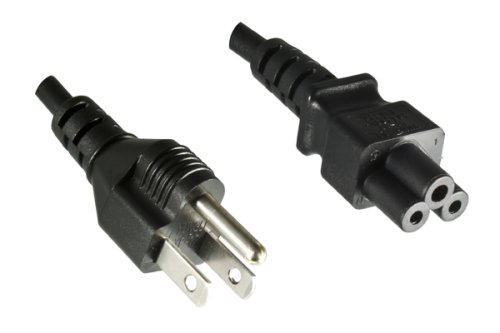

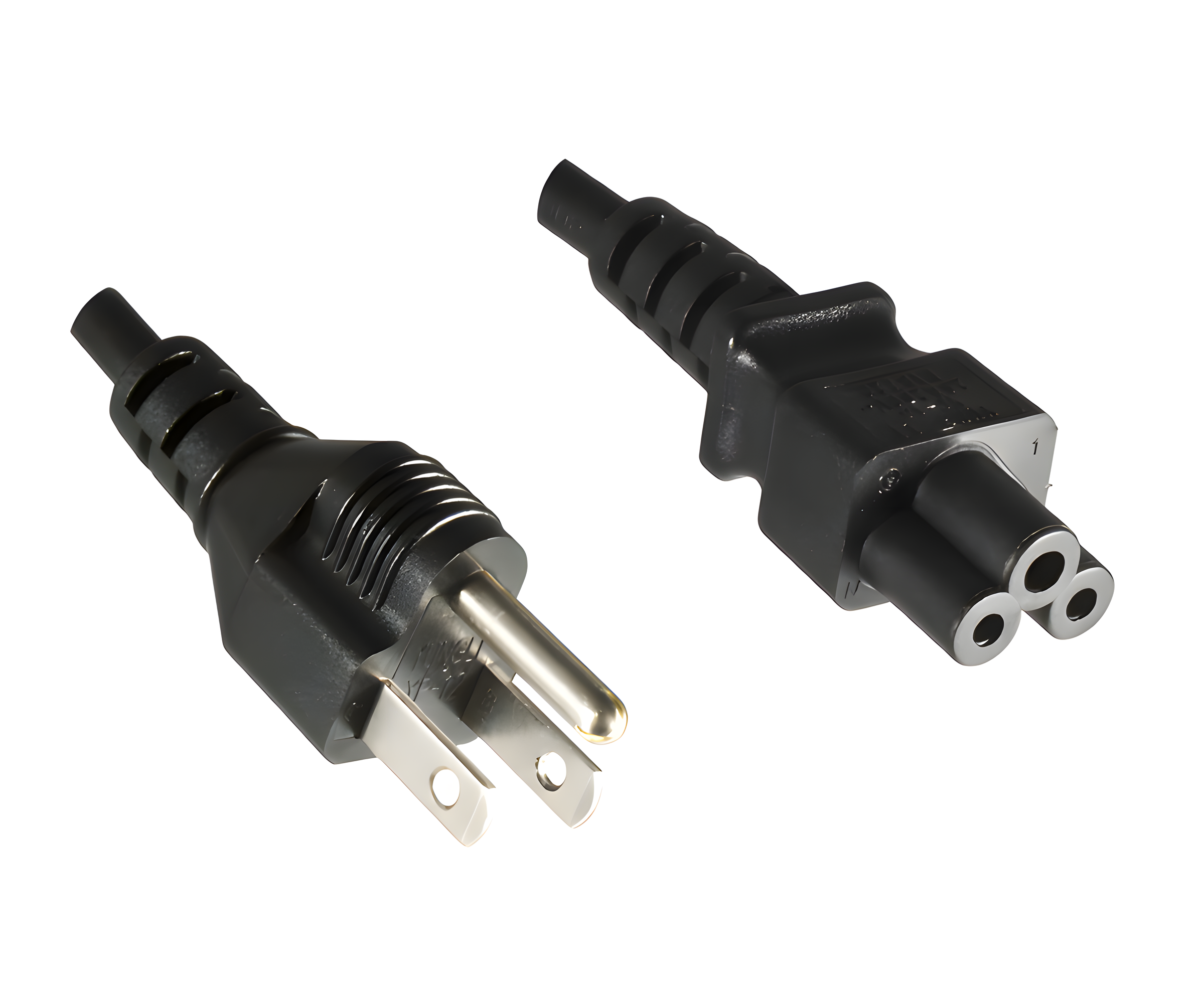

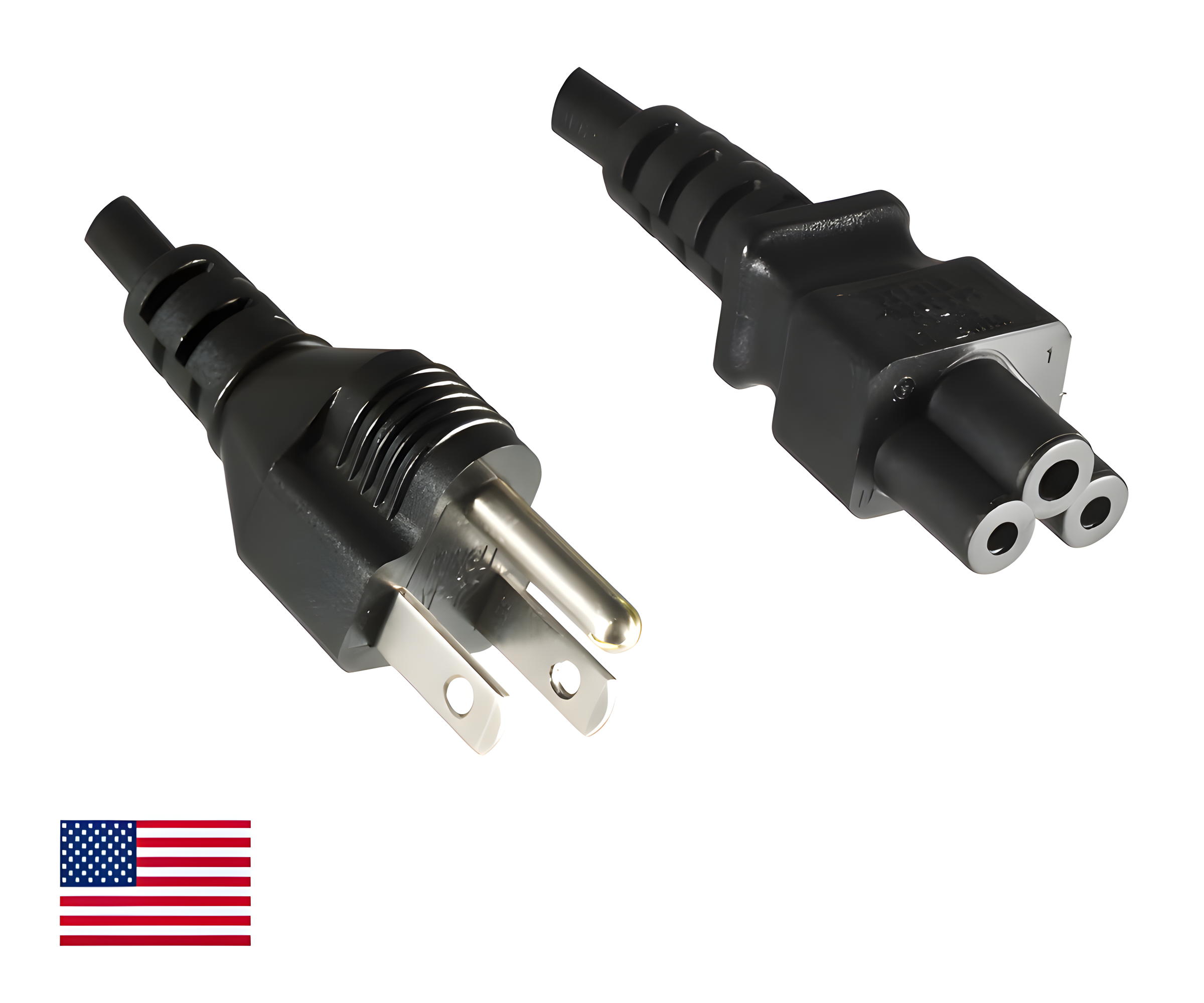

Power cable for America USA - type B to C5, black, 1.80m
MAG item no.: CB-3-US (YP-12/YC-14)
- Connector: Type B to C5
- Color: black
- Length: 1,80m
- Cross section: AWG 18
- Approval: UL, CSA
- Packaging: Bulk
- RoHS compliant
- Material: SVT
S = Service Grade (also means extra hard service when not followed by J, V or P)
V = Vacuum cleaner cord (also light duty cable)
T = Thermoplastic
Countries:
Canada, Mexico, Taiwan, USA

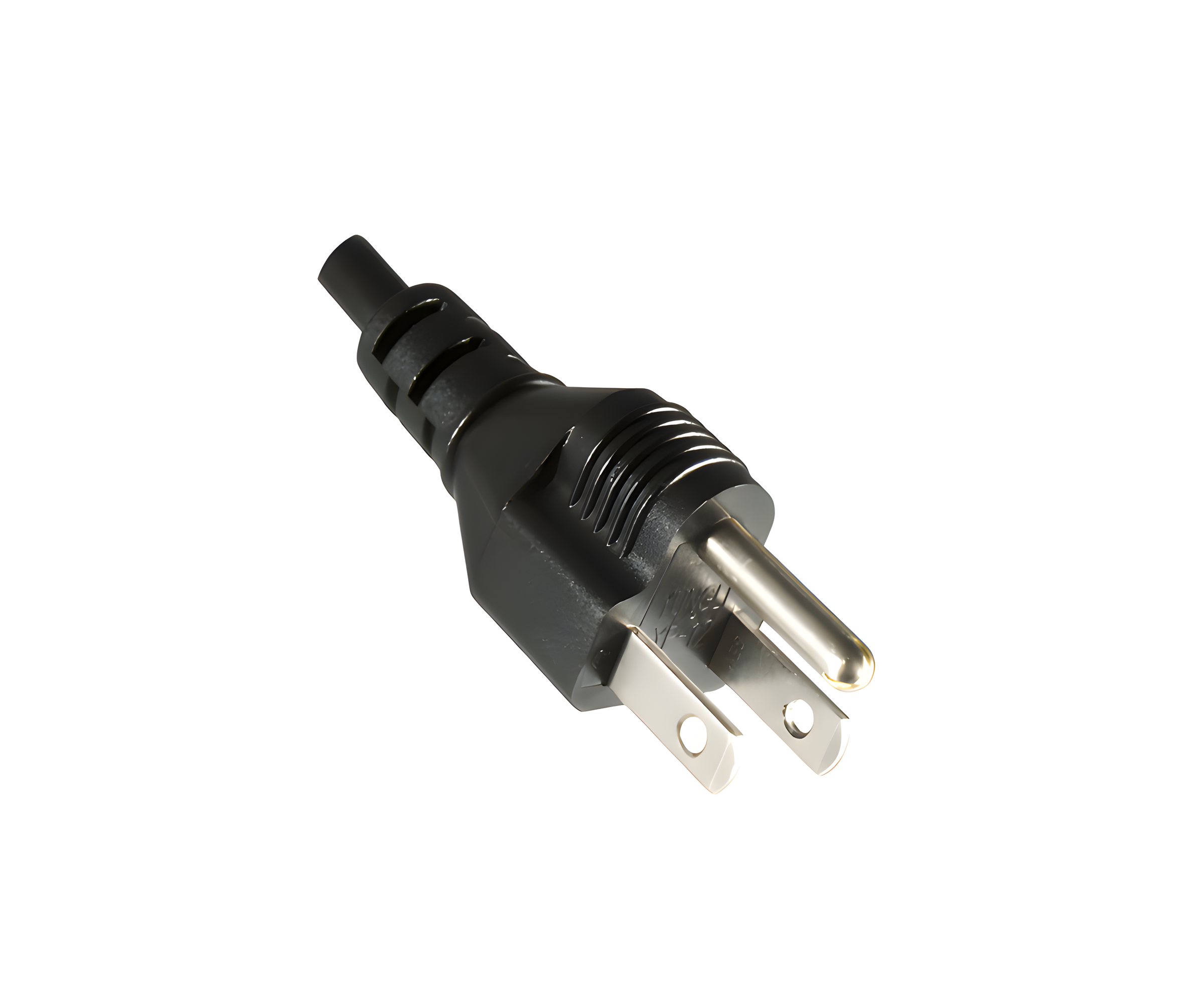

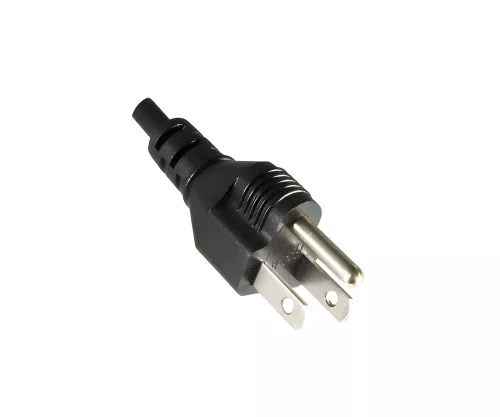

Connector type B (YP-12)
The NEMA 5-15P connector has 2 flat parallel pins for phase and neutral and a round longer pin for ground. It is used in 120V 60Hz max installations.

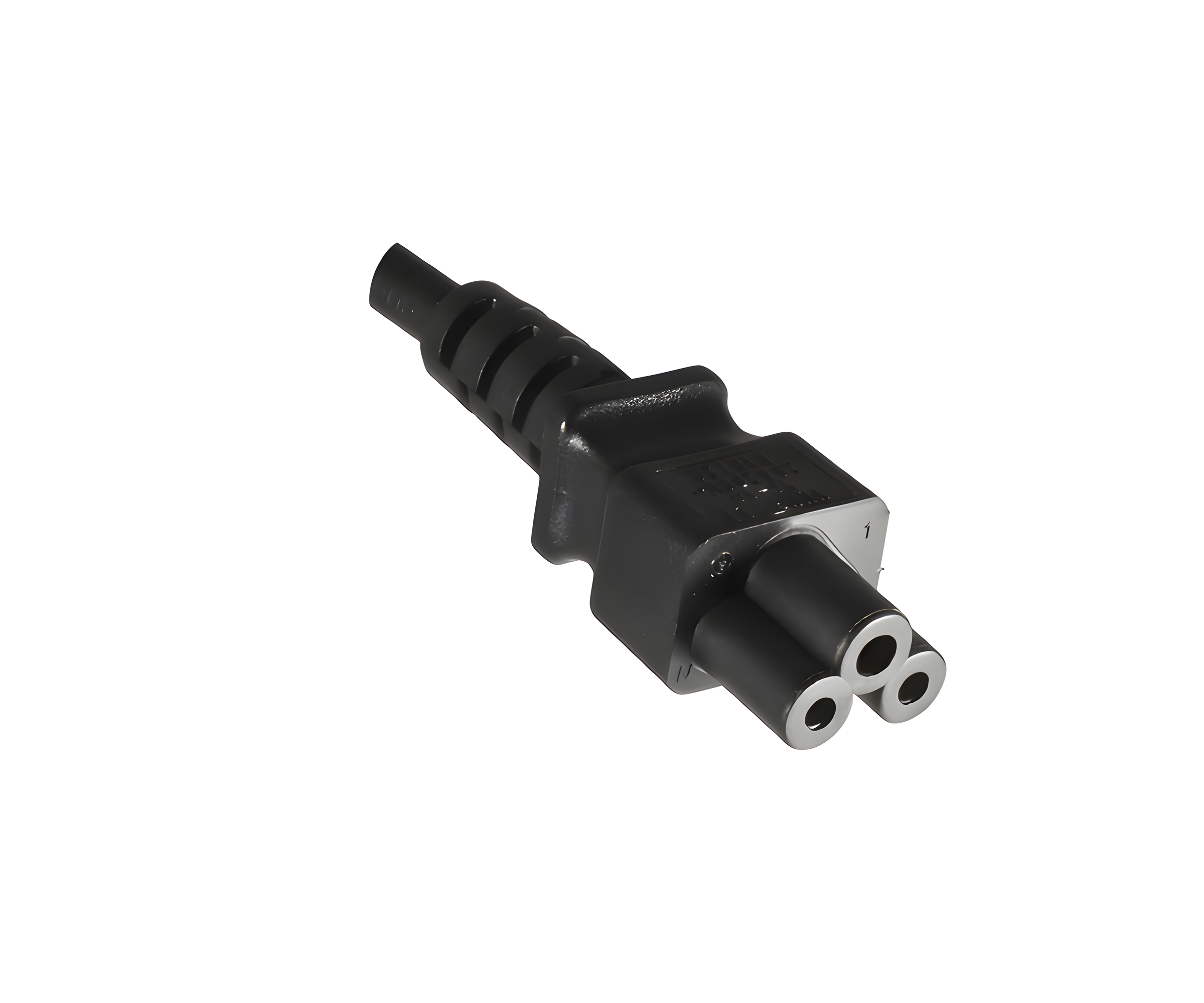

Connector C5 (YC-14)
Cloverleaf plug IEC 60320-C5, also called Mickey Mouse plug, is often used with laptop or notebook computers. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 2.5A. However, in the US, it can be certified at 2.5A, 7A or 10A.
