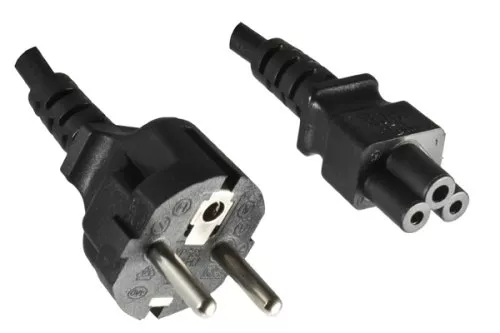

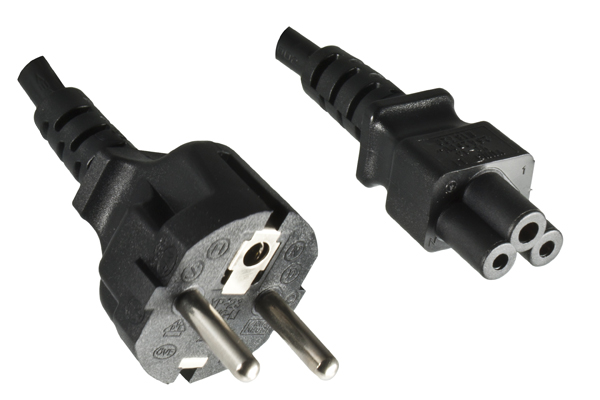

Power cable for Europe - CEE 7/7 to C5, black, 1.8m
MAG item no.: CB-3 (YP-23/YC-14)
- Plug: grounding plug E+F to C5
- Color: black
- length: 1,80m
- cross section: 3 x 0,75mm²
- Material: H05VV-F
- Approval: VDE, NF, DEMKO, FINKO, KEMA, CEBEC, OVE, IMQ, SEV, SAA
- RoHS compliant
- Packing: Bulk
Countries:
Afghanistan, Algeria, Andorra, Austria, Belgium, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Latvia, Lithuania, Luxembourg, Macedonia, Moldova, Monaco, Montenegro, Morocco, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, South Korea, Spain, Sweden, Tunisia, Ukraine.
In Syria and Turkey there is no official standard, but the grounding plug is commonly used.

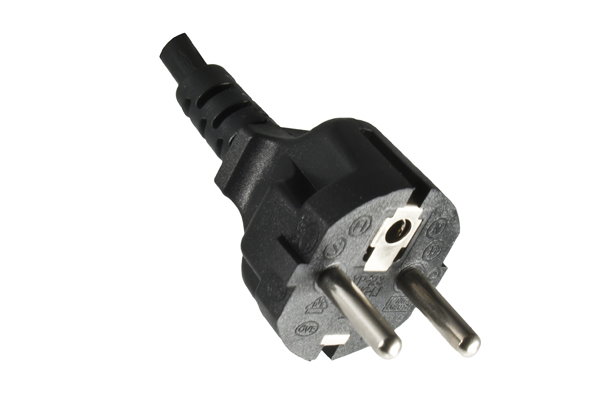

Plug type E+F CEE-7/7 system - YP-23
In the protective contact plug, two protection systems were combined in one plug, so that the grounding is done through the contact surfaces or the grounding prong (French system).

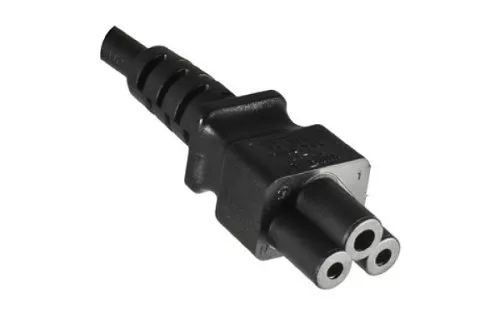

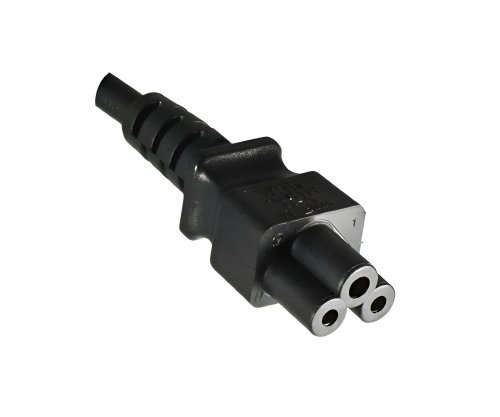

Plug C5 - YC-14
Cloverleaf plug IEC 60320-C5, also called Mickey Mouse plug, is often used with laptop or notebook computers. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 2.5 A.
