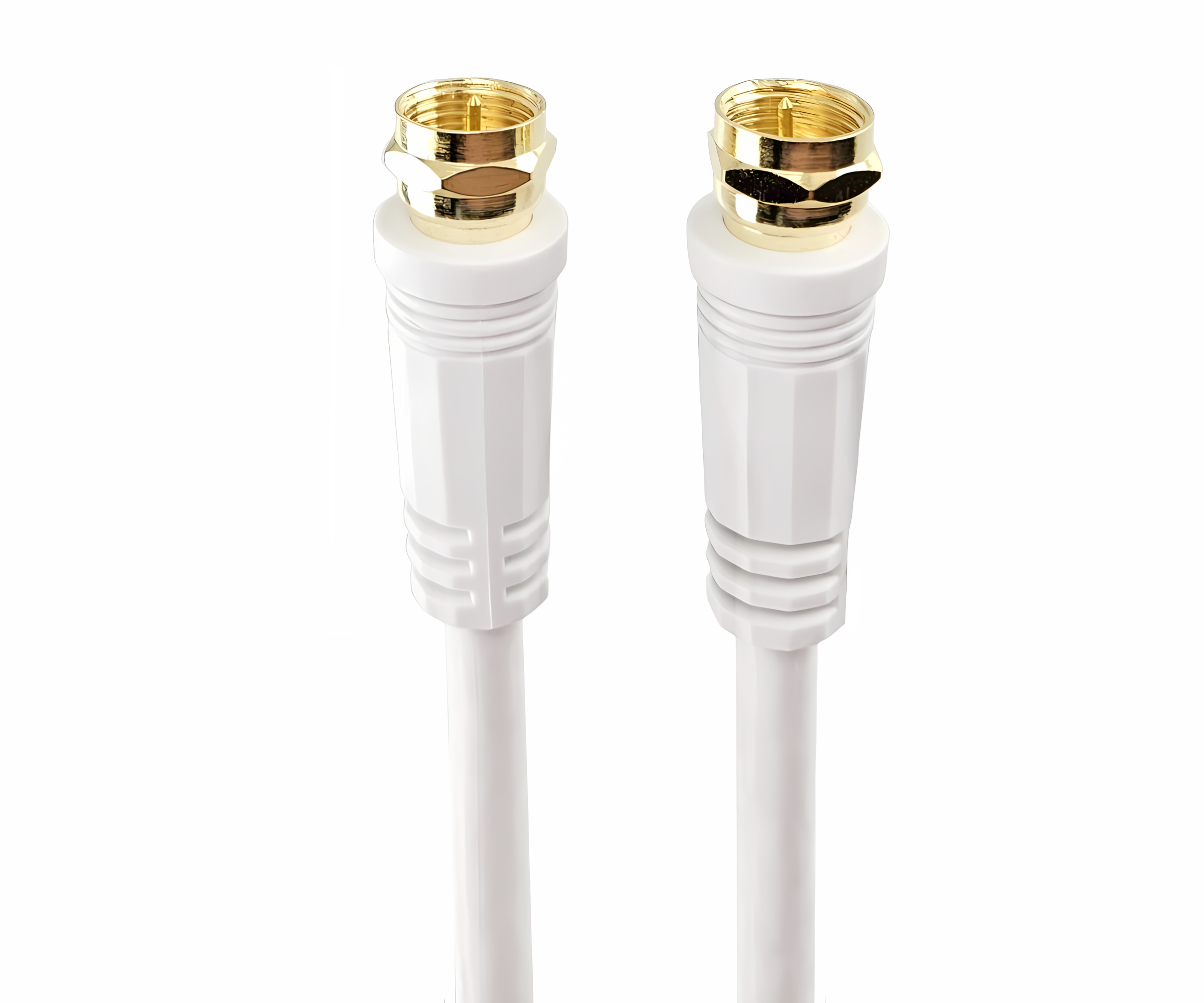

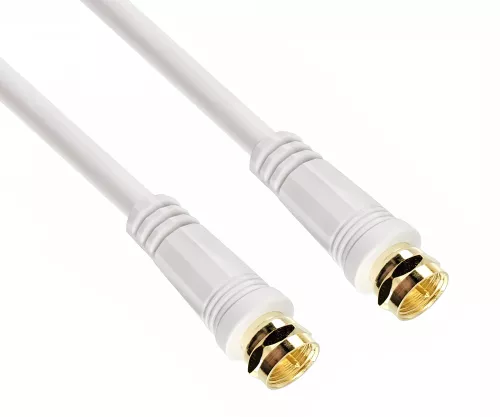

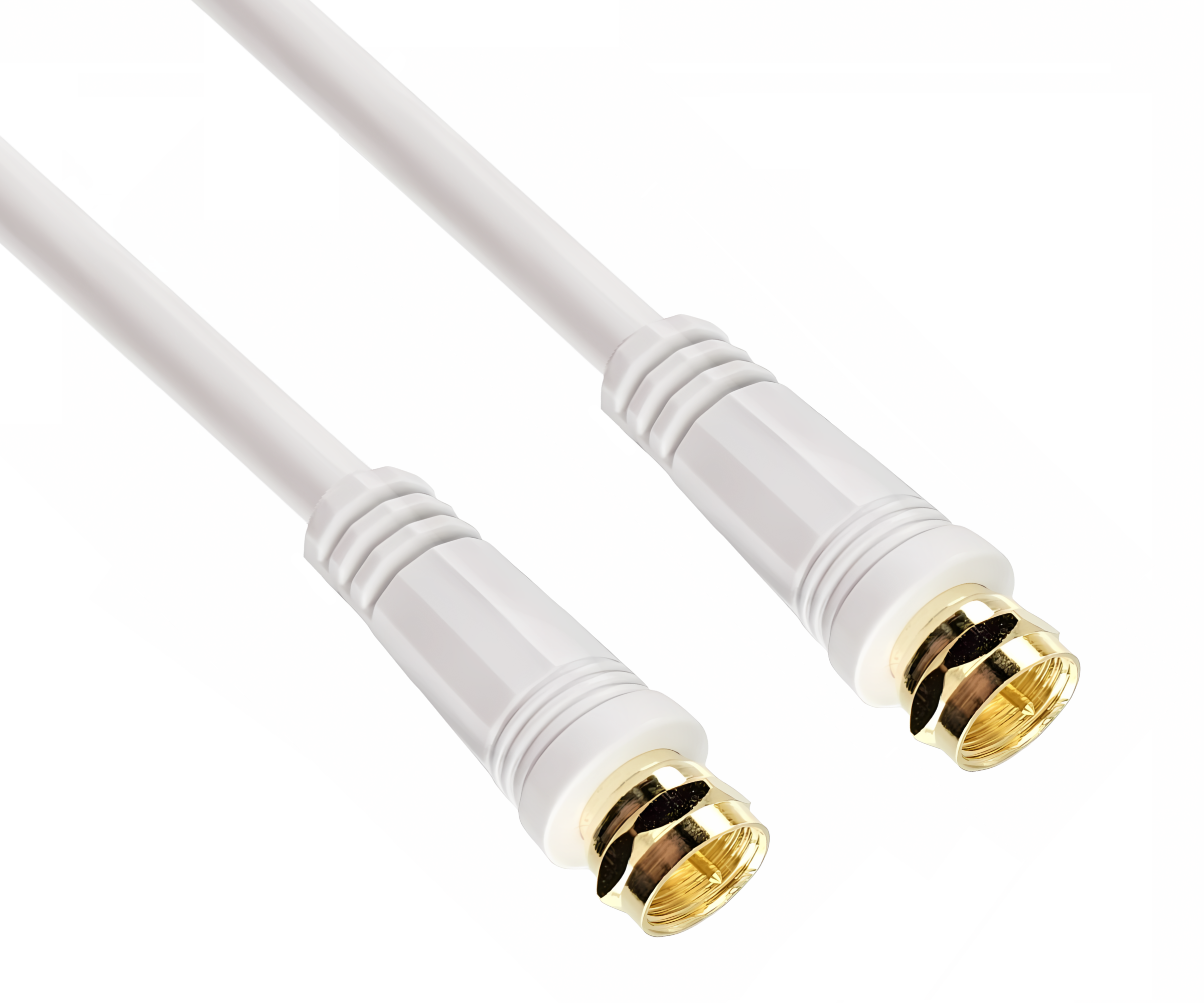

DINIC SAT coaxial cable F plug to plug, gold-plated, quadruple shielded, white, DINIC box with Euro hole, length 7.50m

DINIC premium coaxial cable - your key to unrivalled signal quality

Connect your home cinema and satellite systems with the DINIC Premium coaxial cable and enjoy impressive signal stability and quality. With a length of 7.5 metres and quadruple shielding, this cable offers a shielding attenuation of 120 dB, making it the ideal choice for demanding applications.

Advantages and applications
The DINIC coaxial cable is designed to provide optimum signal transmission, regardless of the environment. It is ideal for use in home cinema systems, satellite TV and radio, where it offers unrivalled signal stability. With its gold-plated connectors and robust construction, it is not only durable, but also ensures constant and loss-free signal transmission.

High quality construction

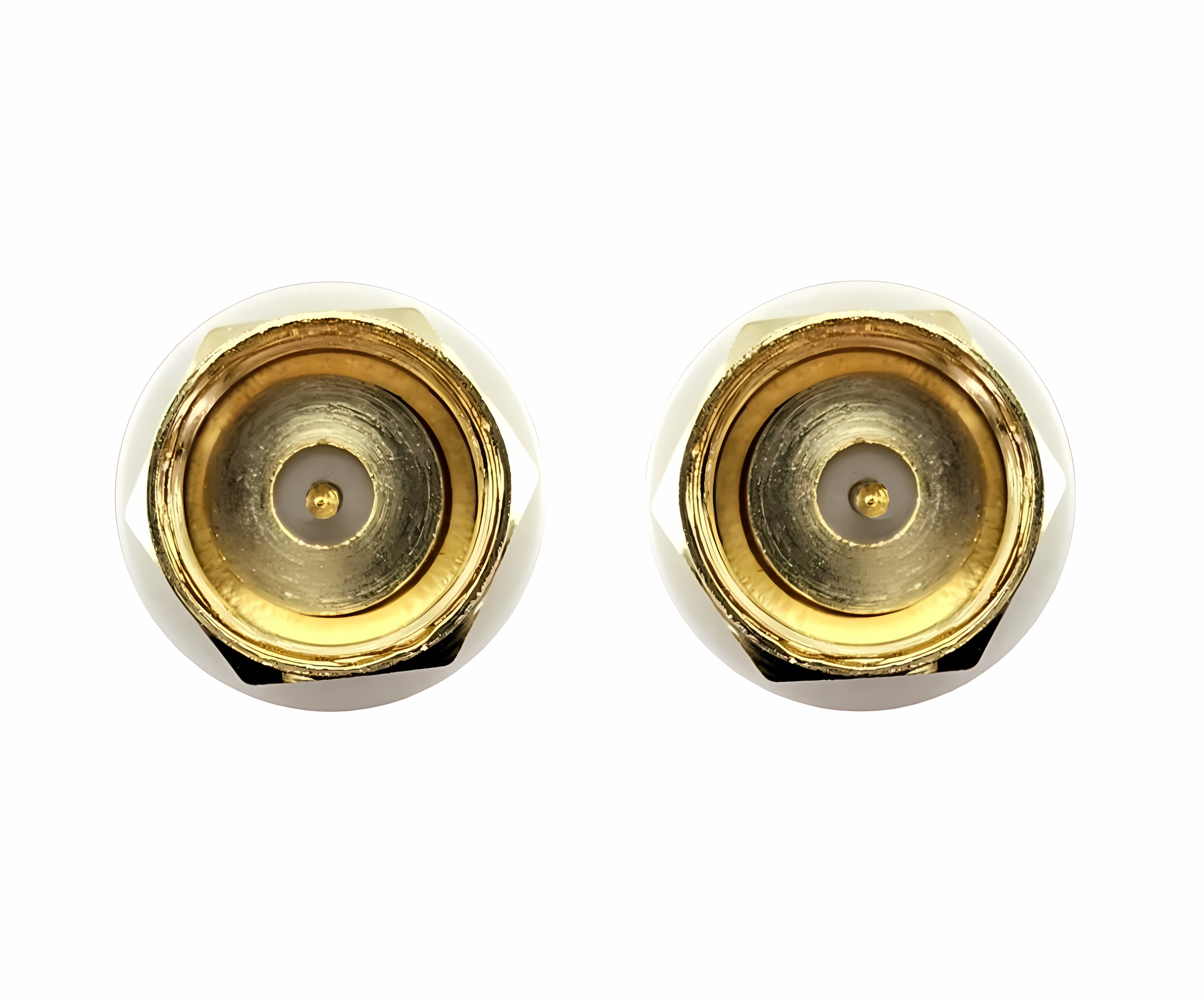

This cable has a 0.5mm CCS inner conductor and 2.9mm PE foam insulation. It has an outer diameter of 6.0mm and is quad-shielded to minimise interference and maximise signal quality. In addition, the F connectors are gold-plated to ensure the best possible connection.

Scope of delivery

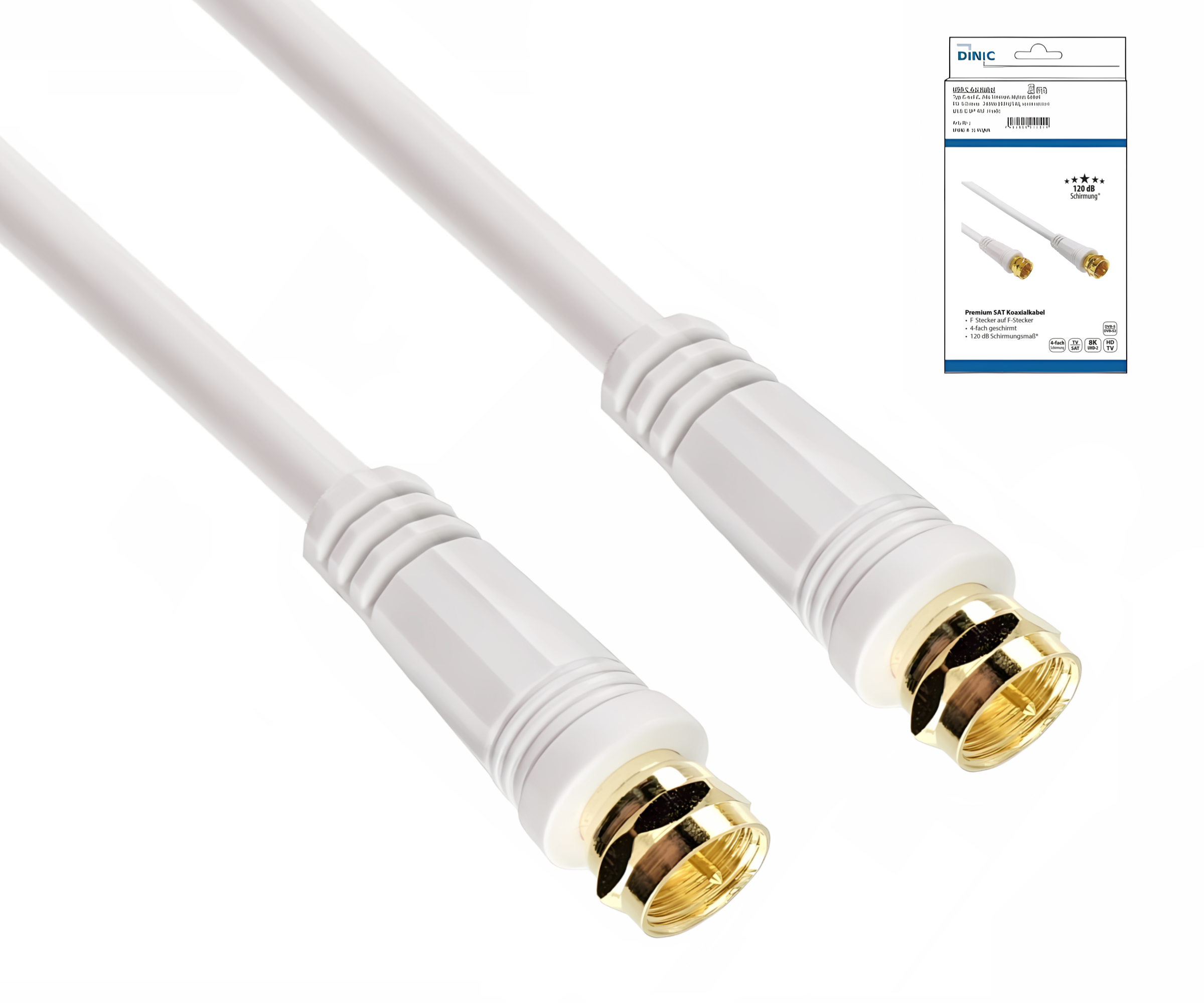

The DINIC coaxial cable is supplied in a practical DINIC box for safe transport and easy storage.

Product features

• Connection A: F plug
• Connection B: F plug
• Length: 7.5m
• Colour: White
• Quadruple shielded coaxial cable, aluminium foil shielding + braiding
• Attenuation of the shielding: 120 dB
• Inner conductor: 0.5mm CCS
• Insulation: 2.9mm foam PE
• Shield 1: aluminium foil
• Shield 2: 128/0.12Al-mg braid
• Shield 3: Al-foil
• Shield 4: 96/0.12Al-mg braid
• Outer diameter: 6.0 mm

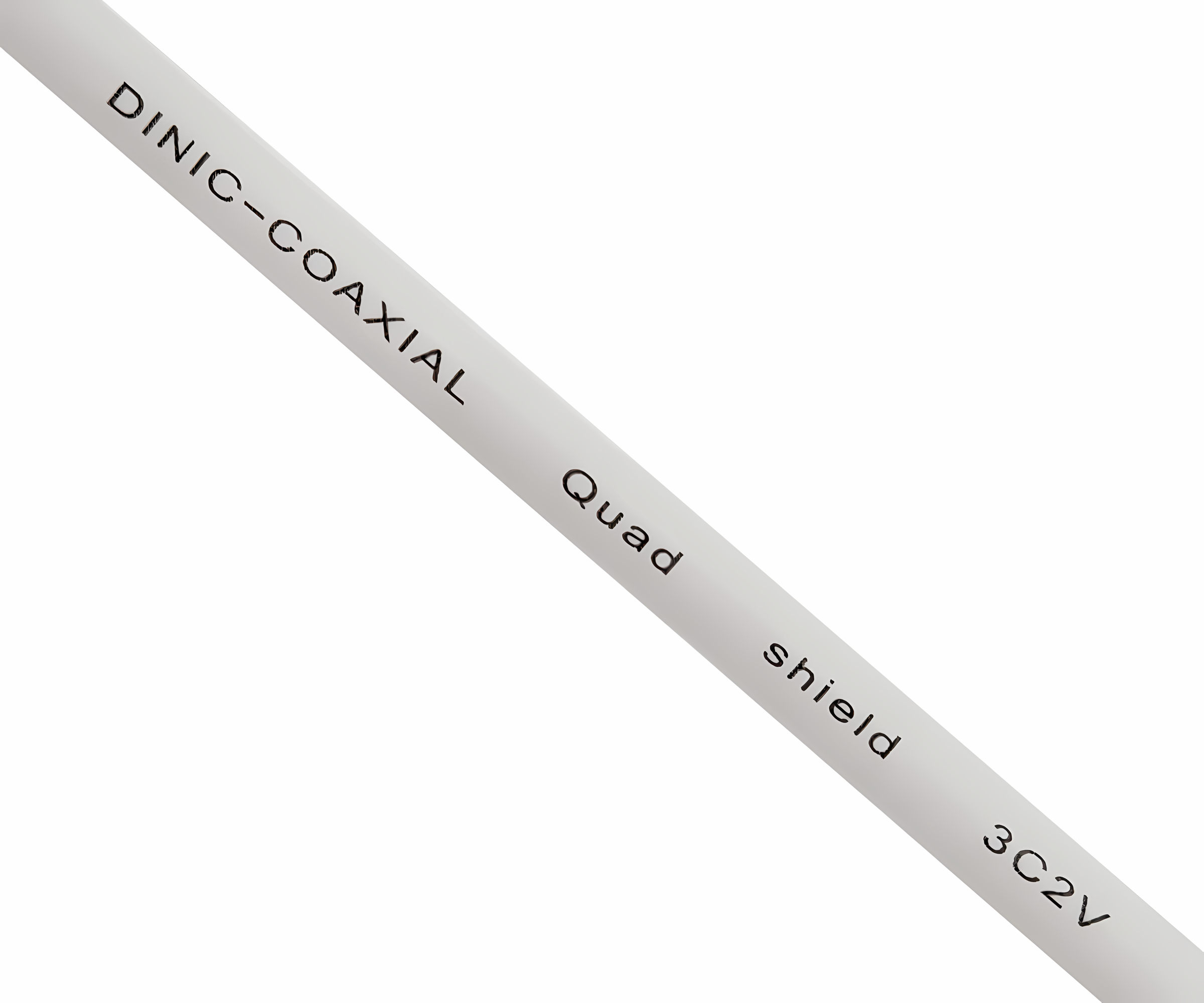

• Type: 3C2V
• Packaging: DINIC Box
