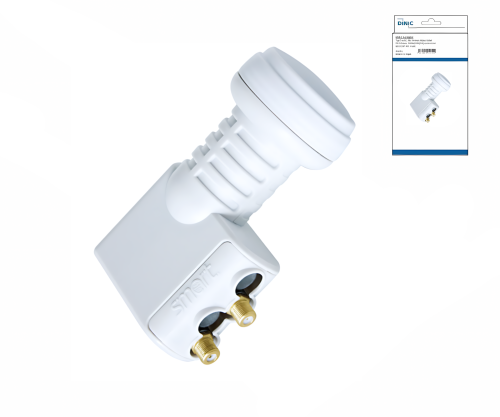

DINIC Universal Twin LNB TITANIUM 0.1dB TT Gold - For double satellite reception
Maximise your satellite reception with the DINIC Universal Twin LNB TITANIUM 0.1dB TT Gold. This twin LNB is specially designed for connection to two different digital receivers and can receive both the low and high band of satellite frequencies. Thanks to its gold contacts, it guarantees optimum signal transmission.
Performance features:
- Universal Twin-TT
- Control signal Ca Vertical 11.0 ~ 14.2 V
- Control signal Cb Horiz. 15.5 ~ 21 V
- Control signal Cc Band 22 +/- 4 kHz
- Current consumption max. 200 mA
- Noise figure 0.1dB
- Conversion gain 50 dB
- Operating temperature -40 ~ +60 °C
- F-type connection
Packaging: DINIC box with Euro hole hanger
The noise figure and its meaning
One of the most important characteristics of an LNB is the noise figure - this is usually between 0.1dB and 0.9dB. The noise figure defines the picture and sound quality that is passed on to the receiver. The lower the noise figure, the better the quality.
Premium LNBs from DINIC are naturally orientated towards the best possible measurement of 0.1dB.
The twin LNB
The connections of the LNB are connected directly to two different receivers or televisions with an integrated receiver. No additional multi-switch is required.
