DINIC Universal Quad-Switch LNB TITANIUM 0.1 dB, connection for four SAT receivers

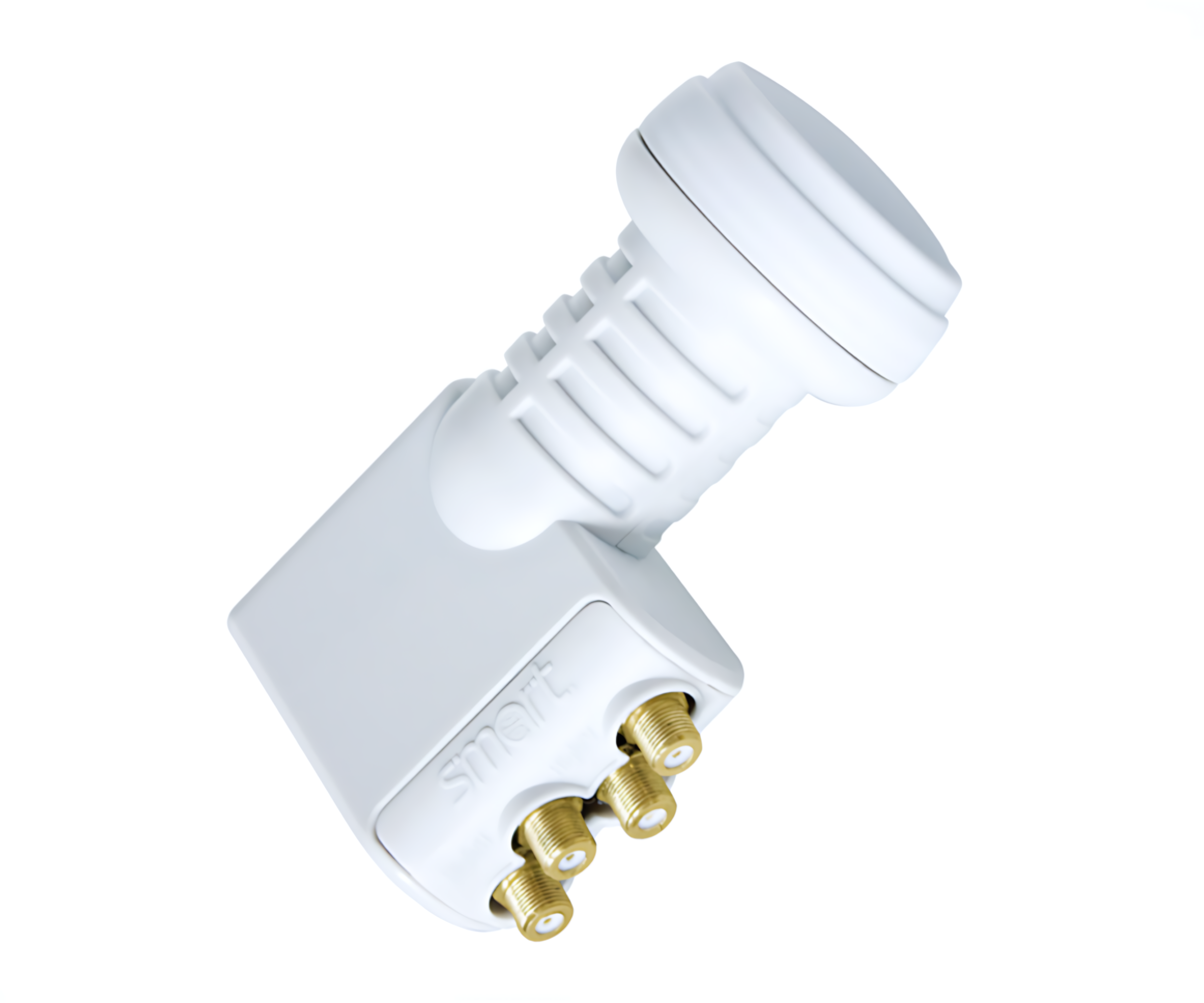

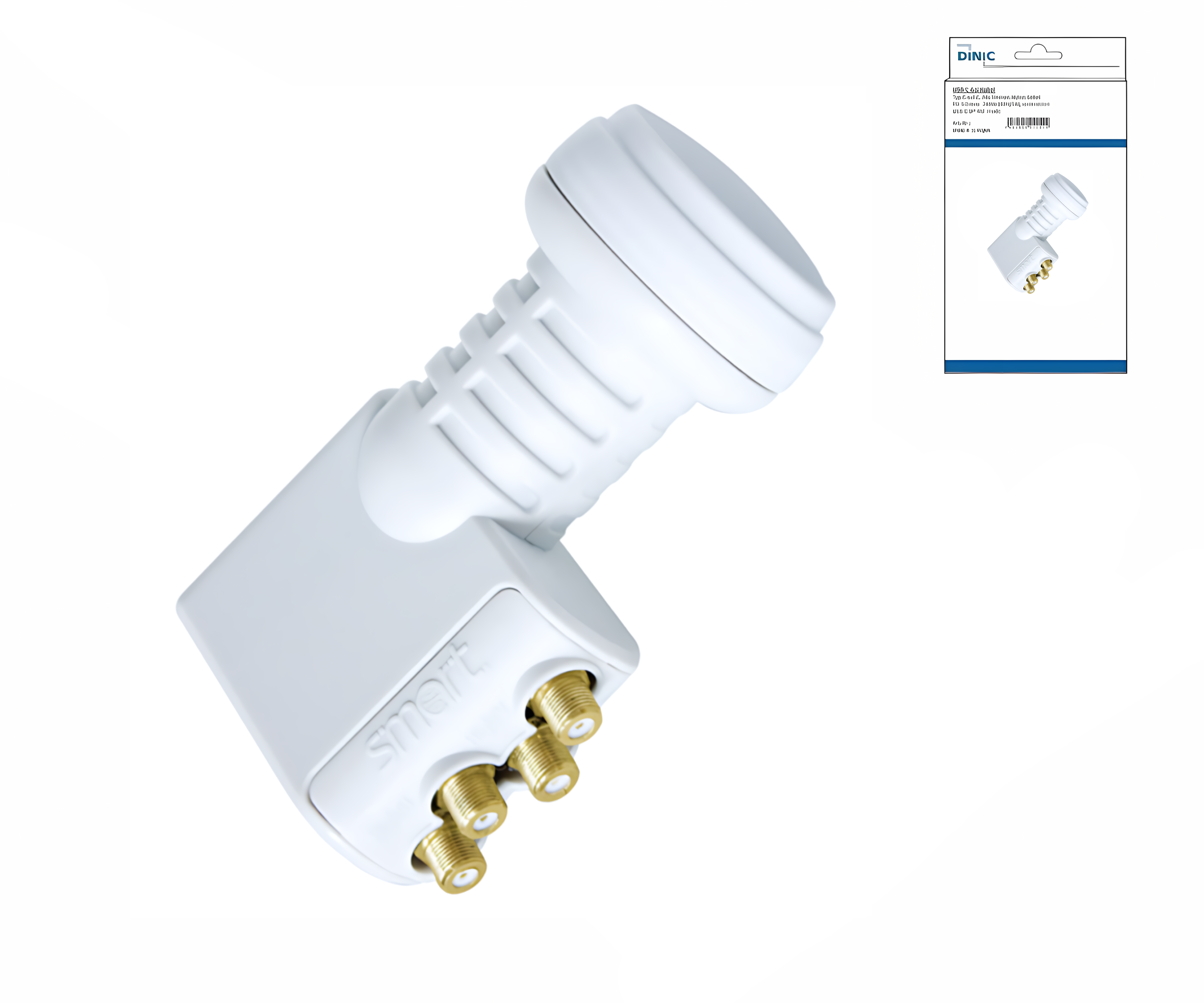

Quad LNB with integrated multiswitch, 4 F outputs, gold contacts, DINIC box with Euro hole hanger.
Technical highlights
- Universal Quad-Switch LNB TITANIUM with 0.1 dB noise figure and gold contacts
- Four independent F outputs for direct connection of up to 4 SAT receivers / DVB-S/S2 tuners
- Integrated multi-switch (quad-switch) - no external multi-switch required
- Low/high band reception, control via 11.0-14.2 V (vertical), 15.5-21 V (horizontal) and 22 kHz
- Conversion gain approx. 50 dB for stable signal levels in typical house distributions
- Operating temperature range -40 to +60 °C, suitable for permanent outdoor use
- Feed diameter 40 mm for standard offset parabolic antennas
- Packaged in DINIC box with Euro hole - suitable for storage and display hooks
description
The DINIC Universal Quad-Switch LNB TITANIUM 0.1 dB is designed for professional SAT installations in which up to four subscribers are to be supplied directly from one mirror. The integrated multiswitch (Quad-Switch) allows the direct connection of four SAT receivers or end devices with integrated DVB-S/S2 tuner, without additional distribution components such as external multiswitches.
The very low noise figure of 0.1 dB in combination with the conversion gain of around 50 dB ensures high transmission quality even with longer coaxial lines or less than ideal reception conditions. The switching of polarisation and band is standardised via the control voltages 11.0-14.2 V (vertical) and 15.5-21 V (horizontal) as well as the 22 kHz signal for high-band switching.
The gold-plated F-contacts reduce contact resistance and provide additional corrosion protection, which increases the long-term stability of the connection. The robust weatherproof housing is designed for permanent outdoor use and enables reliable use in the extended temperature range of -40 to +60 °C.
Thanks to the feed diameter of 40 mm, the LNB can be used with standard offset parabolic aerials in the SAT trade. The product is conveniently packaged in the DINIC box with Euro hole hanger for storage, counter presentation and servicing in the field.
Areas of application
- Satellite reception systems for small to medium-sized office and commercial properties
- Multi-user systems with up to four SAT users (e.g. practices, law firms, smaller residential properties)
- Stand-alone SAT distributions in technical rooms, server cabinets or system installations
- Project business for electrical installation companies, system houses and aerial construction companies
- Retrofitting or replacing existing quad LNBs in existing systems
Technical data
| Product type |
Universal Quad-Switch LNB (integrated multi-switch) |
| Item number MAG |
LNB-4KB |
| Participants / outputs |
4 x F socket (quad version) |
| Noise figure |
0.1 dB (typ.) |
| Input frequency |
10.70-11.70 GHz (low band), 11.70-12.75 GHz (high band) |
| Oscillator frequency (LO) |
9.75 / 10.6 GHz (low/high band) |
| Output frequency range (IF) |
950-1950 MHz |
| Control signals |
11.0-14.2 V (vertical), 15.5-21 V (horizontal), 22 kHz (band switching) |
| LNB current consumption |
max. approx. 200 mA |
| Conversion gain |
approx. 50 dB |
| Connection type |
F socket, gold contacts |
| Feed diameter |
40 mm (standard feed mount) |
| Operating temperature |
-40 to +60 °C |
| Colour/housing |
Light grey weatherproof housing |
| Packaging |
DINIC box with Euro hole hanger |
Compatibility
Suitable for use with standard SAT offset mirrors with 40 mm LNB mount and coax cabling via F connectors. The Quad-Switch LNB can be used directly with the following device types:
- SAT receivers with DVB-S/S2 tuner (single receivers or set-top boxes)
- Televisions with integrated DVB-S/S2 receiver
- Compact SAT distribution systems in small distribution networks without additional multi-switches
Scope of delivery
- 1 × Universal Quad-Switch LNB TITANIUM, 4 outputs
- Packed in DINIC box with Euro hole hanger
DINIC is a trademark of MAG GmbH.
Keywords: Quad-Switch LNB, Universal Quad LNB 0.1 dB, 4 participants, SAT LNB F-connector, DINIC TITANIUM Gold.
