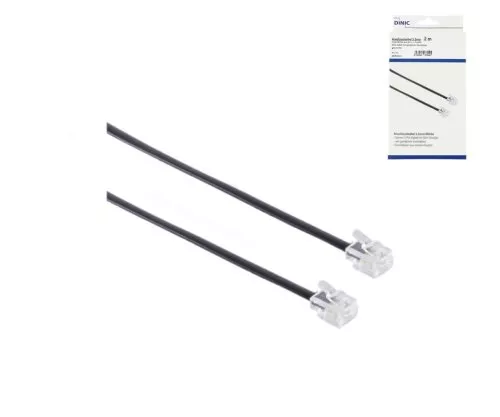

DINIC modular connection cable RJ11 (6P4C) to RJ11 (6P4C), 3.0 m, AWG 28, flat cable
Flat RJ11 modular cable for telephone and telecommunications applications
Technical highlights
- RJ11 plug (6P4C) to RJ11 plug (6P4C), modular on both sides
- Flat cable design for easy installation on and under surfaces
- Length: 3.0 m
- Inner conductor made of copper-clad aluminium (CCA)
- Conductor cross-section AWG 28 for typical telephone and signalling applications
- 4-wire 6P4C assignment for analogue telephone and modem connections
- Packaged in DINIC box, suitable for storage and sales shelves
Cable description
The DINIC modular connection cable with RJ11 plugs (6P4C) on both ends is designed for connecting telephone and telecommunication devices. The 4-wire 6P4C assignment covers typical analogue telephone lines, modem or router line ports as well as connections to telecommunications systems.
The flat cable design makes it easy to lay in cable ducts, along skirting boards or on the floor, where round cables are often exposed. This makes the cable suitable for structured, space-saving installations in office and technical areas.
With AWG 28 conductors made of copper-clad aluminium (CCA), the cable offers reliable transmission for voice and control signals in the telecommunications environment. The RJ11 plugs on both ends enable quick, tool-free connection to suitable modular sockets.
Delivery in the compact DINIC box supports clear storage and labelling in specialist shops or in your own technical warehouse.
Areas of application
- Connection of analogue telephones to RJ11 sockets
- Connection of modems or routers with RJ11 line port
- Patch and connection lines in telecommunications systems and extensions
- Telephone and signalling lines in office and administration buildings
- System integration and commissioning of telecommunication components
Technical data
| Product type |
Modular connection cable / RJ11 telephone cable |
| Plug connector 1 |
RJ11 plug (6P4C) |
| Plug connector 2 |
RJ11 plug (6P4C) |
| Assignment |
6 positions, 4 contacts (6P4C), 4-wire |
| Cable length |
3,0 m |
| Cable design |
Flat cable |
| Conductor material |
Copper-clad aluminium (CCA) |
| Conductor cross-section |
AWG 28 |
| Category |
Telecommunication / telephone cable |
| Packaging |
DINIC Box |
| Part Number |
T-RJ1111-3-KB |
| EAN CODE |
4032528039626 |
| Weight of |
approx. 0.065 kg per piece |
Compatibility
Designed for end devices and connection points with RJ11 socket (6P4C), among others:
- Analogue desk and wall telephones with RJ11 connection
- Fax machines and modems with RJ11 line port
- Routers and gateways with RJ11 telephone or line socket
- Connections to telecommunications/extension systems with RJ11 modular sockets
Scope of delivery
1 x DINIC modular connection cable RJ11 (6P4C) to RJ11 (6P4C), flat cable, length 3.0 m, in DINIC box.
DINIC is a trademark of MAG GmbH, 38268 Lengede.
Keywords: RJ11 modular cordset 6P4C, telephone cable 3m, flat cable, AWG 28, DINIC, telecommunication
