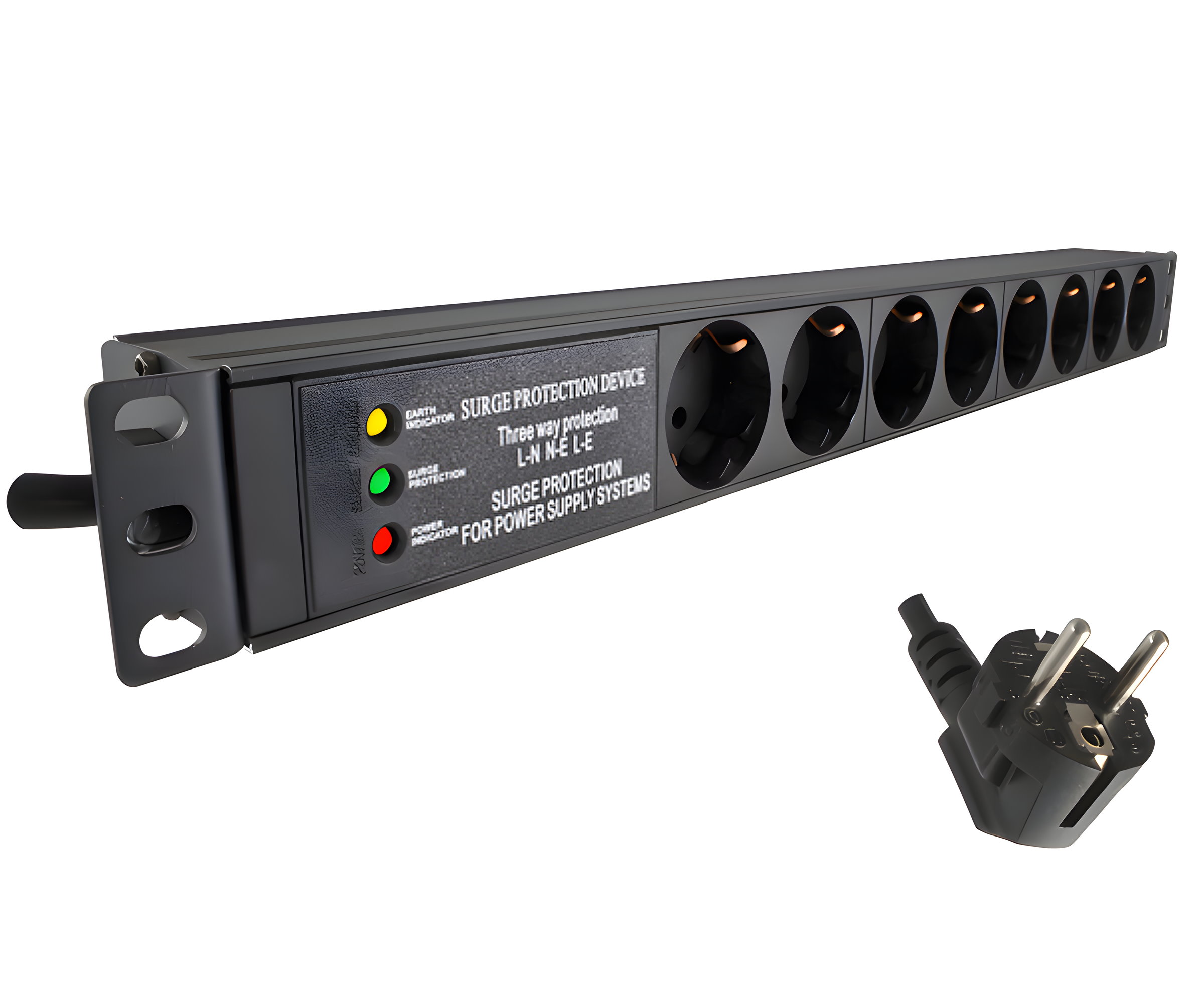

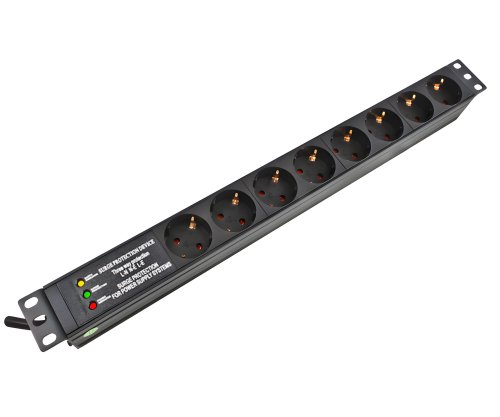

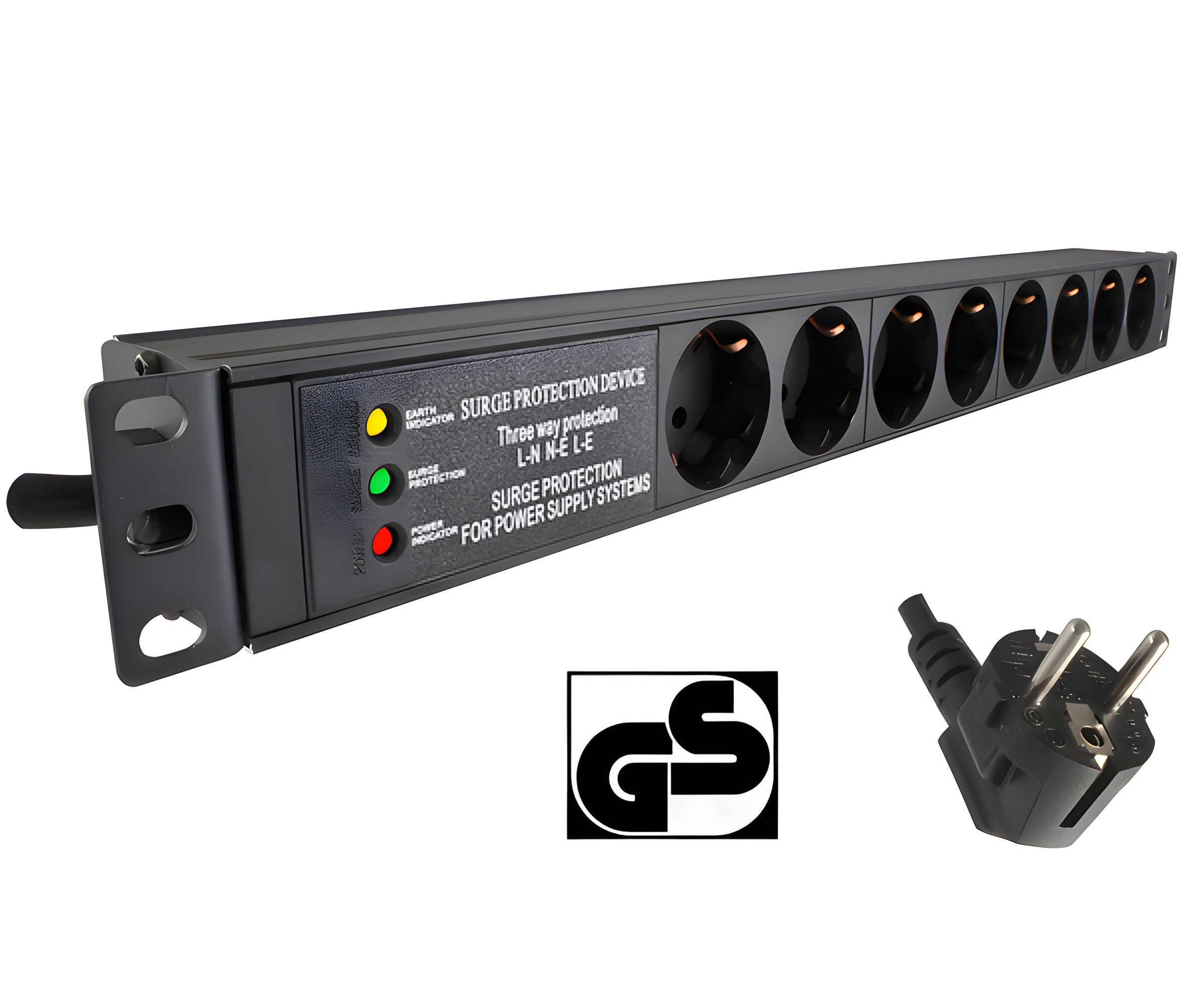

19-inch socket strip aluminium, 8-way, overvoltage protection, LED, GS, black, cable length 1.80m

8-way 19-inch socket strip, overvoltage protection, LED

Connection cable

• Plug: earthing contact E+F 90° angled
• Colour: black
• Length: 1.80m
• Cross-section: 3 x 1.5mm²
• Material: H05VV-F

Socket strip

• 8x protective contact socket
• Colour: black
• Overload protection:16A
• LED: Power, overvoltage, earth
• Material: Aluminium
• Approval: CE, GS
• RoHS compliant

Overvoltage protection unit

• Rated voltage: 250VAC 50/60Hz
• Rated load current: 16A
• Max. Power Pmax: 4000W
• Max. Continuous operating voltage Uc: 320VAC
• Measured limit voltage Ur: <1000V
• Rated leakage current (8/20mS) In: 10KA
• Voltage protection level Up: <1000V
• Response time tA: <25nS
• Protection class: L-N L-PE N-PE
• Fire resistance: up to UL 94V-0
• Operating temperature: -40°C~+70°C
• Relative humidity: =95%

LED

Earth Indicator

If the yellow LED does not light up, this means that there is no contact to earth in the power grid. CAUTION - Risk of electric shock

Surge protection -Overvoltage protection

When the green LED lights up, the surge protection is active and functional.

Power indicator

If the red LED lights up, the power supply is switched on and the filter is working.
