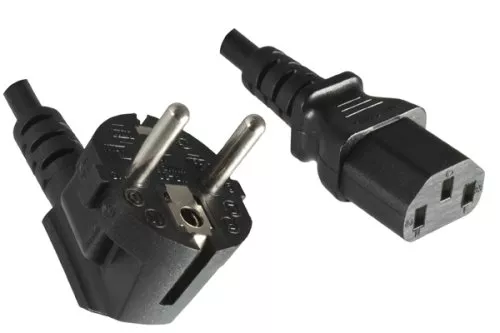

Mains cable 1.5 mm² - CEE 7/7 (Schuko) 90° to IEC 60320 C13 - VDE-certified - black - 5 m
High-performance mains connection cable with extra large cross-section 3 x 1.5 mm² (H05VV-F) for professional applications - CB-N-Q150-5M
- ✓ 3 x 1.5 mm² conductor cross-section - low line losses, reduced heating under load
- ✓ C13 appliance plug (90° angled) - space-saving relief at the appliance inlet
- ✓ CEE 7/7 earthing contact plug (E+F) - can be used throughout Europe in Schuko and type E systems
- ✓ Certifications: VDE, NF, DEMKO, NEMKO, FINKO, KEMA, CEBEC, OVE, IMQ, SEV, SAA
- ✓ Cable type H05VV-F - flexible copper conductors, PVC sheath for indoor use
- ✓ Current carrying capacity limited to 10 A/250 V~ by C13 standard - suitable for powerful IT/industrial devices
- ✓ Industrial-grade design - robust strain relief, black version, 5 m
Product description
The DINIC branded mains connection cable from MAG GmbH with an extra large conductor cross-section of 3 x 1.5 mm² ensures a stable power supply with a higher load reserve. The combination of CEE 7/7 protective contact plug and IEC 60320 C13 (90° angled) is designed for professional use in IT infrastructures and industrial environments.
Numerous international approvals (including VDE) and the flexible H05VV-F design ensure standard-compliant, reliable indoor use. The larger cross-section reduces voltage drops and minimises thermal stress - a measurable advantage over standard cables with a smaller cross-section.
Areas of application
- Server rooms & data centres - power supply for servers, switches, UPSs
- Industrial systems & production - supplying power to control systems, measurement and testing technology
- Switch cabinet construction - C13 feeds with 90° outlet and low installation depth
- Office environments & workstations - high-performance IT peripherals
- Laboratory/test environment - stable power supply for longer operating times
Technical data
| Article number (SKU) |
CB-N-Q150 |
| Brand name |
DINIC (a brand of MAG GmbH) |
| EAN CODE |
4032528025513 |
| length |
5,00 m |
| colour |
Black colour |
| Mains plug |
CEE 7/7 earthing contact (type E/F), 250 V~ |
| Appliance plug |
IEC 60320 C13, 90° angled, 10 A/250 V~ |
| Cable type / construction |
H05VV-F, 3 cores, finely stranded copper conductors |
| Conductor cross-section |
3 x 1.5 mm² |
| Rated voltage / frequency |
up to 250 V~ / 50-60 Hz (defined by C13) |
| Approvals |
VDE, NF, DEMKO, NEMKO, FINKO, KEMA, CEBEC, OVE, IMQ, SEV, SAA |
| Weight |
approx. 0.28 kg/each |
| Packaging |
Bulk (without individual packaging) |
Compatibility: For devices and infrastructures with IEC 60320-C14 inlet (e.g. servers, switches, UPS/PDU outlets, industrial IT, measurement technology). Suitable for earthed/type E sockets (CEE 7/3, CEE 7/5) via CEE 7/7 plugs.
Notes: Current consumption of the overall connection limited to 10 A by the C13 plug as standard. For use in dry indoor areas (H05VV-F). Observe national installation regulations.
Scope of delivery: 1 x power cable CEE 7/7 90° to IEC 60320 C13, 1.80 m, black
DINIC - Connection technology for specialised trade & industry (MAG GmbH)
Power cable 1.5mm², CEE 7/7 to C13, VDE-certified, H05VV-F, 1.80m, Schuko to C13, DINIC, MAG cable, IEC 60320, industrial power cable, data centre power cable
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Safety Information:
Use only under direct adult supervision
