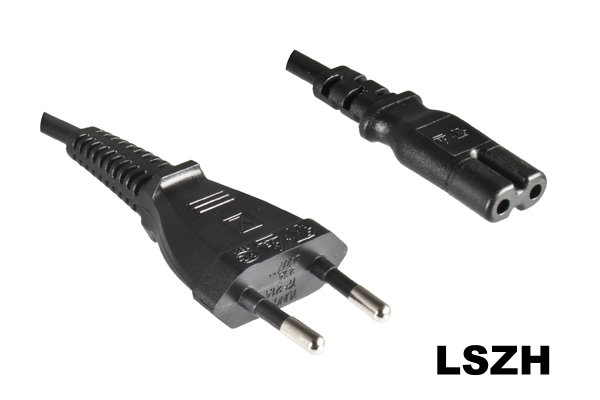

LSZH Power cable - Euro plug to C7, black, halogen-free, 1.8m
MAG part no.: CB-8-ZH (YP-21Z/YC-13Z)
- Plug: Euro plug to C7
- Color: black
- length: 1,80m
- cross section: 2 x 0,75mm²
- Material: H03Z1Z1H2-F
- Approval: VDE, ENEC
- RoHS compliant
- Packing: Bulk
- Cable and plug are LSZH certified
Countries:
Most of Europe and various other countries in the world.
Plug type C
Also referred to as a Europlug, and is defined by CENELEC Standard EN 50075 as "a flat molded two-pin plug, 2.5A/250V, with cord for the connection of Class II (Class II) equipment for household or similar purposes." There are many nationally compatible counterparts in the world.
Plug C7
Small appliance plug IEC 60320-C7, known as Euro or Euro 8 plug, is approved by VDE for consumption up to 2.5A at a maximum operating temperature of 70°C.
LSZH Low Smoke Zero Halogen
The terms Low Smoke Zero Halogen (LSZH) or Low Smoke Free of Halogen (LSFOH) are used in cabling technology for the classification of cable material. This refers to the behavior of thermoplastic materials in the event of fire, and to the flammability or flame resistance of the sheathing material of transmission cables. Low smoke means that the cable material produces little smoke in the event of a fire, and zero halogen means that it is halogen-free. In case of fire, such a cable material will not release corrosive or caustic acids.
