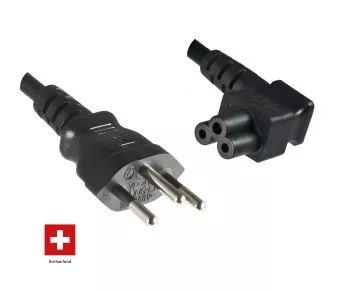

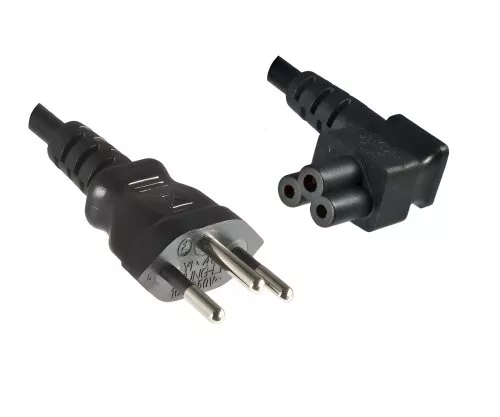

Power cable for Switzerland - type J to C5 angled, black, 3.00m
MAG Part No.: CB-3L-S-3M (YP-46/YC-14)
- Connector: Type J (3pole partially insulated) to C5 90
- Color: black
- Length: 3m
- cross section: 3 x 0,75mm²
- Material: H05VV-F
- Approval: SEV
- RoHS compliant
- Packaging: Bulk
Countries:
Liechtenstein, Rwanda, Switzerland
Switzerland introduces safe plugs from 2012, compulsory from 2016
For the safe handling of plugs, the Swiss standard SEV 1011:2009 introduced partially insulated plug pins of type 11 (2pin 10A) and type 12 (3pin 10A) for mains plugs.
After 31.12.2012, no old mains plugs may be manufactured or imported into Switzerland. By 31.12.2016, all existing electrical equipment with old plugs must have disappeared from sale.

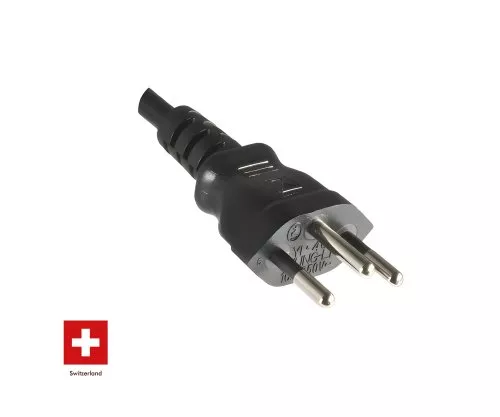

Plug type J (YP-46)
The system is usually used with 220-230 V AC, 50 Hz (in Switzerland also called type 13).

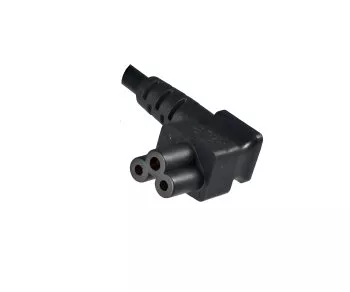

Plug C5 - (YC-14)
Cloverleaf plug IEC 60320-C5, also called Mickey Mouse plug, is often used with laptop or notebook computers. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 2.5 A.
