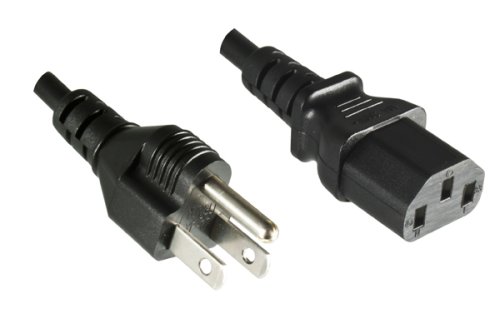

Power cable Taiwan - type B to C13, black, 1.83m
MAG Part No.: CB-N-TWN (YP-12/YC-12)
- Connector: Type B to C13 / 3-pin
- Color: black
- length: 1,83m
- Cross section: 1,25mm²
- Approval: BSMI
- RoHs compliant
- Packaging: Bulk
- Material: VCTF
Countries:
Taiwan
Connector Type B (YP-12)
The NEMA 5-15P connector has two flat parallel pins for neutral as well as live conductors and a round longer pin for the ground wire. It should be used for max. 120V, 60Hz.
Plug C13 (YC-12)
IEC 60320-C13 cold appliance plug is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.
