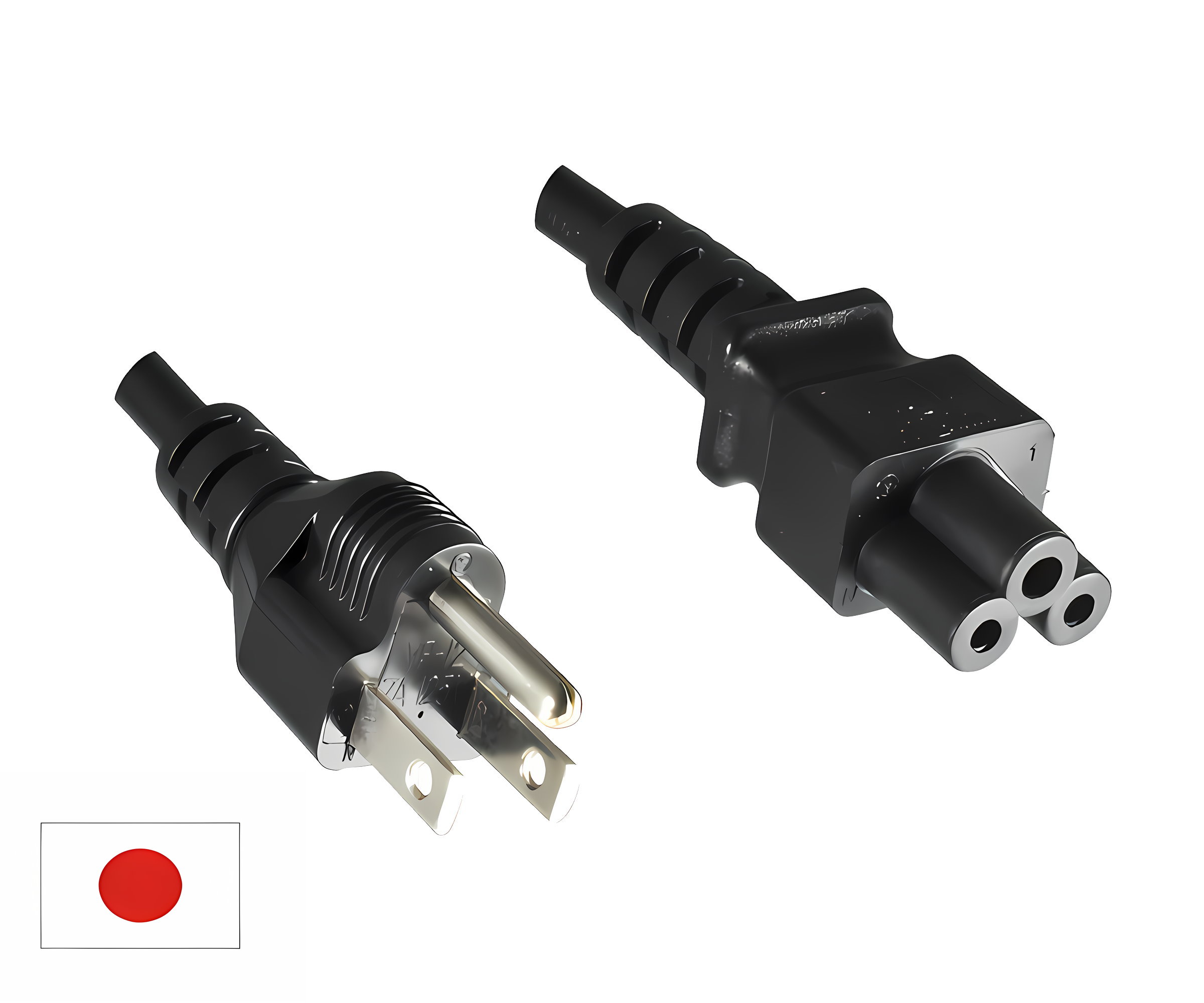

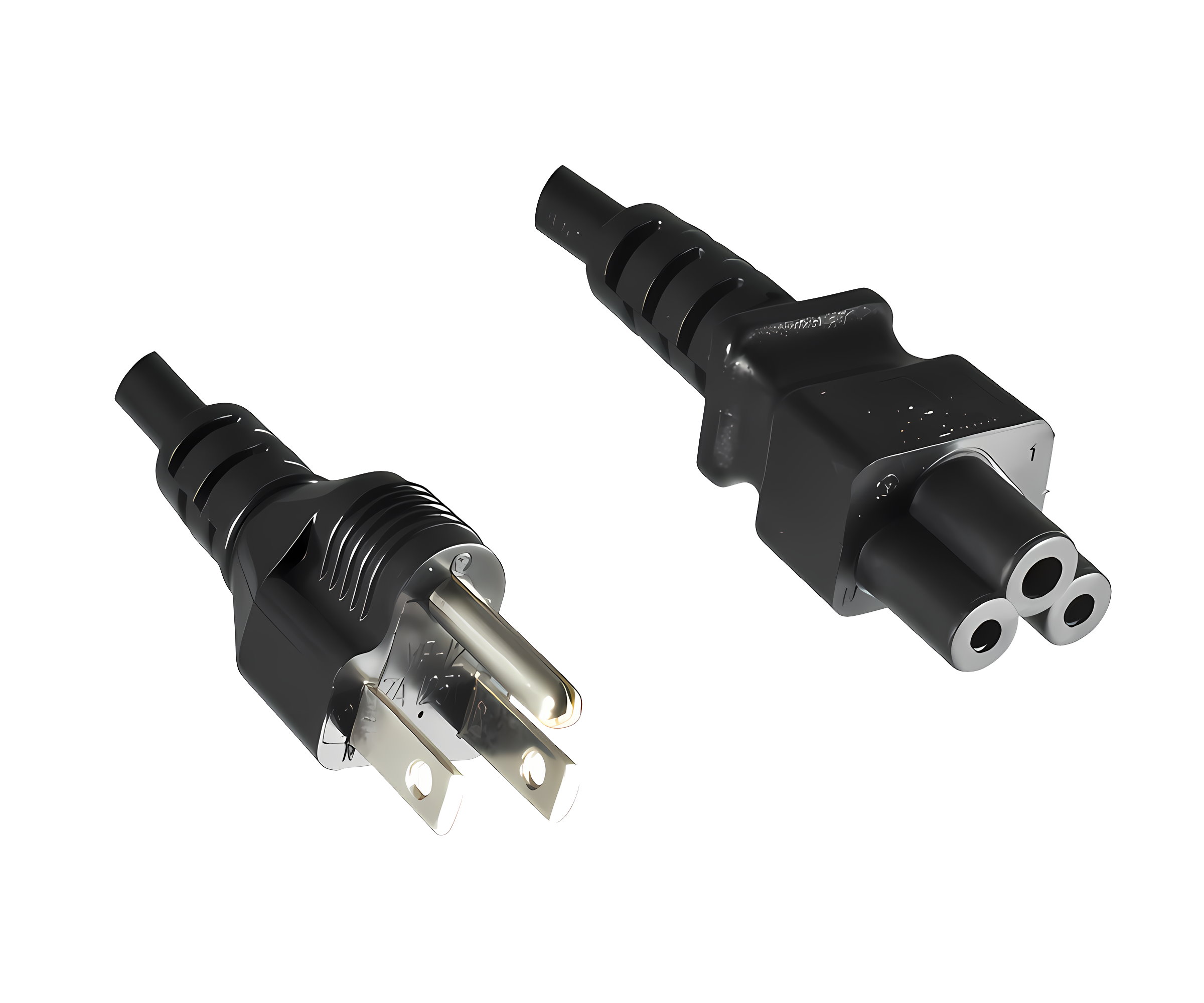

Power Cable for Japan - Type B to C5, Black, 1.80m
*Important Note* Since 09/18/2015, it is required by law that Japanese plugs pass a "Tracking Test" and a "Glow Wire Flammability Test". You can find the corresponding certificates under the tab "Downloads/Documents".
MAG Art.No. CB-3-J (PSE YP-12/YC-14)
- Connector: Type B to C5
- Color: black
- length: 1,80m
- cross section: 3 x 0,75mm²
- Material: VCTF
- Approval: JET, PSE
- RoHS compliant
- Packing: Bulk
Countries:
Japan

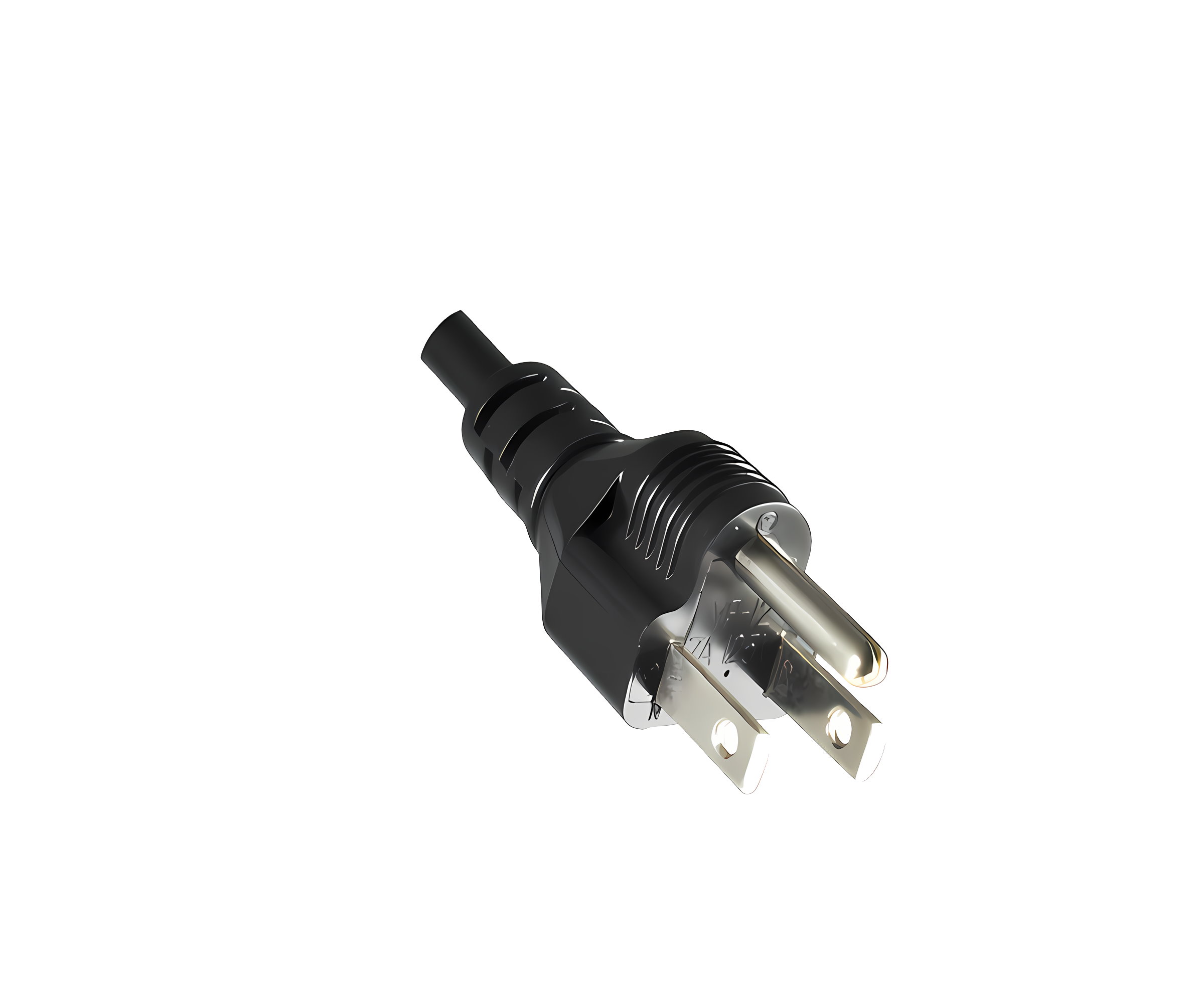

Plug type B (YP-12)
for 110-127 V AC, 60 Hz. The Japanese type B connector standard JIS C 8303 is compatible with US NEMA 5-15. US devices do not always work correctly because frequencies in Japan vary between 50-60 Hz.

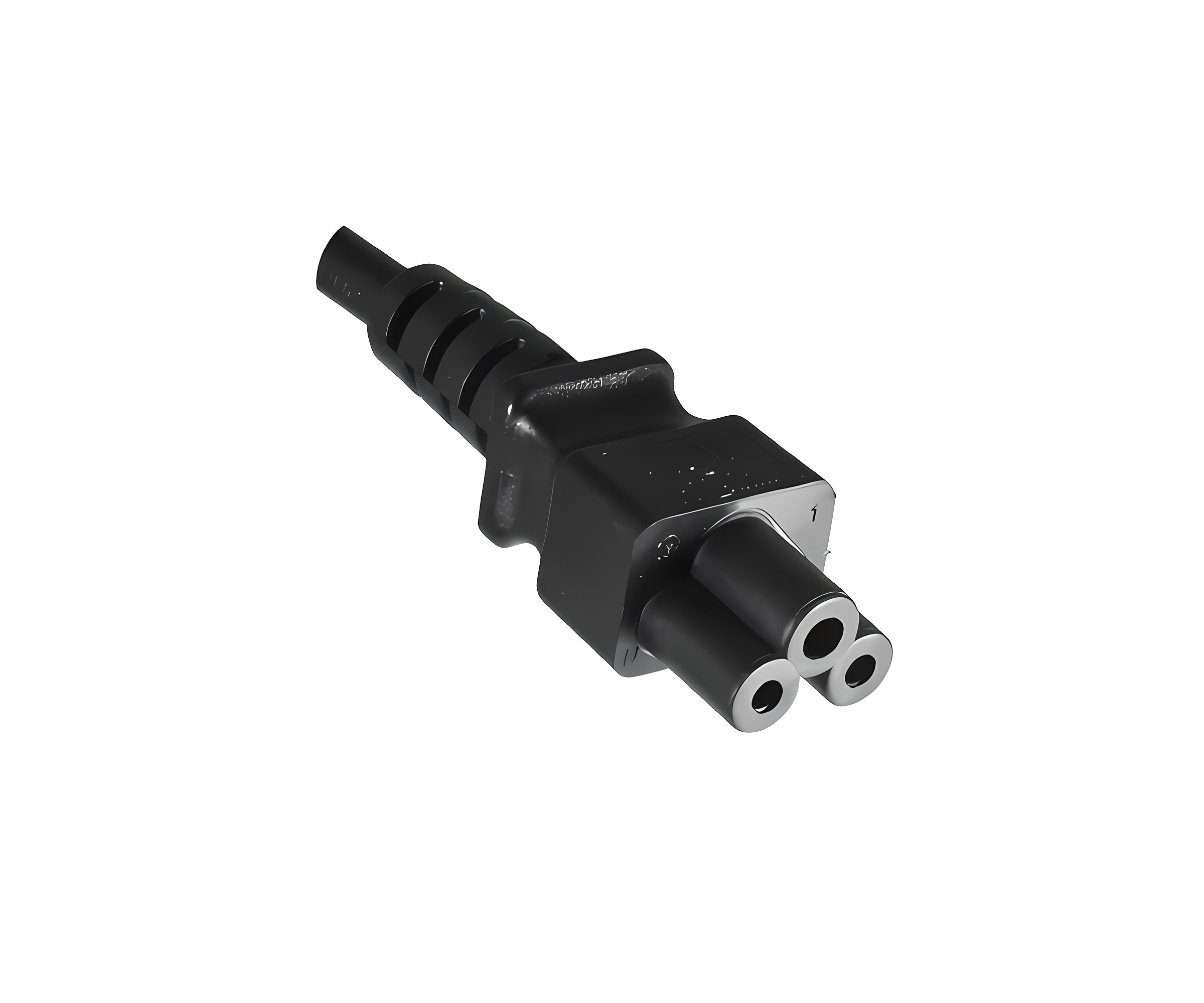

Connector C5 (YC-14)
Cloverleaf connector IEC 60320-C5, also called Mickey Mouse connector, is often used with laptop or notebook computers. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 2.5 A.
