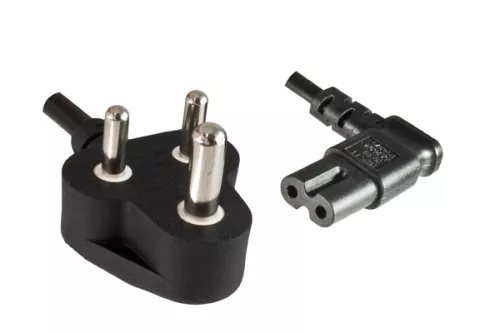

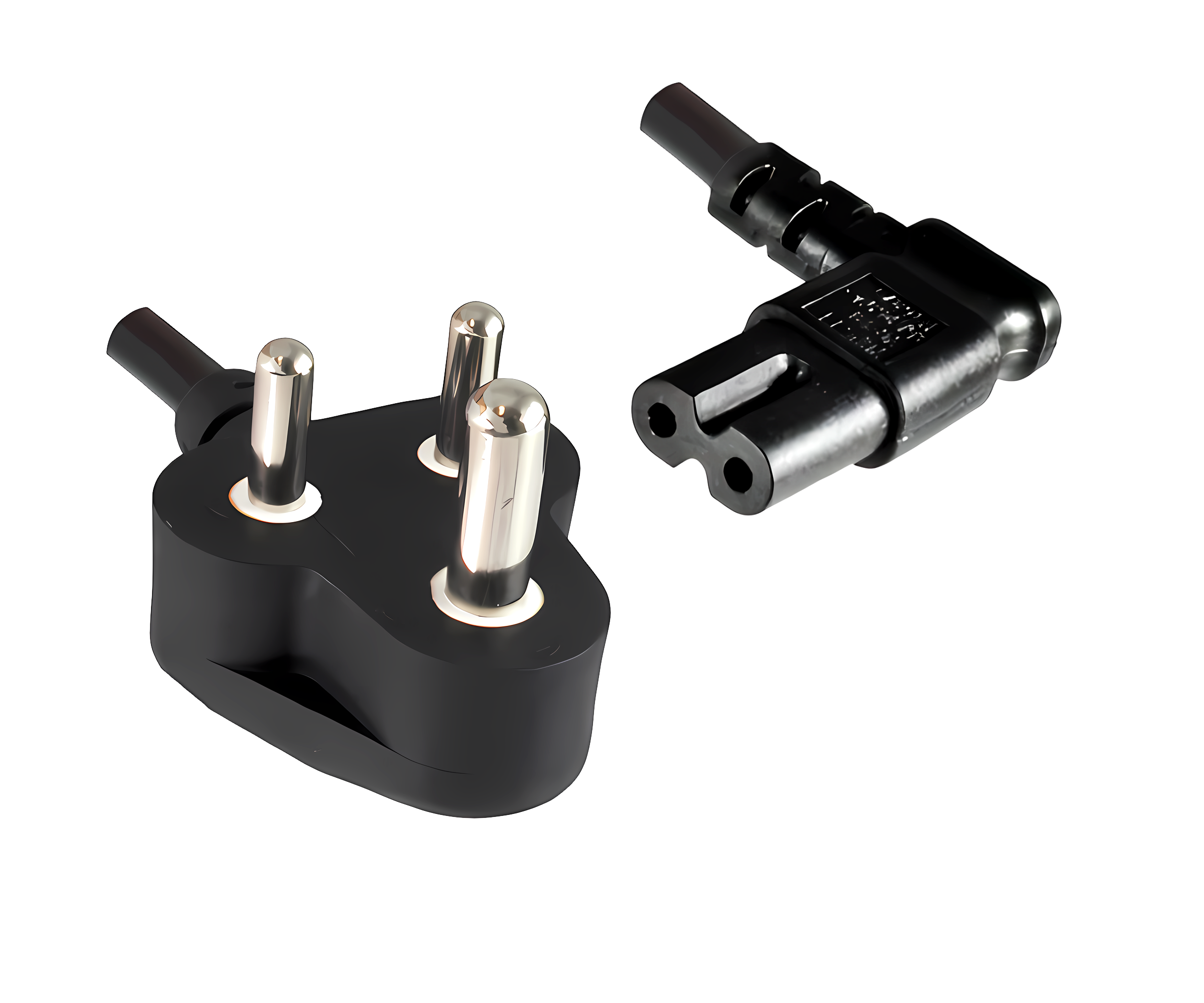

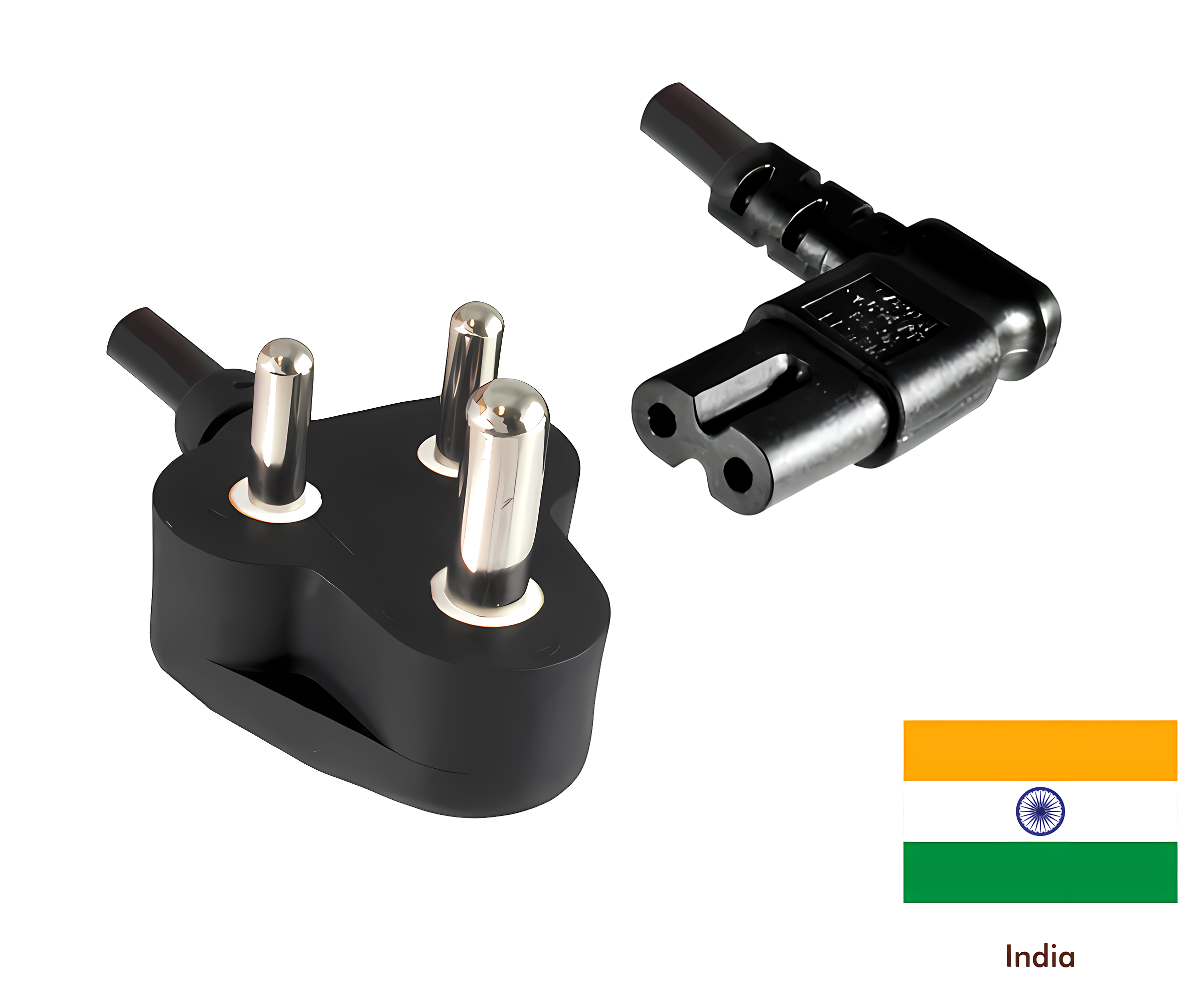

Power cable for India (IND) - type D to C7 angled, black, 1.80m
- Connector: Type D to C7 90
- color: black
- length: 1,80m
- Cross section: 0,75mm²
- Material: YY 2C
- Approval: BIS
- RoHS compliant
- Packing: Bulk
Countries:
India.

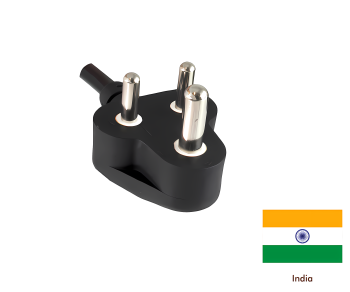

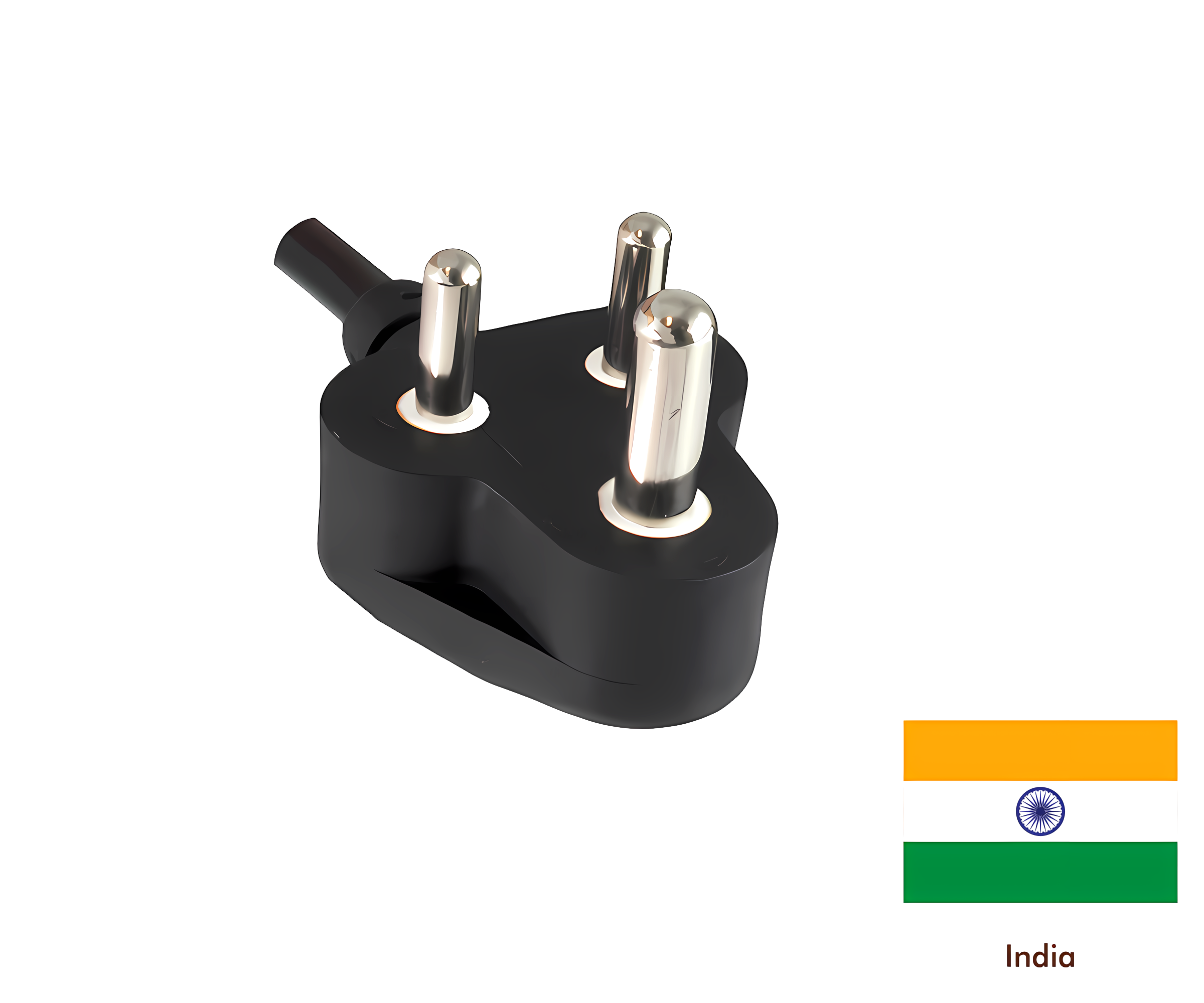

Plug type D (YP-81).

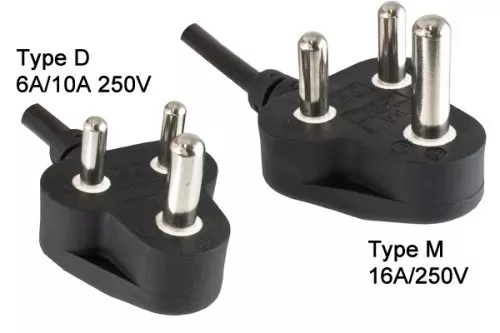

The IS-1293 plug (Indian standard) is similar to the BS546 standard and is used in about 40 different countries according to IEC. The Type D version is rated at 6A or 10A and is physically smaller than the Type M, but with the same form factor. It has 3 round pins that form an isosceles triangle. The ground pin is wider and longer than the N & L pins to allow the protective plates to be released on the live and neutral wires. Even if the outlet does not have protective plates, the longer ground pin is necessary to make initial contact before the plug becomes active. When pulled out, the live contacts are disconnected before the ground connection is disconnected.

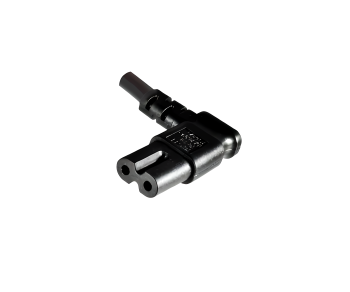

Plug C7 (YC-13)
Small appliance plug IEC 60320-C7, known as Euro or Euro 8 plug, is approved by VDE for consumption up to 2.5 A at a maximum operating temperature of 70°C.
