Power cable China type I to C5, 0.75mm², 1.8m CHN 3pin/IEC 60320-C5, CCC, black

Mobile Preview: Power cable China type I to C5, 0.75mm², 1.8m CHN 3pin/IEC 60320-C5, CCC, black

Mobile Preview: Power cable China type I to C5

Power cable China type I to C5, 0.75mm², 1.8m CHN 3pin/IEC 60320-C5, CCC, black

Product No.:: CB-3-CH
Shipping time:: ca. 3-4 days
Stock:: 831 Stück
EAN:: 4032528012674
Weight:: 0.19 kg per Stück

Sliding scale prices

1-99 Stück: per 3,35 EUR
100-499 Stück: per 3,19 EUR
> 499 Stück: per 2,89 EUR

3,35 EUR

plus 19% tax

Stück:

Description

Description

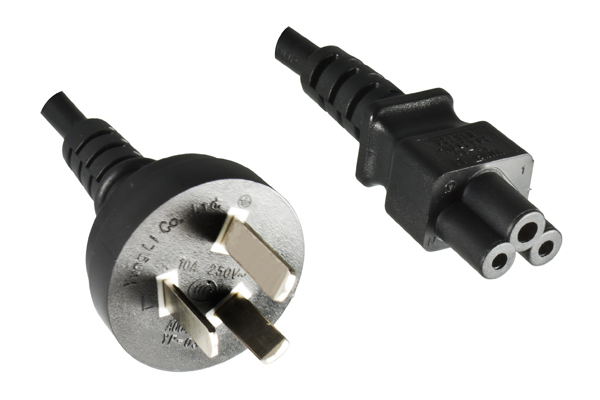

Power cable for China - Type I to C5, black, 1.8m

MAG Part No.: CB-3-CH (YP-03/YC-14)

Countries:
China

Connector type I - CPCS-CCC (YP-03)
In China there is a very similar and mechanically compatible standard to the Type I AS-3112 (Australia). The most important difference is that the plugs are turned 180°. The protective contact is therefore at the top and not at the bottom.

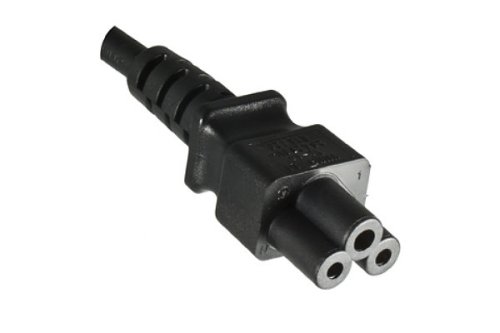

Plug C5 (YC-14)
Cloverleaf plug IEC 60320-C5, also called Mickey Mouse plug, is often used with laptop or notebook computers. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 2.5 A.
