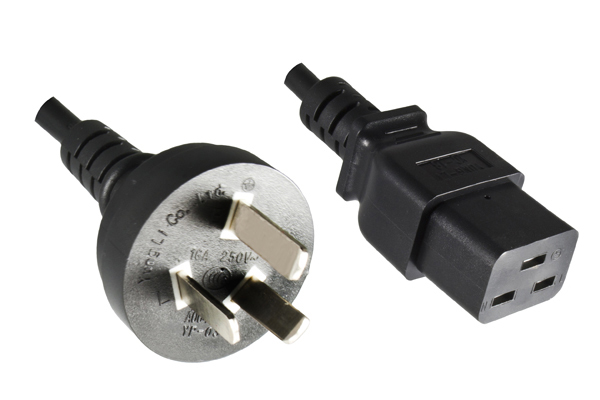

Power cable for China (CHN) - Type I (16A) to C19, 1.80m
MAG part no.: CB-19-CH (YP-03A/YC-18)
- Plug: Type I (16A) to C19
- Color: black
- length: 1,80m
- Cross section: 3 x 1,5mm²
- Material: H05VV-F
- Approval: CCC
- RoHS compliant
- Packing: Bulk
Countries:
China

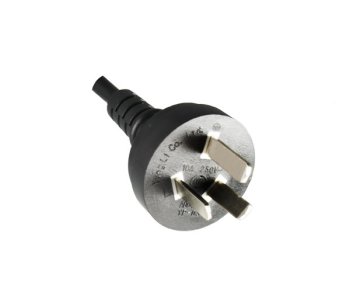

Connector type I - CPCS-CCC (YP-03)
In China there is a very similar and mechanically compatible standard to the Type I AS-3112 (Australia). The most important difference is that the plugs are turned 180°. The protective contact is therefore at the top and not at the bottom.

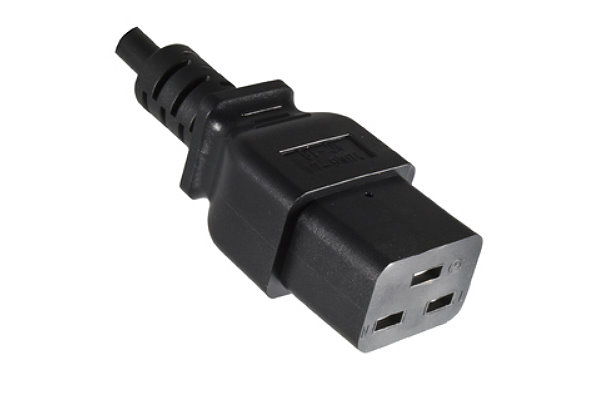

Plug C19 (YC-18)
IEC 60320-C19 cold appliance plug is used for power connection of devices, which do not generate heat during operation, at higher currents up to 16A.
