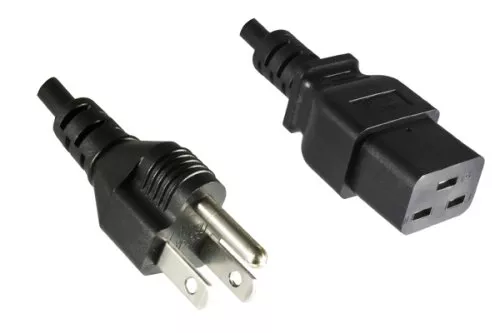

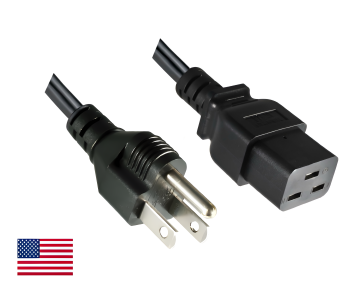

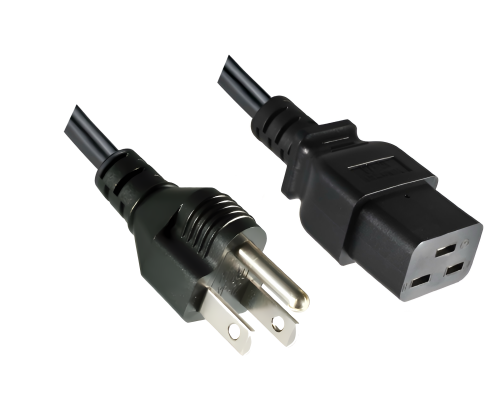

Power cable for America (USA) - type B to C19, 1.80m
MAG Part No.: CB-19-US (YP-12/YC-18)
- Plug: Type B to C19
- Color: black
- Length: 1,80m
- Cross section: AWG 16
- Approval: UL, CSA
- RoHS compliant
- Packaging: Bulk
- Material: SJT
S = Service Grade (also means extra hard service when not followed by J, V, or P)
J = Hard Service
T = Thermoplastic
Countries:
Canada, Mexico, Taiwan, USA

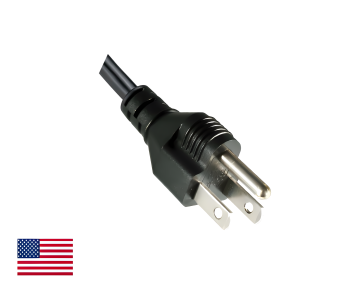

Connector Type B (YP-12)
The NEMA 5-15P connector has 2 flat parallel pins for phase and neutral and a round longer pin for ground. It is used in 120V 60Hz max installations.

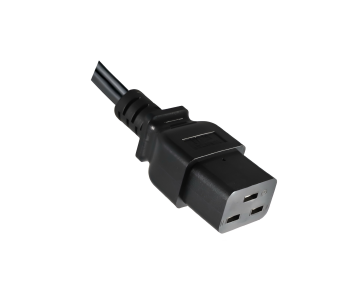

Plug C19 (YC-18)
IEC 60320-C19 cold appliance plug is used for power connection of devices which do not generate heat during operation, at higher currents up to 16A.
