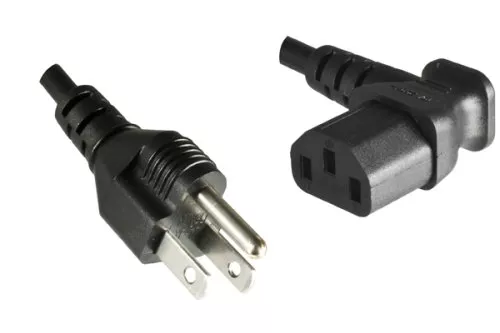

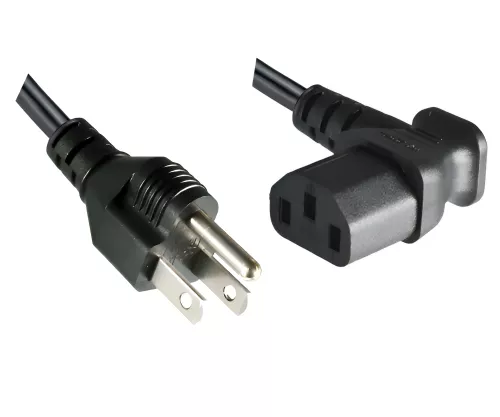

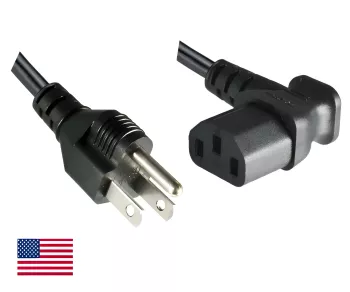

Power cable America (USA) - type B to C13, black, 1.80m
MAG Part No.: CB-N-US-90 (YP-12/YC-12L)
- Plug: Type B to C13 90° angled / 3-pin
- Color: black
- length: 1,80m
- Approval: UL, CSA
- Cross section: AWG 18
- RoHS compliant
- Packaging: Bulk
- Material: SVT
S = Service Grade (also means extra hard service when not followed by J, V or P)
V = Vacuum cleaner cord (also light duty cable)
T = Thermoplastic
Countries:
Canada, Mexico, Taiwan, USA

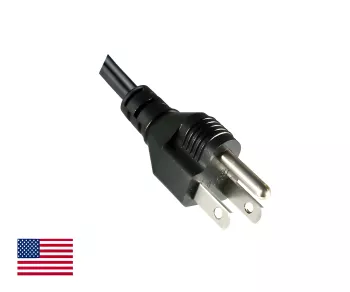

Connector Type B (YP-12)
The NEMA 5-15P connector has two flat parallel pins for neutral as well as live conductors and a round longer pin for the ground wire. It should be used for max. 120V, 60Hz.

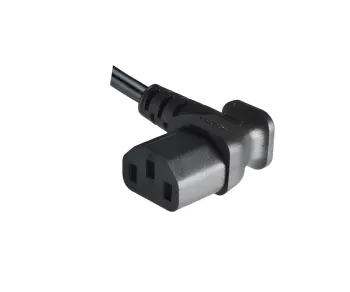

Plug C13 (YC-12L)
IEC 60320-C13 cold appliance plug is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.
