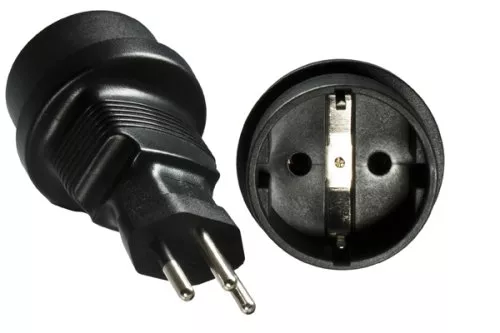

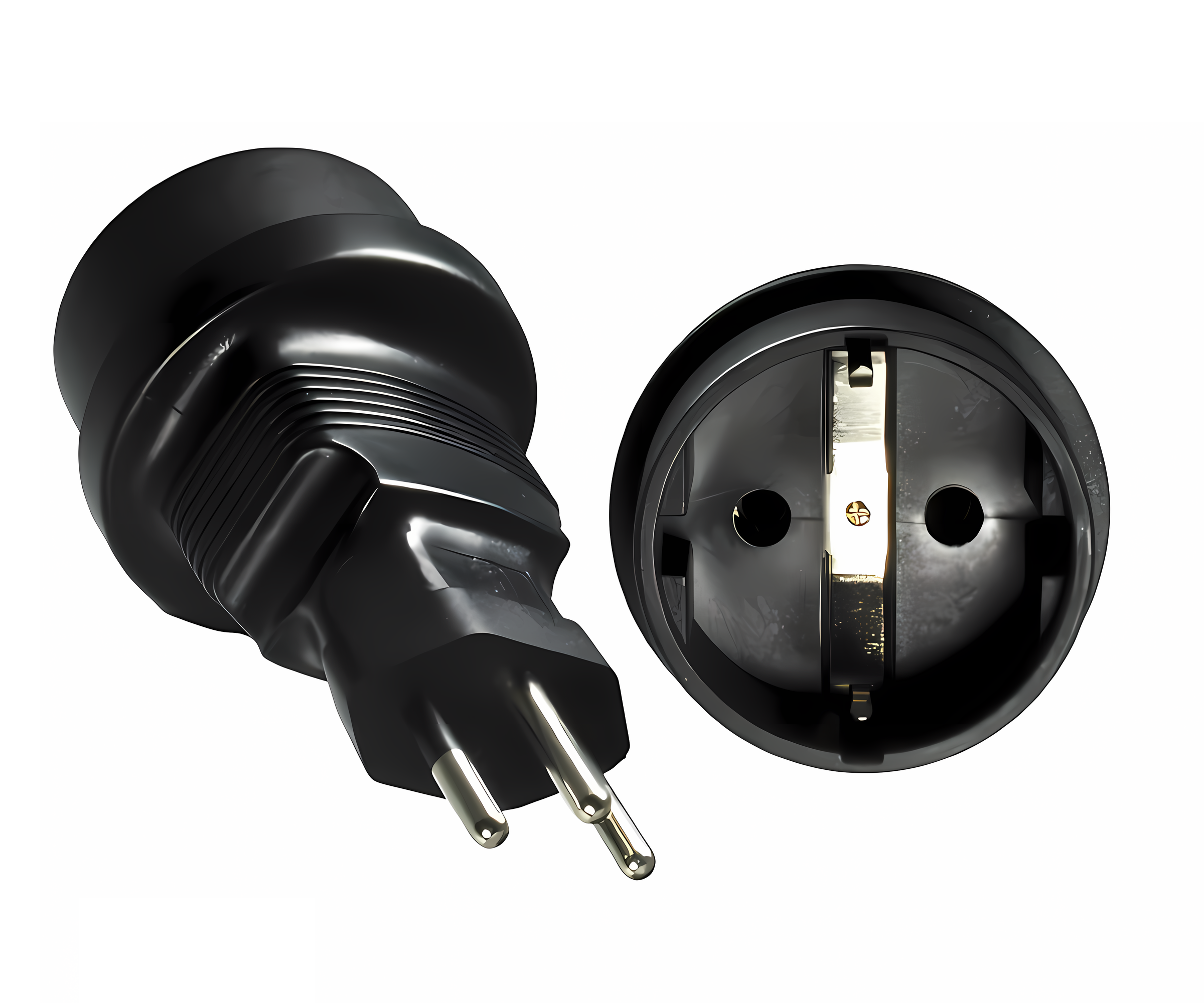

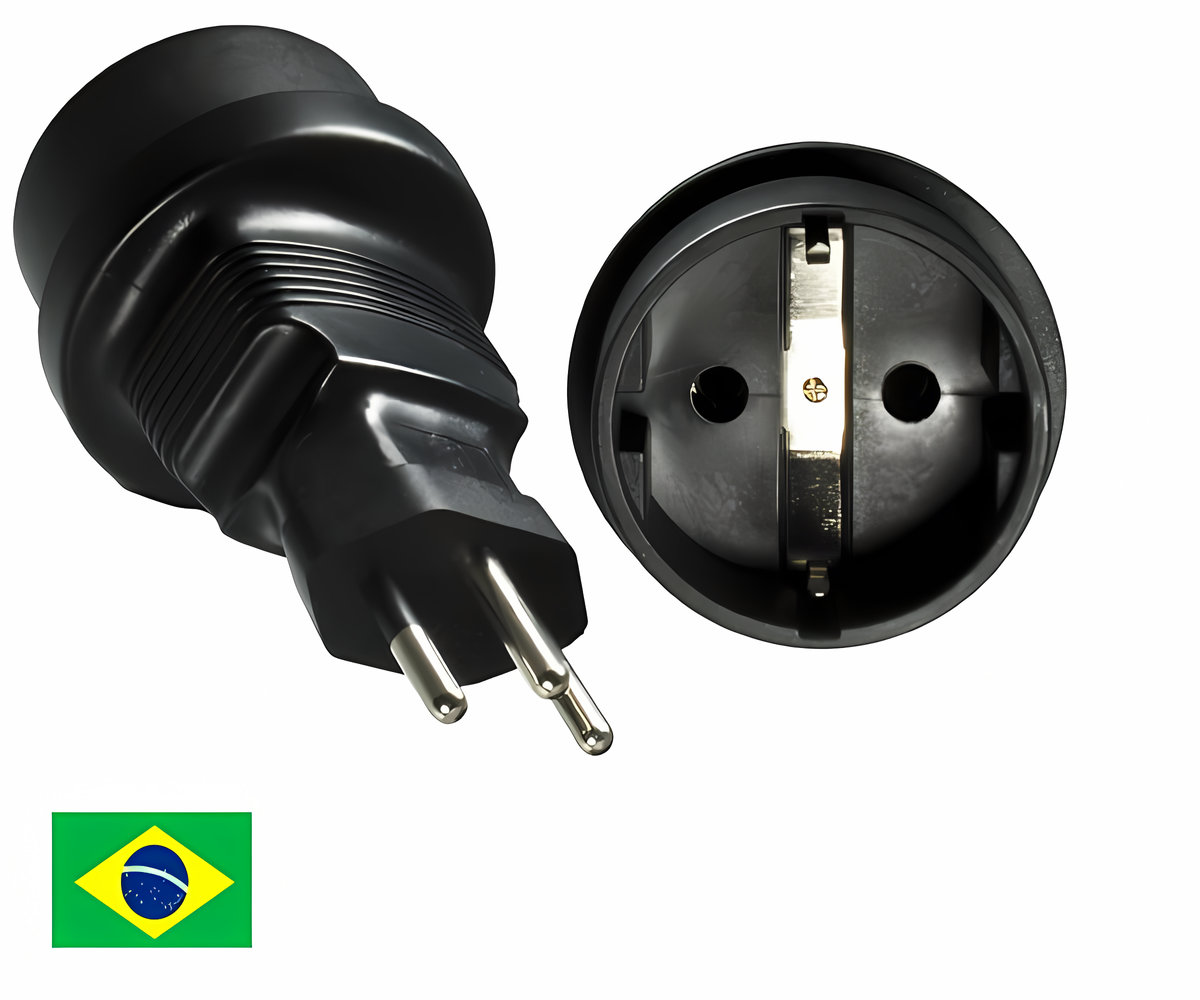

Power adapter Brazil CEE 7/3 to BRA type N 3pin plug, YL-0423

Travel plug, travel adapter - EU CEE 7/3 to Brazil

MAG item no.: CB-A-0423 (YL-0423)

• Plug: CEE 7/3 safety socket to BRA 3pin type N plug
• Color: black
• Approval: CE
• Packing: Bulk

Countries:
Brazil

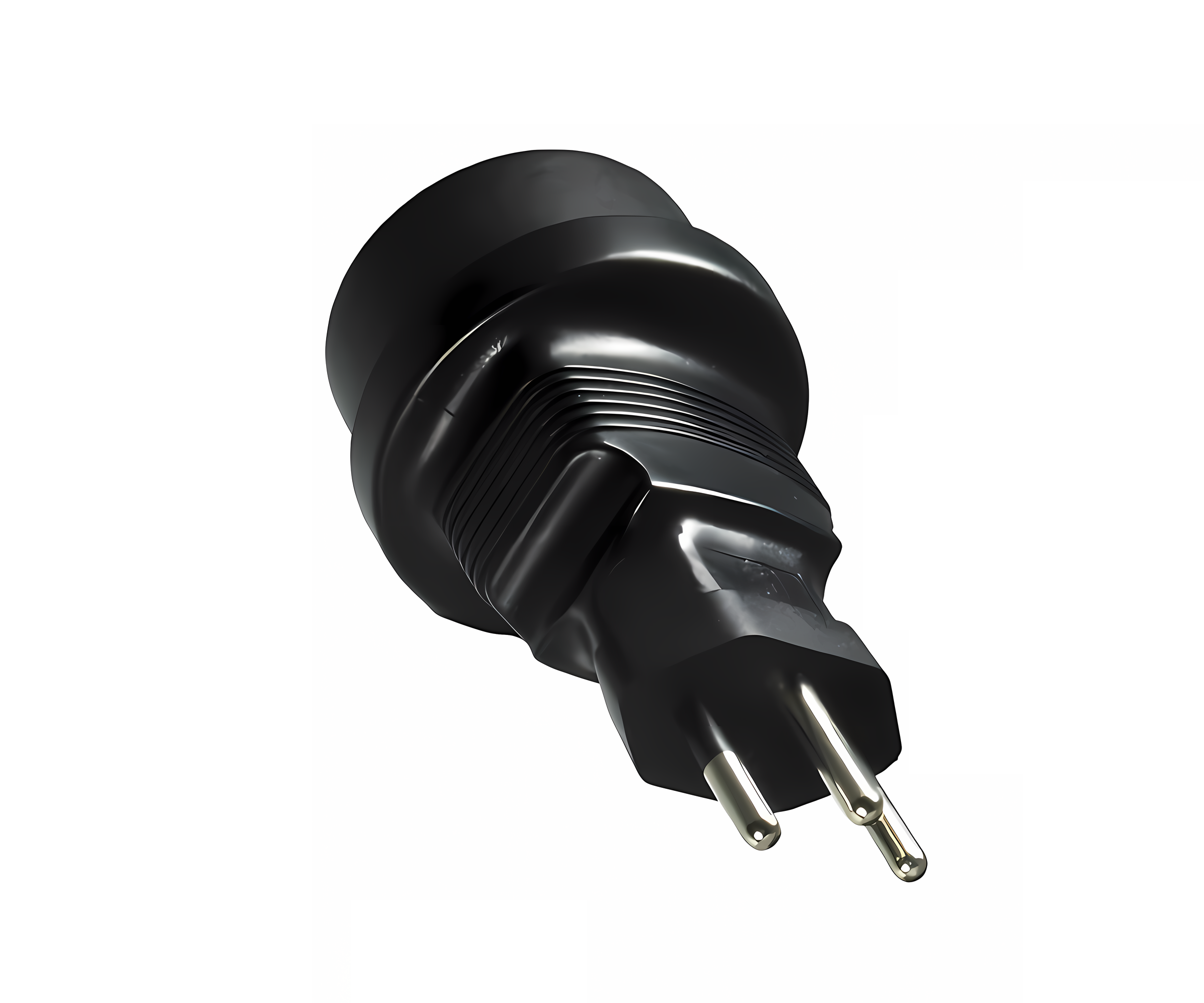

Plug type N IEC 60906-1 (YP-04)
The plug is similar to the J-type used in Switzerland, but is not compatible with it due to the following differences:

• The pin or socket for grounding has a distance from the center line of 3mm instead of 5mm (CH).
• The pin diameter is 4.5mm instead of 4mm (CH)
• The outer conductor is standardized on the left for IEC 60906-1 instead of on the right (CH)

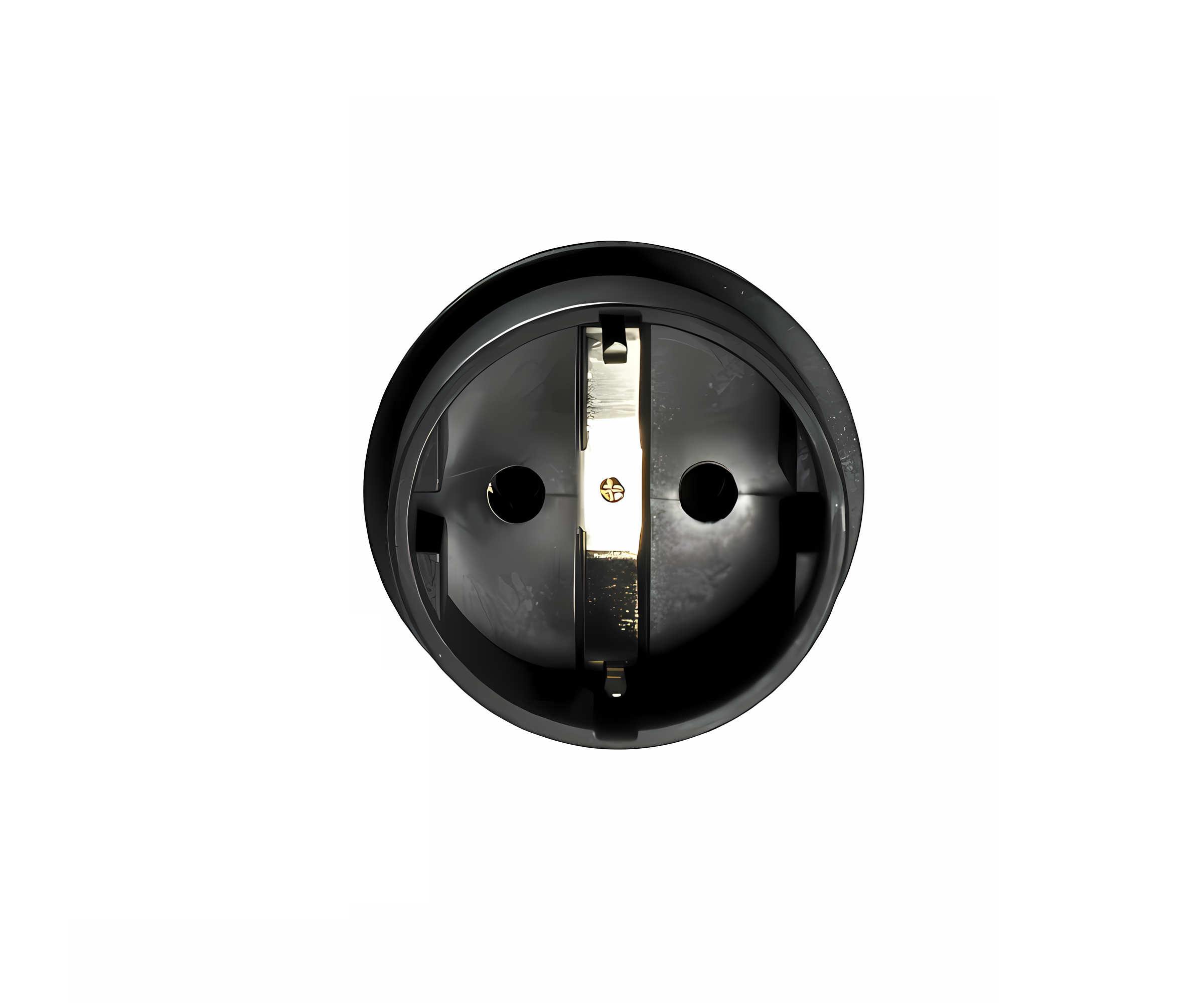

Socket CEE 7/3 (also protective contact socket)
The frequently used abbreviation Schuko is a protected trademark.
The maximum power is 250V/16A. This socket is used in over 70 countries.
