Technical highlights

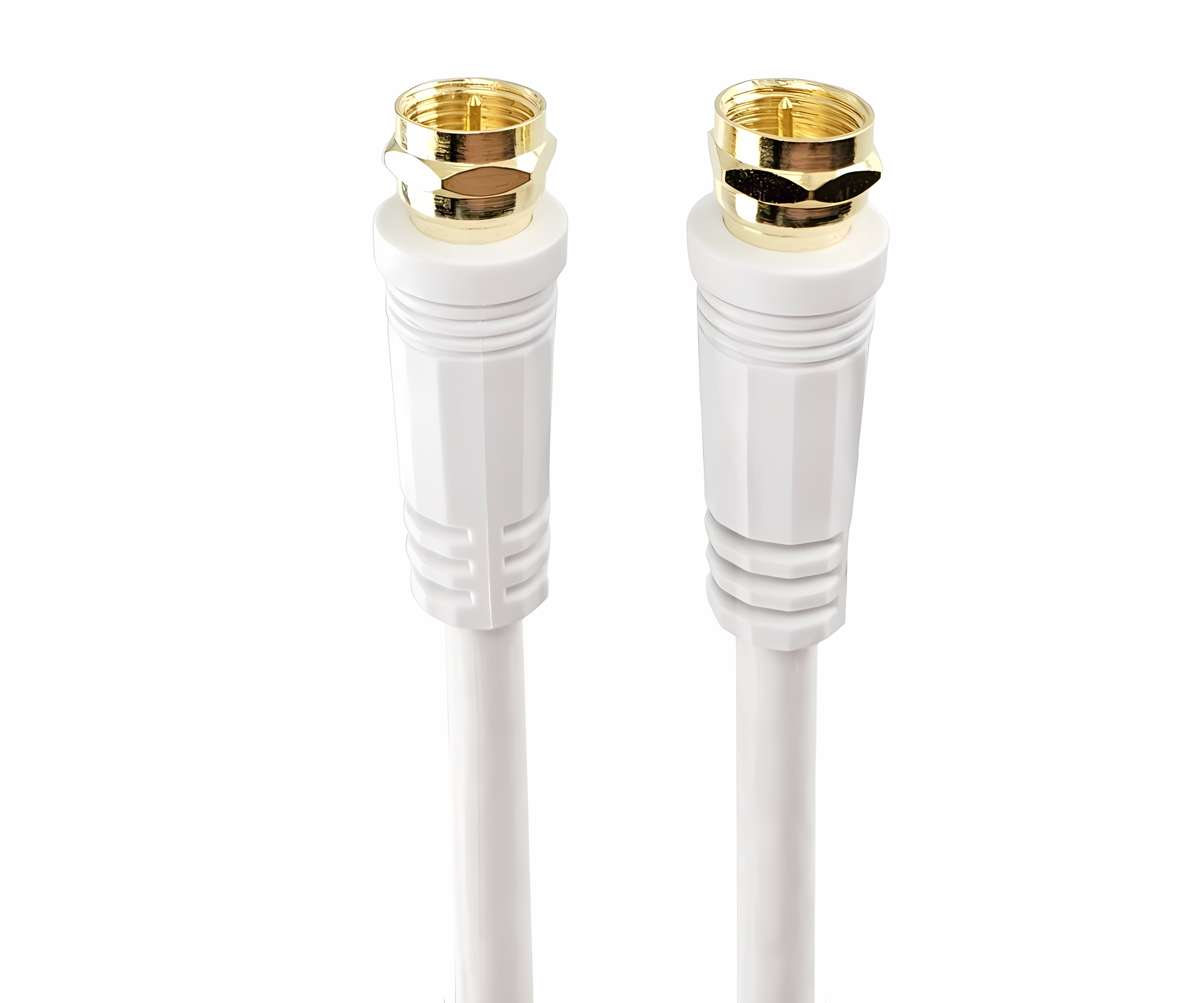

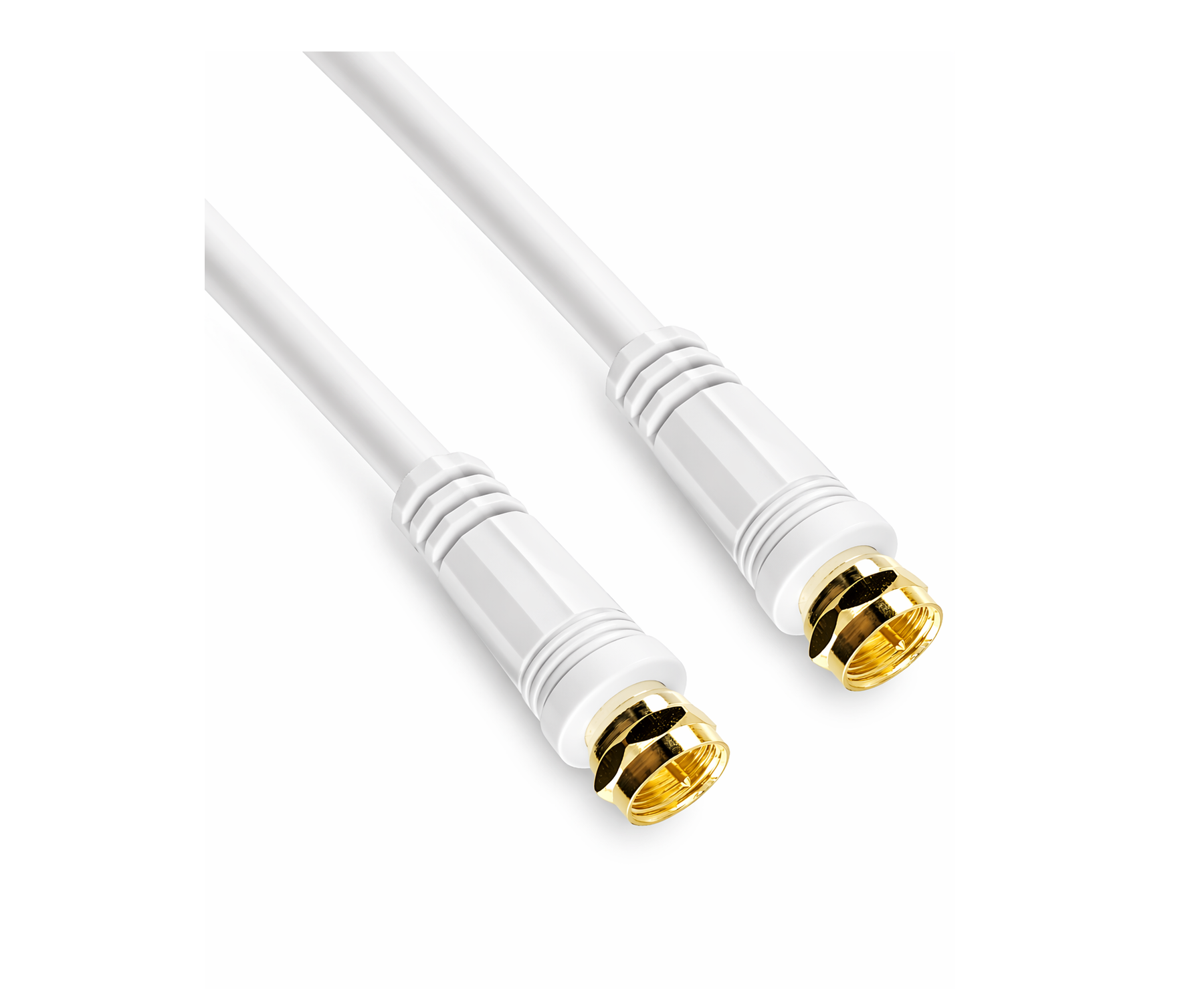

• F plug to F plug, gold-plated contacts and plug
• Length 10.00 m, cable type RG 59, outer diameter approx. 6.0 mm

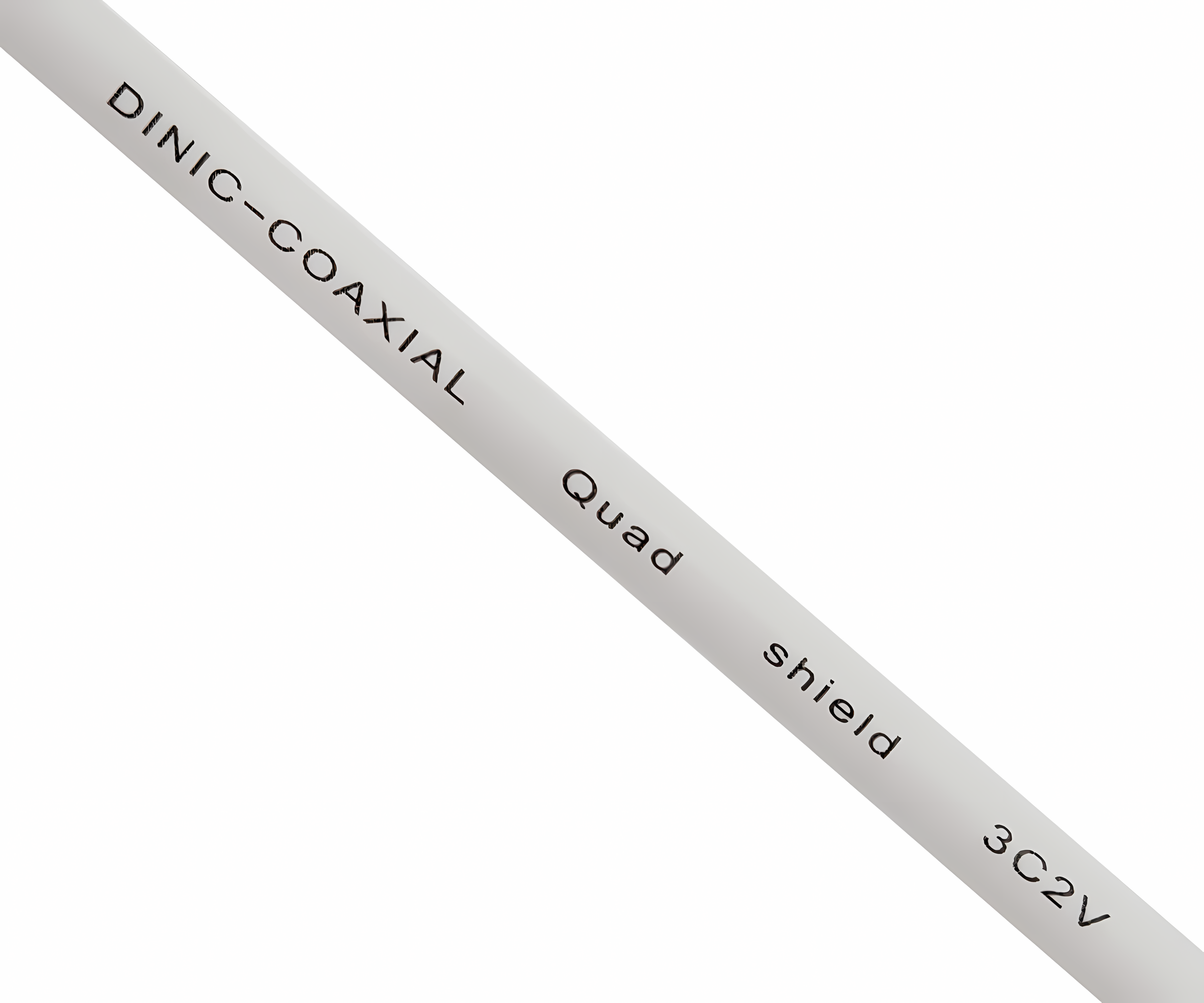

• Quadruple shielded: Aluminium foil shielding, braiding and additional shielding plate
• Shielding attenuation > 90 dB for low-interference signal transmission
• Braiding with 112 wires for high shielding effectiveness
• Inner conductor 0.5 mm CCS (Copper Clad Steel)
• White colour - inconspicuous installation indoors
• Packaged in DINIC blister pack, labelled according to item and length

Description

The DINIC SAT coaxial cable with F plug to F plug is designed for the low-loss transmission of digital SAT and TV signals. The quadruple shielding made of aluminium foil, braiding and additional shielding plate ensures high shielding attenuation and reduces interference from neighbouring cables or RF sources in the installation environment.

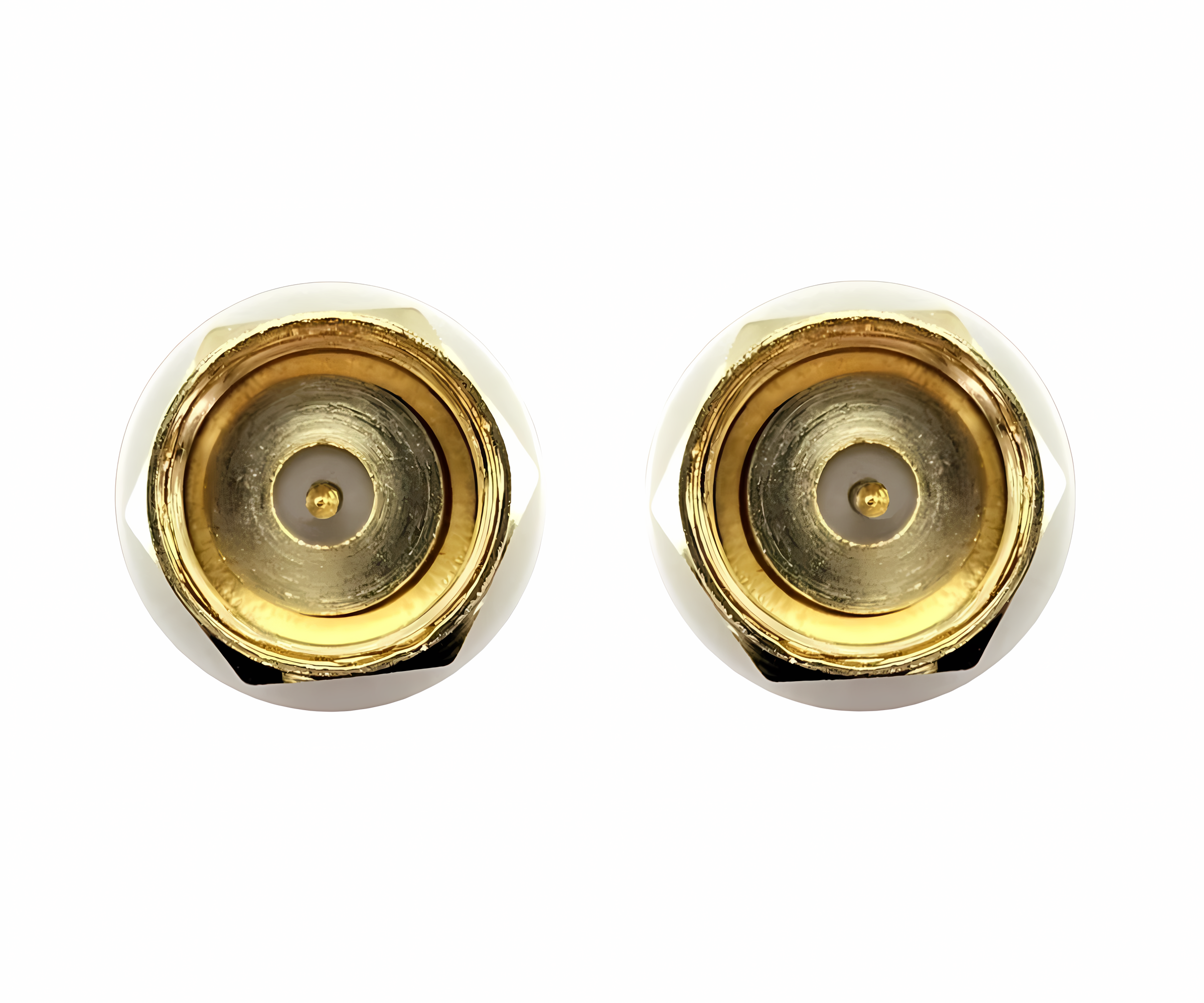

The gold-plated F connectors minimise contact corrosion and contact resistance, which supports permanently stable signal quality. The inner conductor with 0.5 mm CCS design and the approx. 6.0 mm thick cable sheath offer a balanced ratio of mechanical robustness and flexibility for laying in typical TV/SAT installations.

The cable length of 10 m is suitable for connection and extension lines between aerial sockets, SAT receivers, multi-switches and other components in distribution networks. The white version can be integrated inconspicuously, particularly for visible installations in office and residential environments as well as cable ducts.

Areas of application

• TV and SAT cabling in building services and the housing industry
• Connection between aerial socket and SAT receiver / TV set
• Signal lines between multi-switches, distributors and receivers
• Retrofitting and expansion of existing SAT/BK distribution networks
• Project business in the electrical trade, system houses and specialised trade

Technical data

Compatibility

Designed for all devices and components with F sockets for SAT and TV signal transmission.

• Satellite receiver with F input
• TV sets with integrated SAT tuner (F socket)
• Multiswitches, distributors and amplifiers with F connections
• SAT and BK connection sockets with F socket

Scope of delivery

• 1 × DINIC SAT coaxial cable F-connector to F-connector, 10.00 m, white, quadruple shielded, in DINIC blister pack
