Technical highlights

• Multimode fibre OM4, 50/125 µm, duplex version

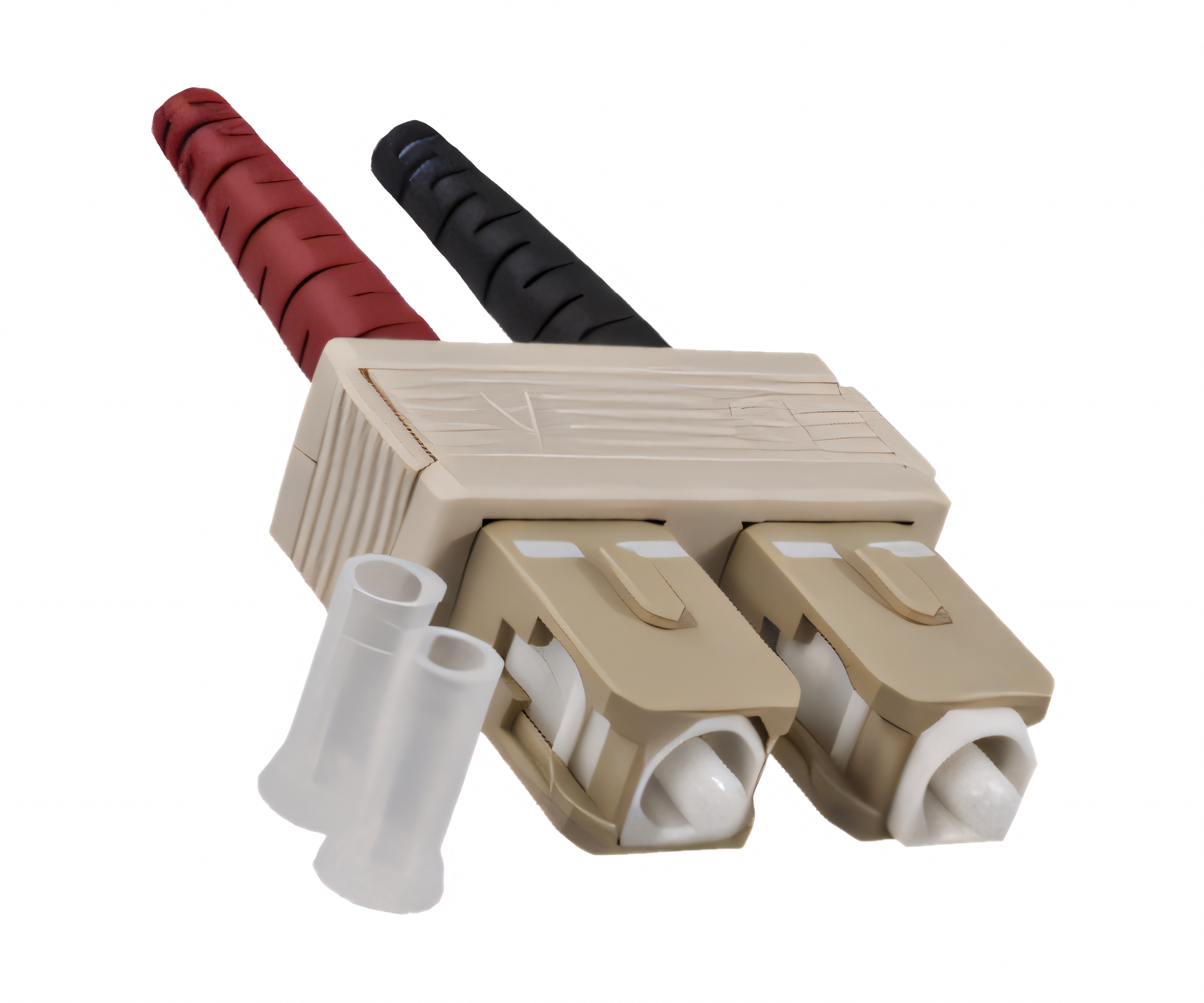

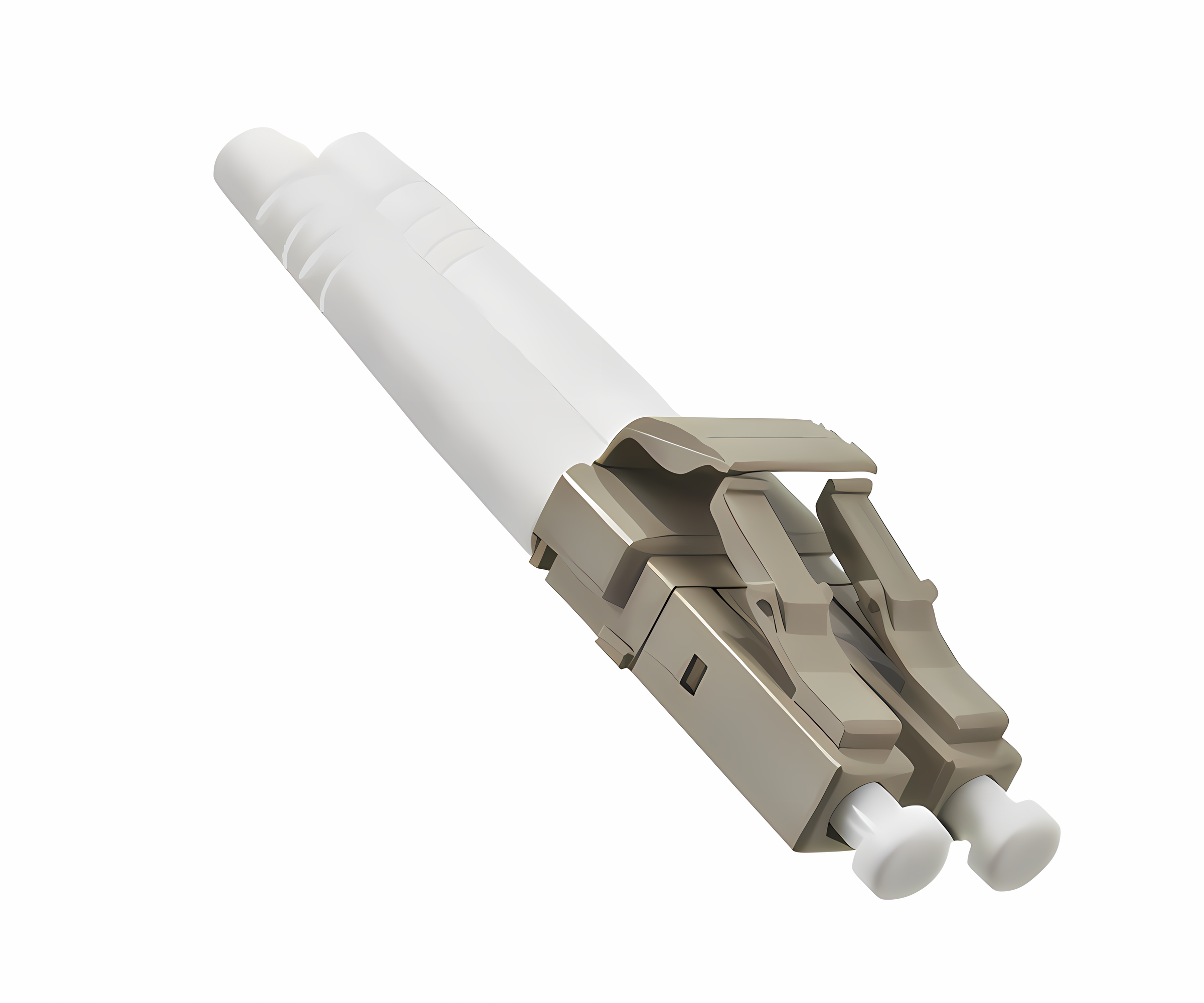

• LC to SC connector, pre-assembled on both sides
• LSZH jacket, halogen-free, flame-retardant and low-smoke
• Outer diameter 3.0 mm for robust patch applications
• Operating temperature range -20 °C to +70 °C
• Colour code eric violet (RAL 4003) for OM4 cabling
• Optimised for data rates up to 100 Gbit/s over short distances

Cable description

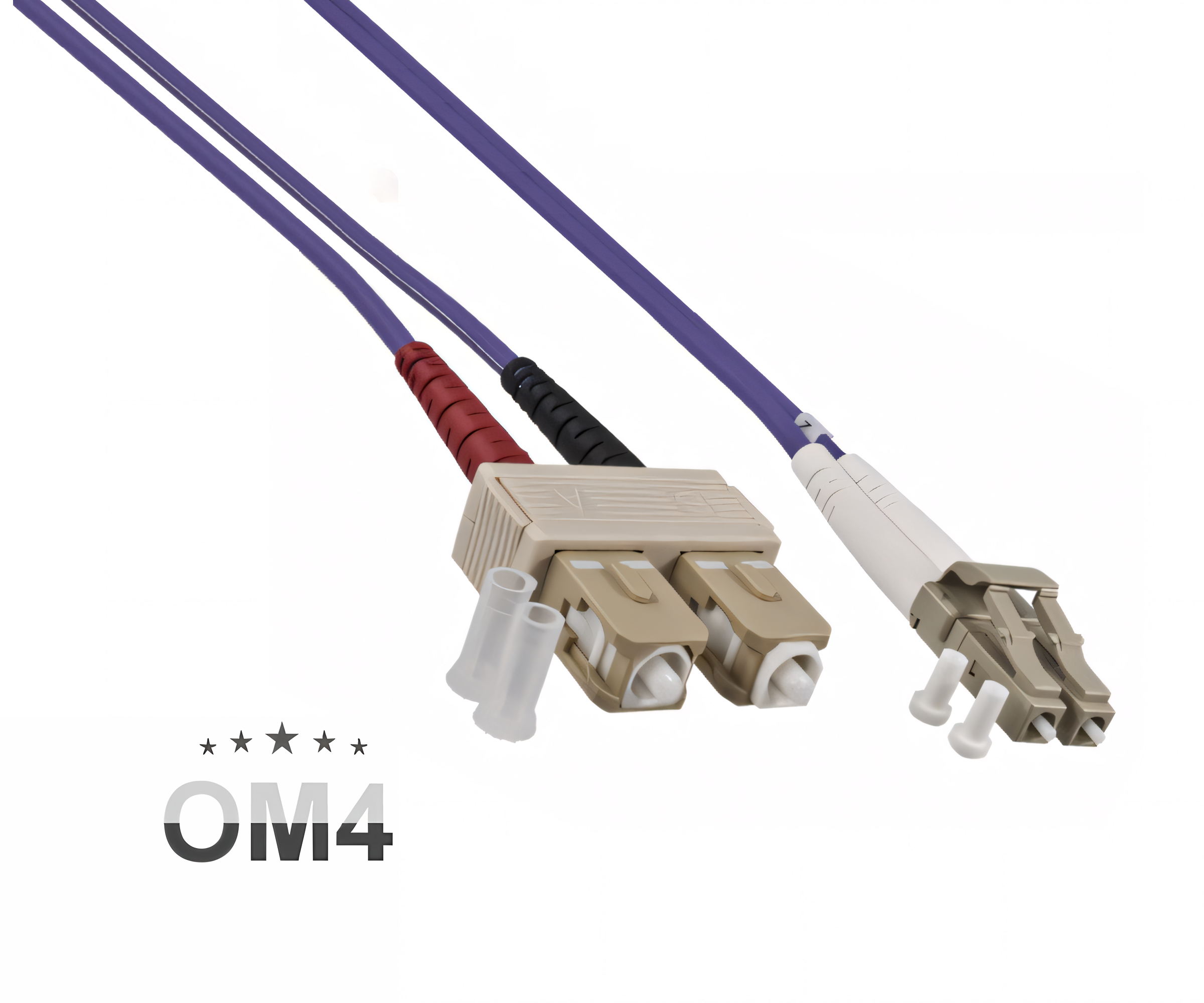

The DINIC OM4 fibre optic patch cable with LC to SC connectors is a pre-assembled duplex multimode cable for structured fibre optic cabling in professional environments. The 50/125 µm OM4 fibres used enable high bandwidths and longer transmission distances than OM3 in the same environment.

The halogen-free LSZH jacket fulfils increased requirements for fire protection and smoke development and is therefore suitable for use in modern IT and technical rooms. The compact design with an outer diameter of 3.0 mm makes the cable particularly suitable as a patch cable between patch panels and active components.

Areas of application

• Patch cabling in data centres and server rooms
• Connection of switches, routers and media converters with LC or SC ports
• Connections between patch panels and active network technology
• OM4 multimode backbone and floor cabling
• Storage, SAN and high-speed data connections up to 100 Gbit/s (route-dependent)

Technical data

Performance data / maximum ranges*

*Guideline values with suitable OM4 cabling and optical transceivers, depending on system design and framework conditions.

Compatibility

The cable is designed for multimode transmissions based on 50/125 µm OM4 fibres and is suitable for all common components with LC or SC multimode ports. It can be integrated into existing OM3/OM4 multimode cabling, provided that the corresponding fibre type and the appropriate optical transceivers are used throughout.

• Patch panels and splice boxes with LC or SC adapters
• Switches, routers, servers with suitable fibre optic transceivers
• Media converters and storage systems with multimode interfaces

Scope of delivery

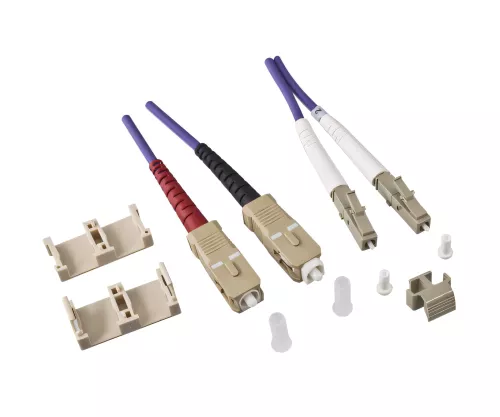

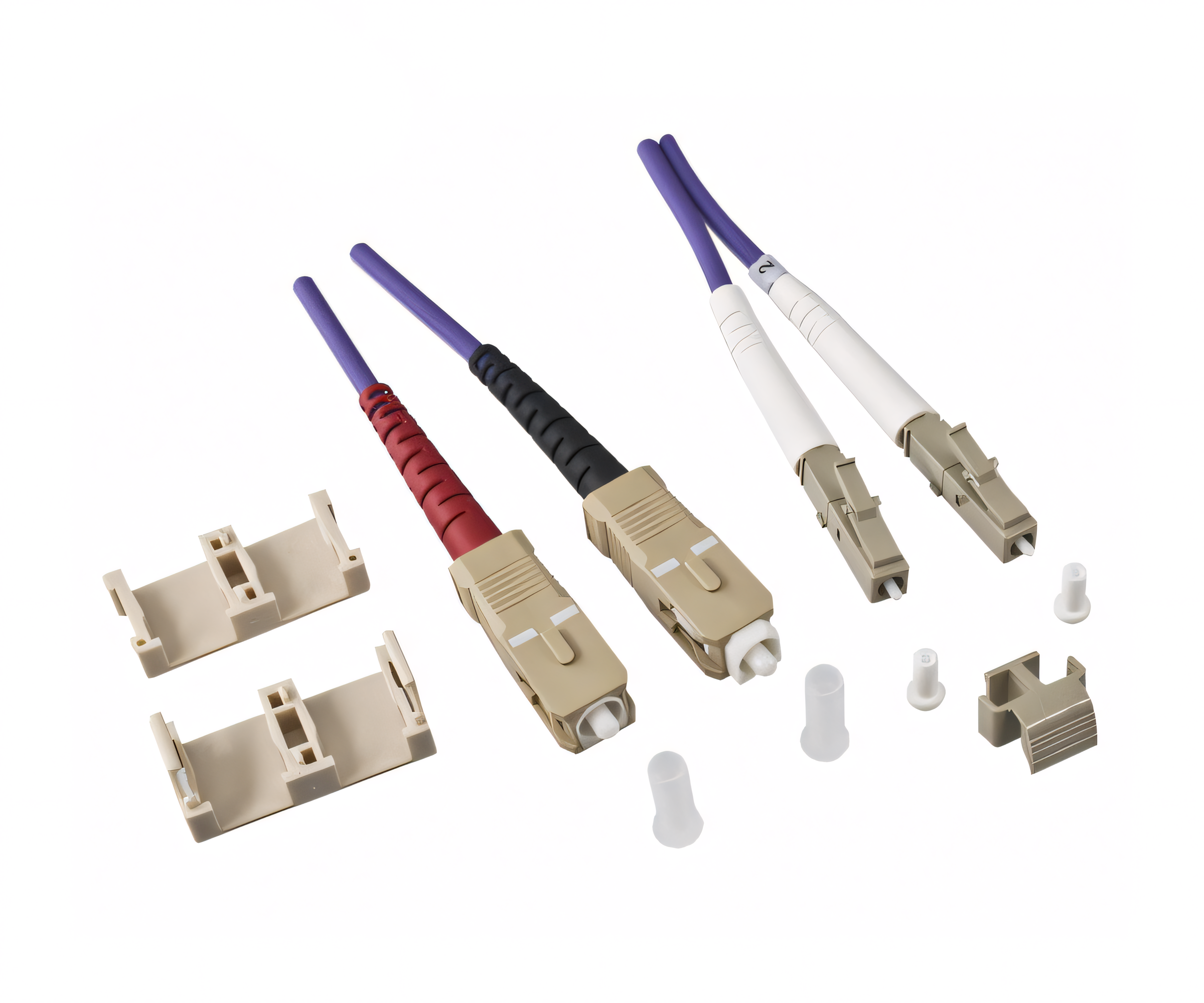

• 1 x DINIC OM4 fibre optic patch cable, LC/SC, duplex, 50/125 µm, 2 m, LSZH, eric violet, bulk
