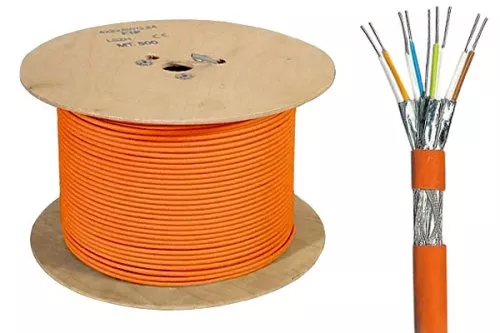

Cat.7 network installation cable, PiMF, 100Ohm, 10GB, AWG 23, 1000 MHz, FRNC-B, orange, length 500m

.png)

.png)
Cat.7 network installation cable, PiMF, 100Ohm, 10GB, AWG 23, 1000 MHz, FRNC-B, orange, length 500m
INFRALAN® network installation cable Cat.7, 1000 MHz, 10Gbit
S/FTP 4 x 2 x AWG 23/1 PiMF, FRNC-B, 100 Ohm
The INFRALAN® data cable 99980.x is designed for transmissions up to 1000 MHz and exceeds the requirements of category 6, 6A, 7 with its electrical transmission properties. Cabling routes of channel class E, EA, F and FA according to ISO/IEC 11801 (AMD 2:2009) or EN 50173-1 (2009) are constructed with this cable. The individual stranded pairs are protected against radiation into the cable with a shielding foil (PiMF) and an overall braided shield; this excellent protection also prevents signals from radiating out of the cable. This shielding guarantees compliance with the interference emission according to class B EN 55022, as well as interference immunity according to EN 55024. The stranding of the individual pairs is optimised so that the propagation time difference between the pairs (skew) is minimal with the greatest possible decoupling (crosstalk). Transmissions of 10 GBit according to IEEE 802.3 are easily possible with this cable.
Properties
- Conductor: bare copper wire, Ø 0.56mm (AWG23)
- Insulation: Foam-skin polyethylene, Ø 1.35mm
- Stranding: 2 cores to pair
- Pair shielding: Aluminium-coated plastic composite foil
- Stranding to core: 4 pairs (PiMF)
- Overall shielding: tinned copper braiding (approx. 35% coverage)
- Colour: orange
- Length: 500m
DIN EN 50173 defines the bending radii for copper cables:
- Smallest bending radius during installation: 8 times the cable diameter.
- Smallest bending radius after installation (only once): 4 times the cable diameter.
The product standard DIN VDE 0298 Part 3 specifies the permissible bending radii for electrical cables as a function of the cable diameter Ø:
For multi-core conductors of plastic-insulated cables:
- 4 x Ø
For flexible cables with free movement:
- Ø = 8 to 12mm: 4 x Ø
- Ø = 12 to 20mm: 5 x Ø
For flexible cables with fixed installation:
- Ø = 8 to 12mm: 3 x Ø
- Ø = 12 to 20mm: 4 x Ø
If bending radii are not adhered to when laying cables, material stretching and compression will lead to changes in the mechanical structure of the cable, resulting in an impairment of the electrical properties.
