DINIC 8 Port Gigabit Switch 10/100/1000Mbit internal power supply unit

DINIC GigaBit Switch 8 Port

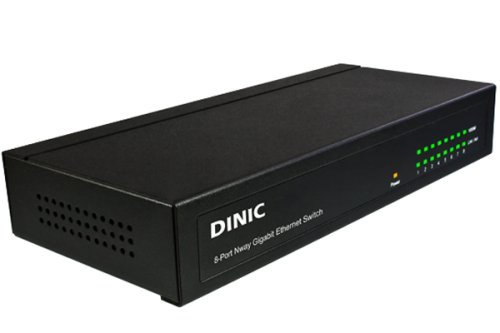

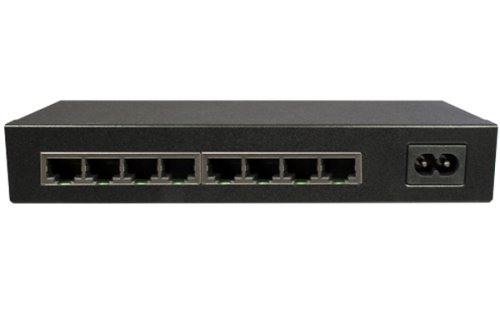

The DINIC 8-Port 10/100/1000M Switch (N-SW-8A) is designed for easy installation, high performance and above all reliability. It delivers maximum speed to all ports even when full duplex mode is busy. Each port of the N-SW-8A, has automatic cross-over detection which allows uplink to another switch without crossover cables. The compact and robust design conceals an internal power supply and is ideally suited for the SOHO or workplace. Each port can be connected to any type of network technology, including other switches, computers, servers, televisions, etc. and is automatically recognised.

Performance features:

• 8 ports
• MAC address entries 1K / 4 K
• Cache N/A
• Jumbo frames 9 KB
• LED for link, power, 1000M
• Power supply, internal 100-240V/AC, 50~60Hz
• Power consumption max. 6 Watt
• Certificates FCC Class B, CE

Standard:

• IEEE 802.3 10BaseT
• IEEE 802u 100BaseTX
• IEEE 802.3ab 1000BaseT
• IEEE 802.3x Flow Control

Packaging dimensions DINIC box

• Width: 210mm
• Height: 60mm
• Depth: 160mm

Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
