Cat. 6 network socket, double, RJ45 sockets

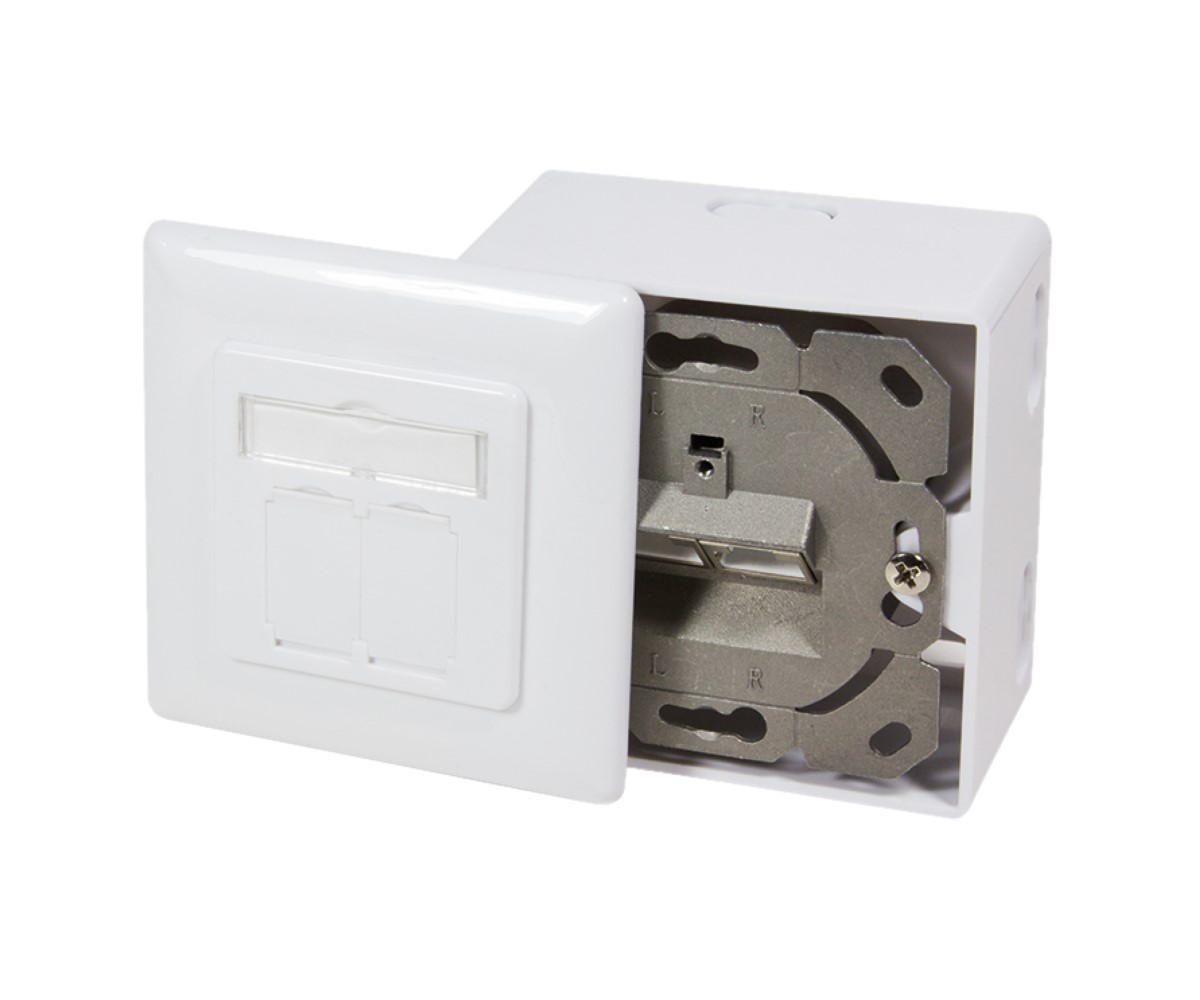

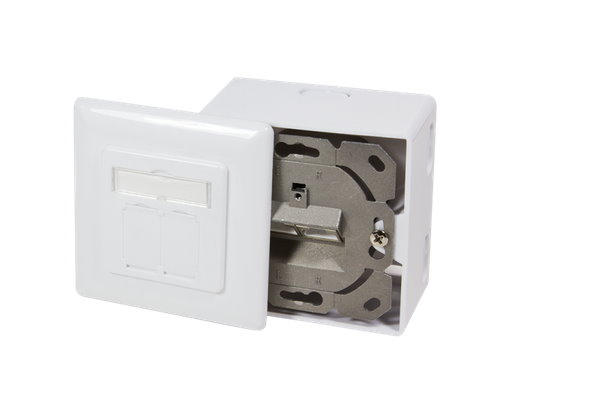

This Cat. 6 network socket is suitable for flush-mounted, surface-mounted or cable duct installation, the surface-mounted frame is included in the scope of delivery.

Performance features:

• Network socket Cat.6. fully shielded, with surface-mounted housing
• Cat.6 according to ISO/IEC 11801 and TIA/EIA-568
• Horizontal cable entry with strain relief
• LSA insulation displacement connection for AWG 22-24
• 2 shielded R45 sockets 40° angled

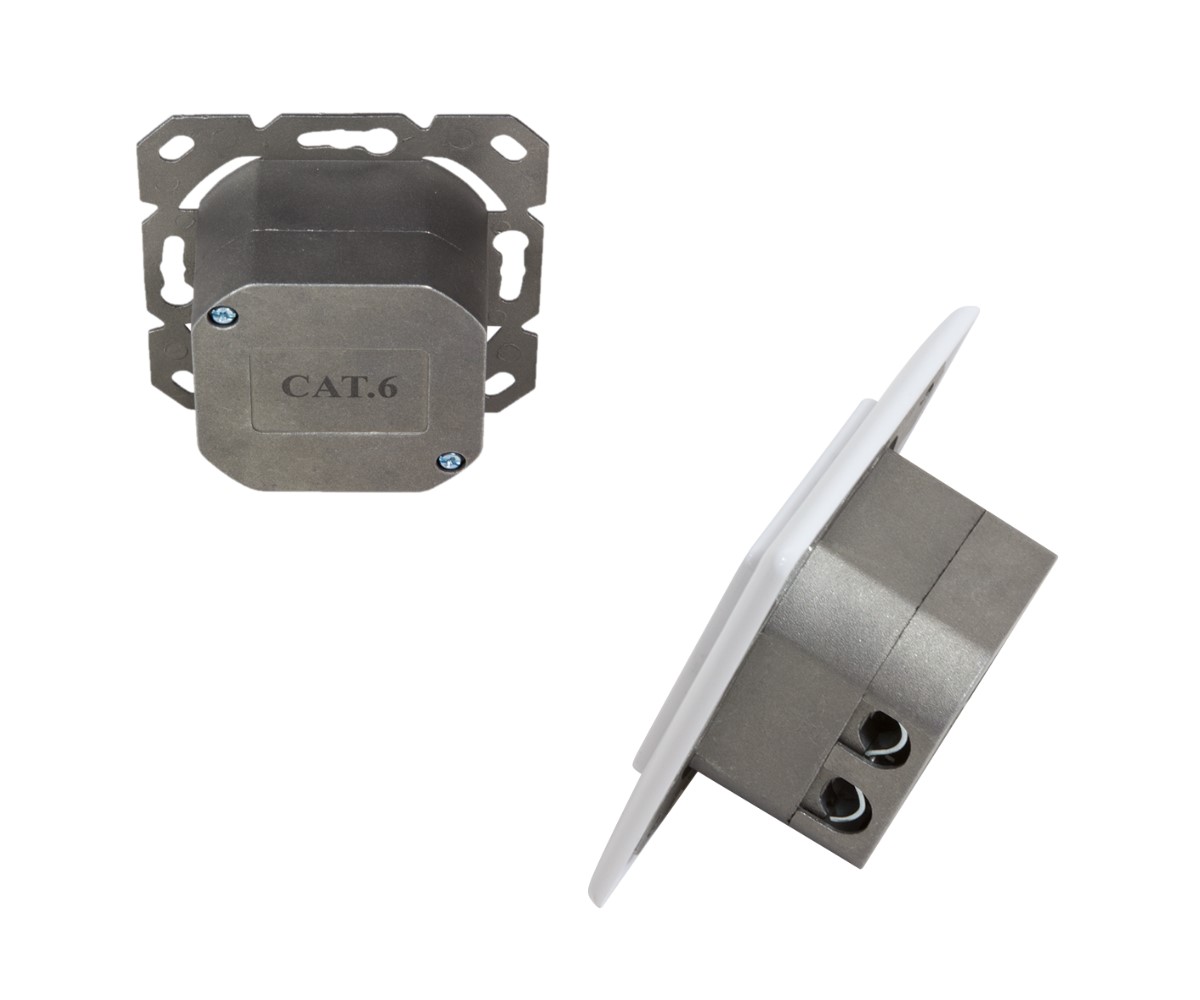

• Robust die-cast zinc housing with strain relief
• Flush-mounted, surface-mounted or cable duct installation
• Colour: Signal white, similar to RAL 9003

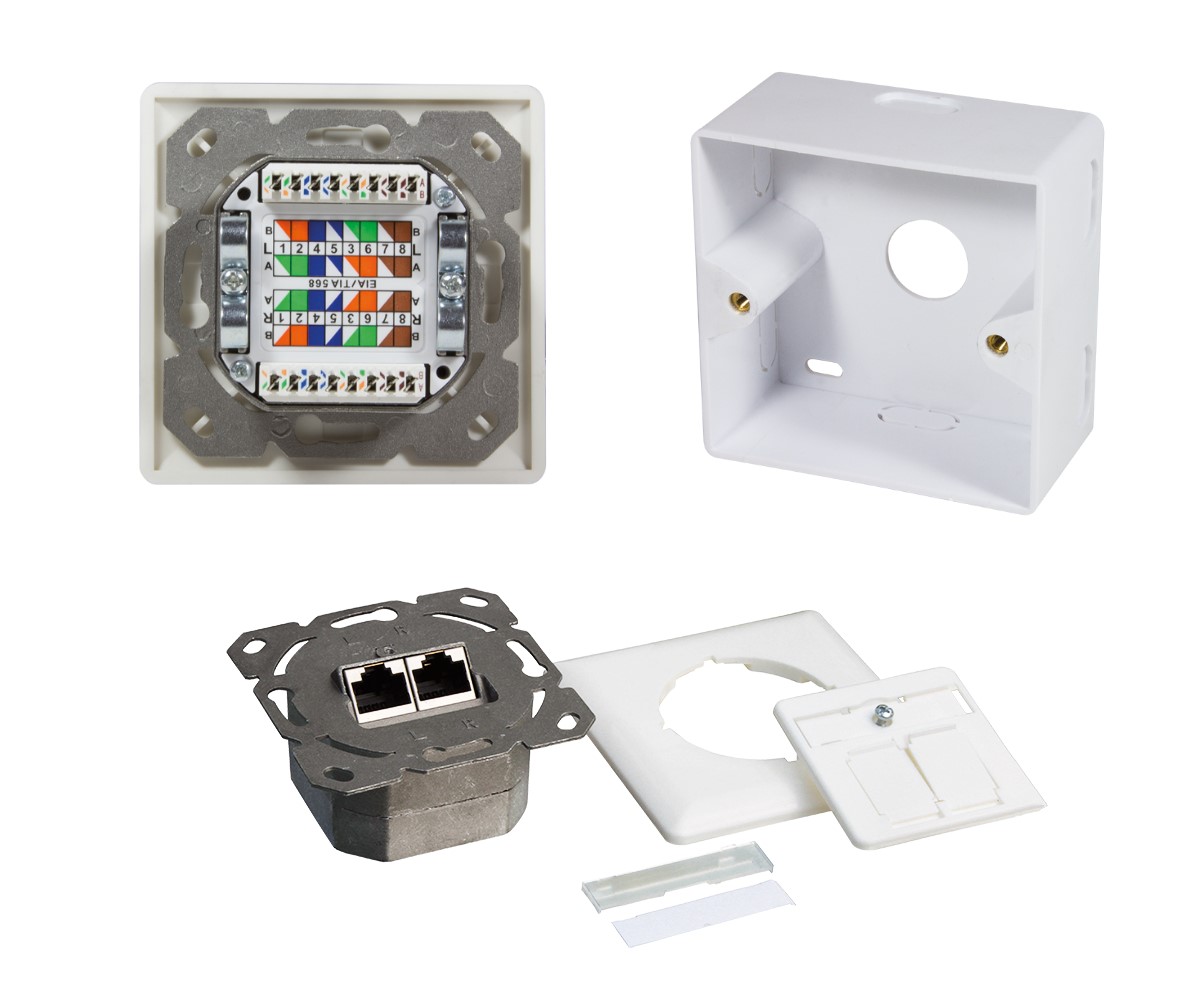

• Surface-mounted housing included in the scope of delivery
• Supports PoE, PoE+ and PoE++
• cable feed
• Fully shielded
• Packaging: Neutral cardboard box

Advantages for the customer and the fitter on site

• Basic housing is round and smaller, making it easier to install in cable ducts and flush-mounted electrical boxes
• Cable feed optionally from the right or left or both sides simultaneously
• Only a single box plus surface-mounted housing required for surface and flush mounting
• Fitters on site only need the additional surface-mounted housing to be flexible (sus the flush-mounted to make a surface-mounted box)
• Surface-mounted housing offers more space for cable routing
• Correct strain relief via clamping screw

LSA connection technology

In communication technology, a special tool, known as a lay-on tool, is used to press the wires of a cable together with their insulation individually into a so-called insulation displacement connector. The excess wire end is shortened by the tool and the insulation of the wire is cut through by the sharp contacts in the metal insulation piercing terminal, creating a gas-tight electrical connection. This connection technology works without soldering, screwing or stripping, which is why it is also known as solderless, screwless and stripping-free technology, or LSA technology for short. The brand name "LSA-PLUS" from ADC Krone is also derived from this.
