Technical highlights

• 3.5mm stereo jack plug (3-pin) to 2x cinch plug (stereo left/right)
• 2-fold shielding (ALU foil + braiding) for low-interference analogue audio transmission
• AWG 28 copper conductor, round audio cable with PVC inner jacket
• Encapsulated, gold-plated plugs with anodised metal housing and kink protection
• Textile fabric outer jacket for increased abrasion resistance and a high-quality feel
• Cable length 2.5m, colour black
• Packaging: DINIC box with Euro hole - suitable for presentation in specialist shops

Product description

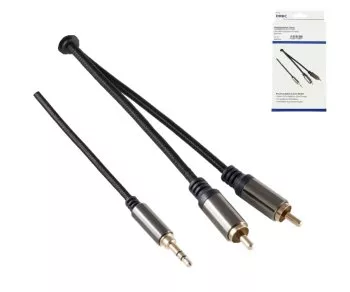

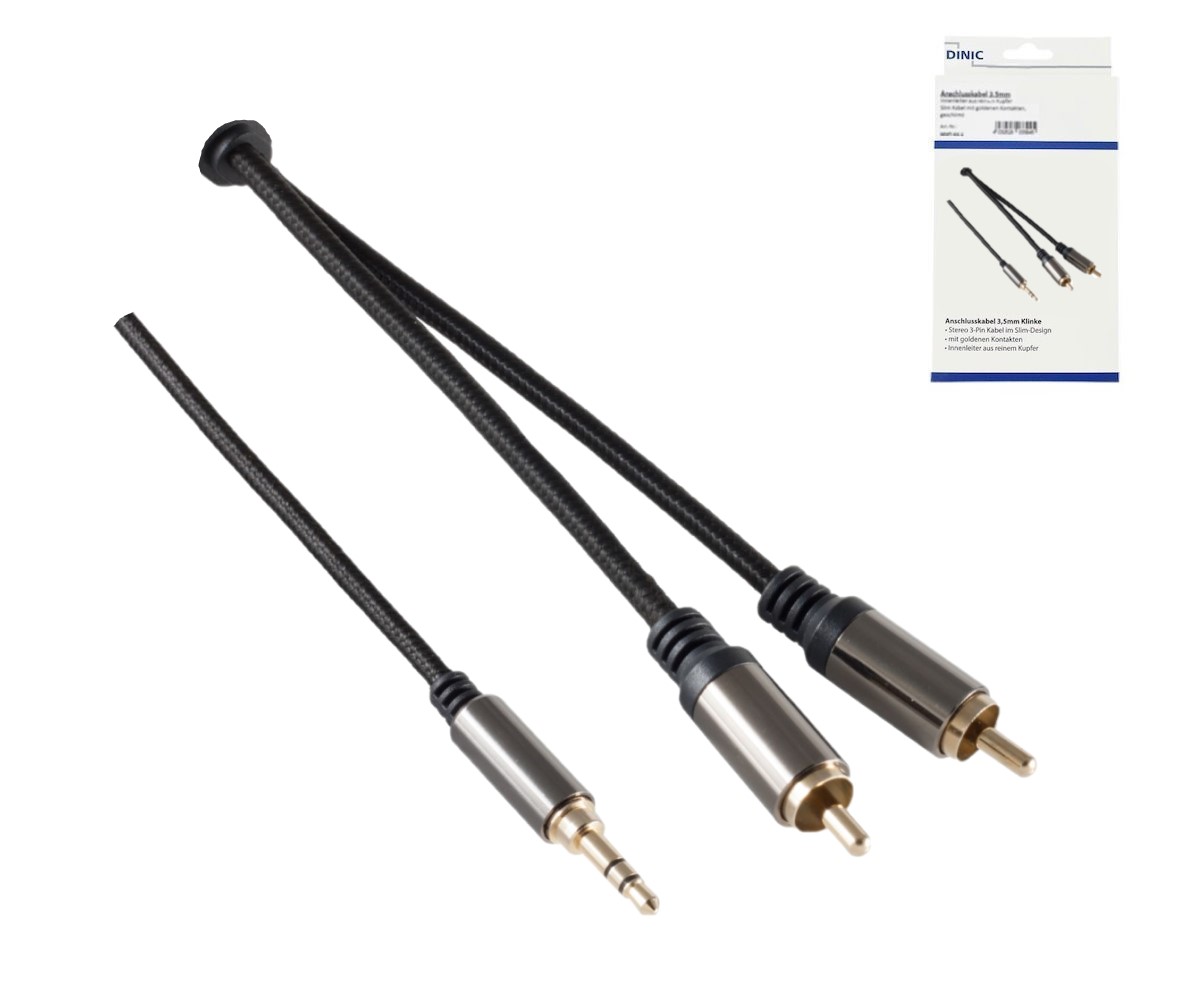

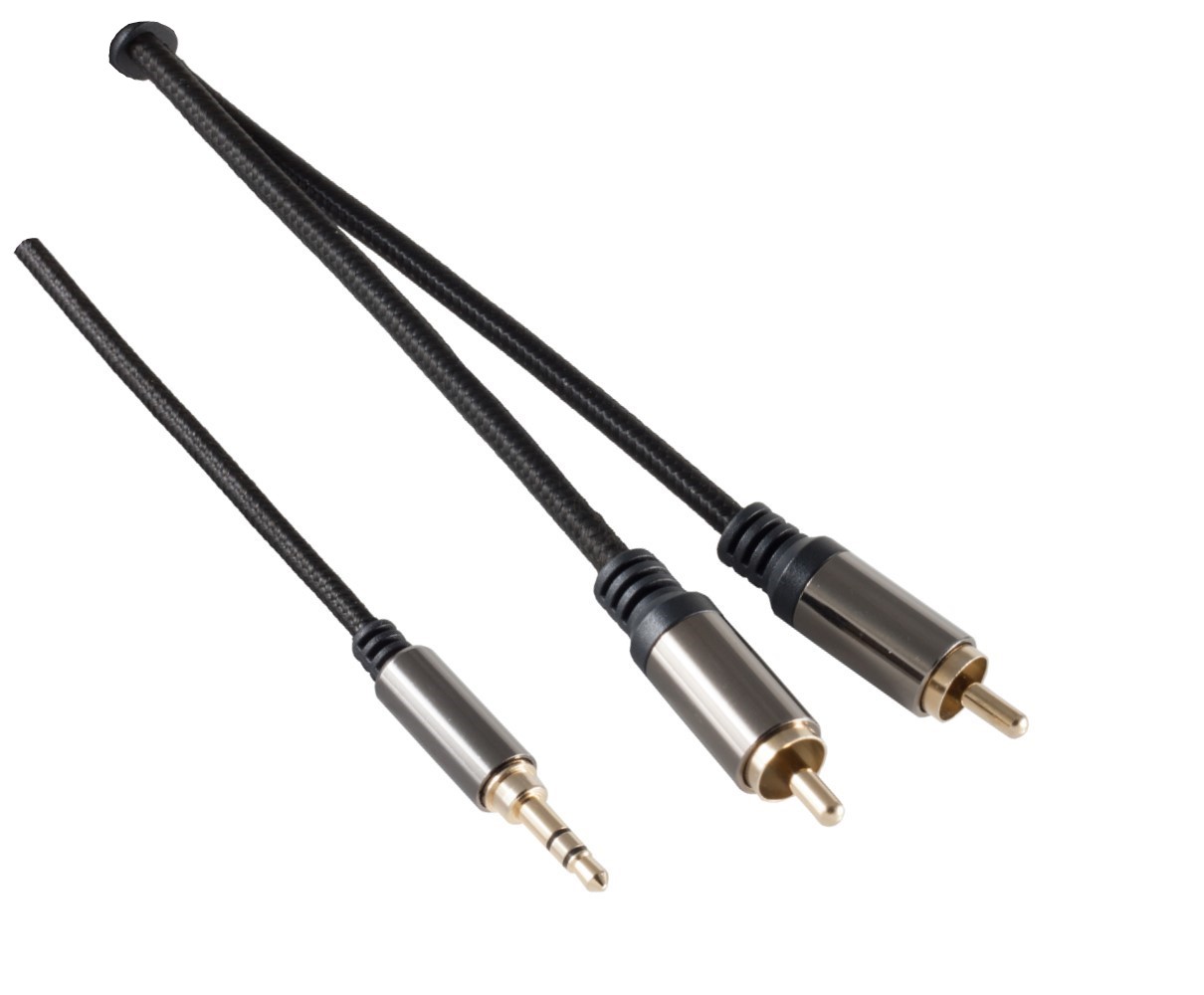

The DINIC HQ jack to cinch adapter cable is used to transmit analogue stereo audio signals from sources with a 3.5mm jack output to end devices with cinch inputs. Typical applications are the connection of mobile players, PCs or media players to amplifiers, mixing consoles, active loudspeakers or hi-fi/sound technology with cinch interface.

The 3.5 mm jack plug (3-pin, stereo) on one side and the two RCA plugs (left/right) on the other side are moulded and have gold-plated contacts and anodised metal housings. This reduces contact resistance and ensures a robust mechanical design, even with frequent plugging in a professional environment.

The cable construction with copper conductors (AWG 28) and double shielding made of aluminium foil and braiding enables stable, low-interference signal routing. The PVC cable sheath is protected by a textile fabric outer sheath, which increases abrasion resistance and improves ease of installation. Integrated bend protectors on the connectors reduce mechanical stress in the transition area to the cable.

With a length of 2.5 metres, the cable offers additional scope when positioning audio sources and target devices, for example in racks, media furniture or permanently installed sound systems. Delivery in a DINIC box with Euro hole facilitates storage, order picking and presentation in specialist stores or technical warehouses.

Areas of application

• Connection of mobile audio sources with 3.5mm jack to amplifiers or active loudspeakers with cinch input
• Media technology in conference, meeting and training rooms
• Sound reinforcement technology, DJ and PA environments with RCA feeds
• Studio, control room and production environments for analogue stereo feeds
• Service, maintenance and test setups in IT, system house and technology workshops

Technical data

Item number	MM-K2C-HQ-2KB
Product type	HQ jack cinch audio adapter cable
Connections	3.5mm jack plug 3pin (stereo) to 2x RCA plug (stereo L/R)
Connection type	3-pin, stereo
Shielding	2-fold (ALU foil + braiding)
Conductor construction	AWG 28
Conductor material	copper
Plug design	Moulded plug with bend protection
Plug material	CuZnNi, gold-plated; anodised metal housing
Contact surface	Gold-plated
Cable type	Round cable
Cable sheath inside	PVC
Outer sheath	Textile fabric, black
Outer diameter	approx. 3.9mm
Cable length	2,5m
colour	Black colour
Packaging	DINIC box with Euro hole
EAN CODE	4032528039749
manufacturer	MAG GmbH

Compatibility

Suitable for all devices with 3.5mm stereo jack output in conjunction with end devices with cinch/RCA stereo inputs (left/right).

• Audio sources with 3.5mm stereo jack (e.g. laptops, media players, mobile players)
• Amplifiers, receivers and mixing consoles with cinch stereo inputs
• Active loudspeakers, active monitors and compact sound systems with RCA inputs
• Audio and media technology in conference, training and presentation environments

Scope of delivery

1x DINIC HQ jack to cinch adapter cable, 3.5mm jack plug 3pin to 2x cinch plug, black, length 2.5m, packed in DINIC box with Euro hole.

DINIC is a MAG GmbH brand for pre-assembled cables and connection technology in the professional environment.
