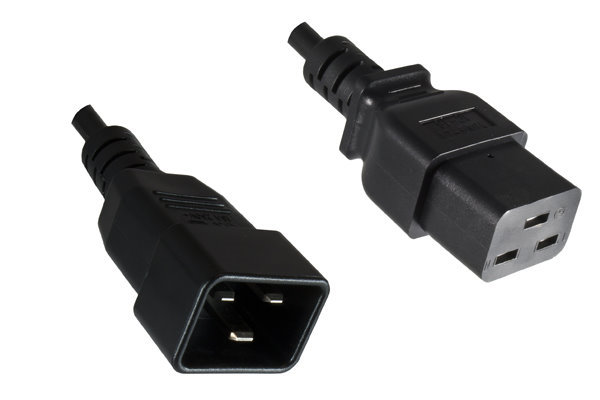

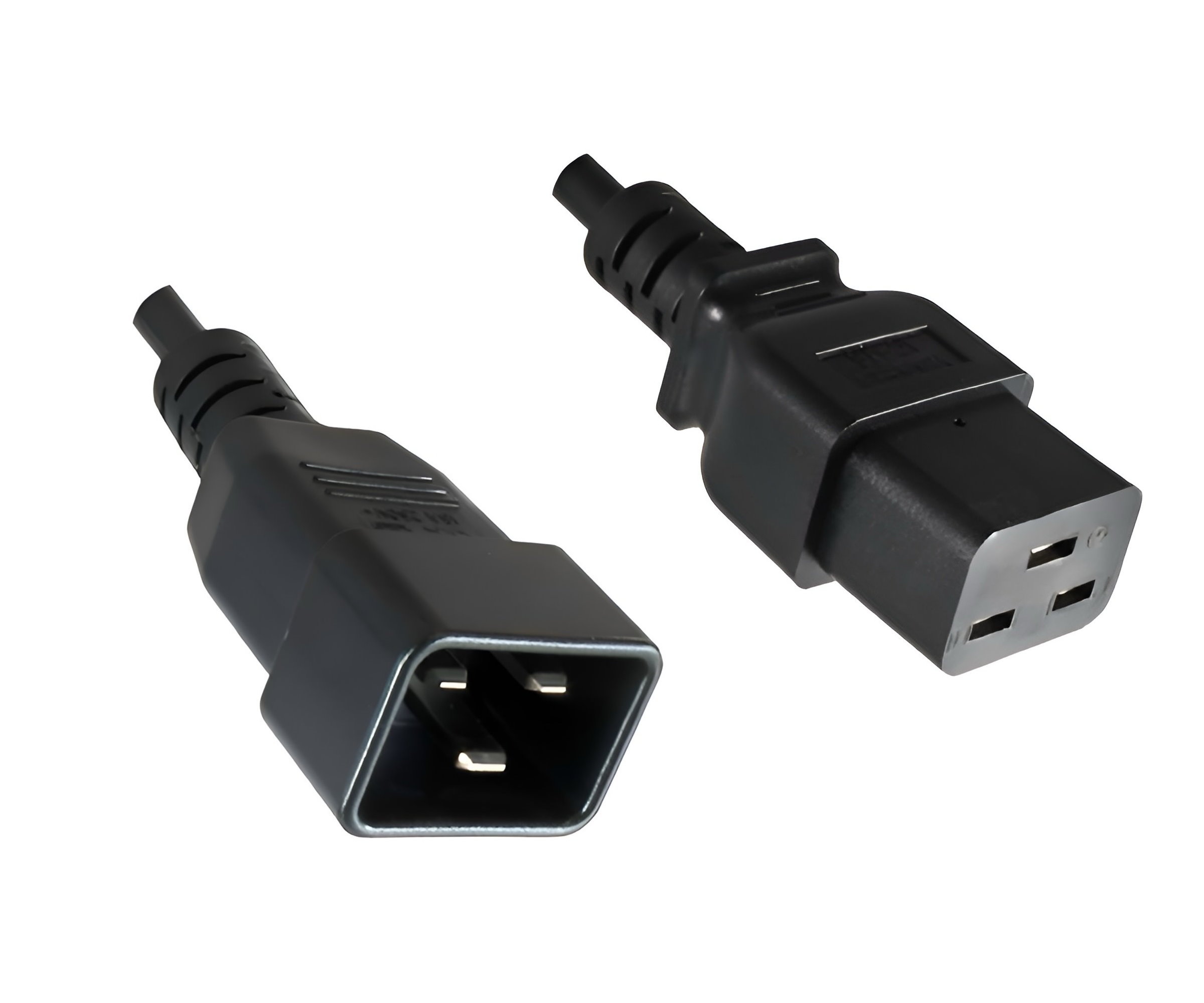

Power cable LSZH - C19 to C20, black, 1.80m
MAG part no.: CB-19-20-ZH (YP-33Z/YC-18Z)
- Connector: C19 to C20
- Color: black
- length: 1,80m
- Cross section: 3 x 1,5mm²
- Material: H05Z1Z1-F
- Approval: VDE, ENEC
- RoHS compliant
- Packing: Bulk
- Cable and plug are LSZH certified

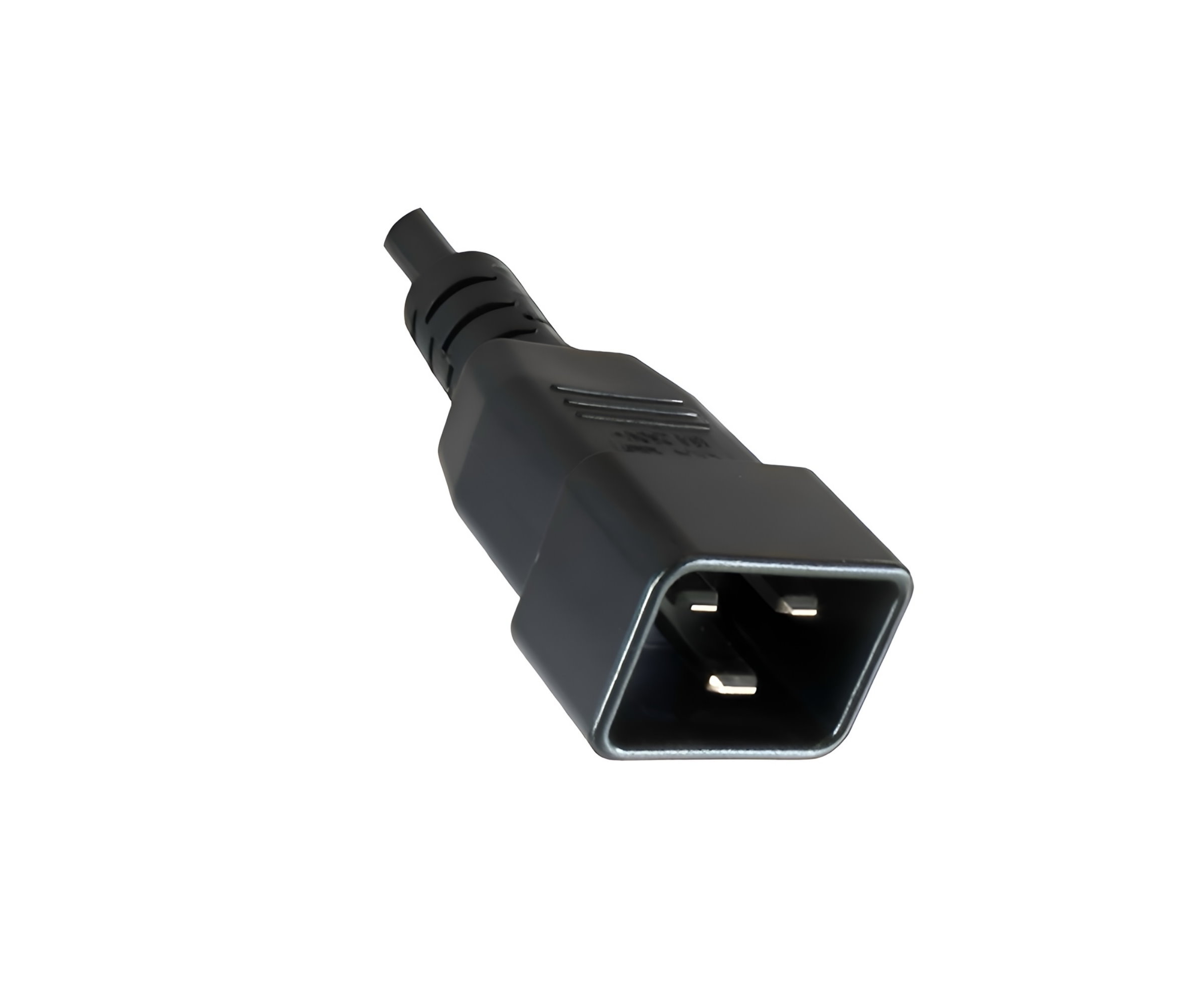

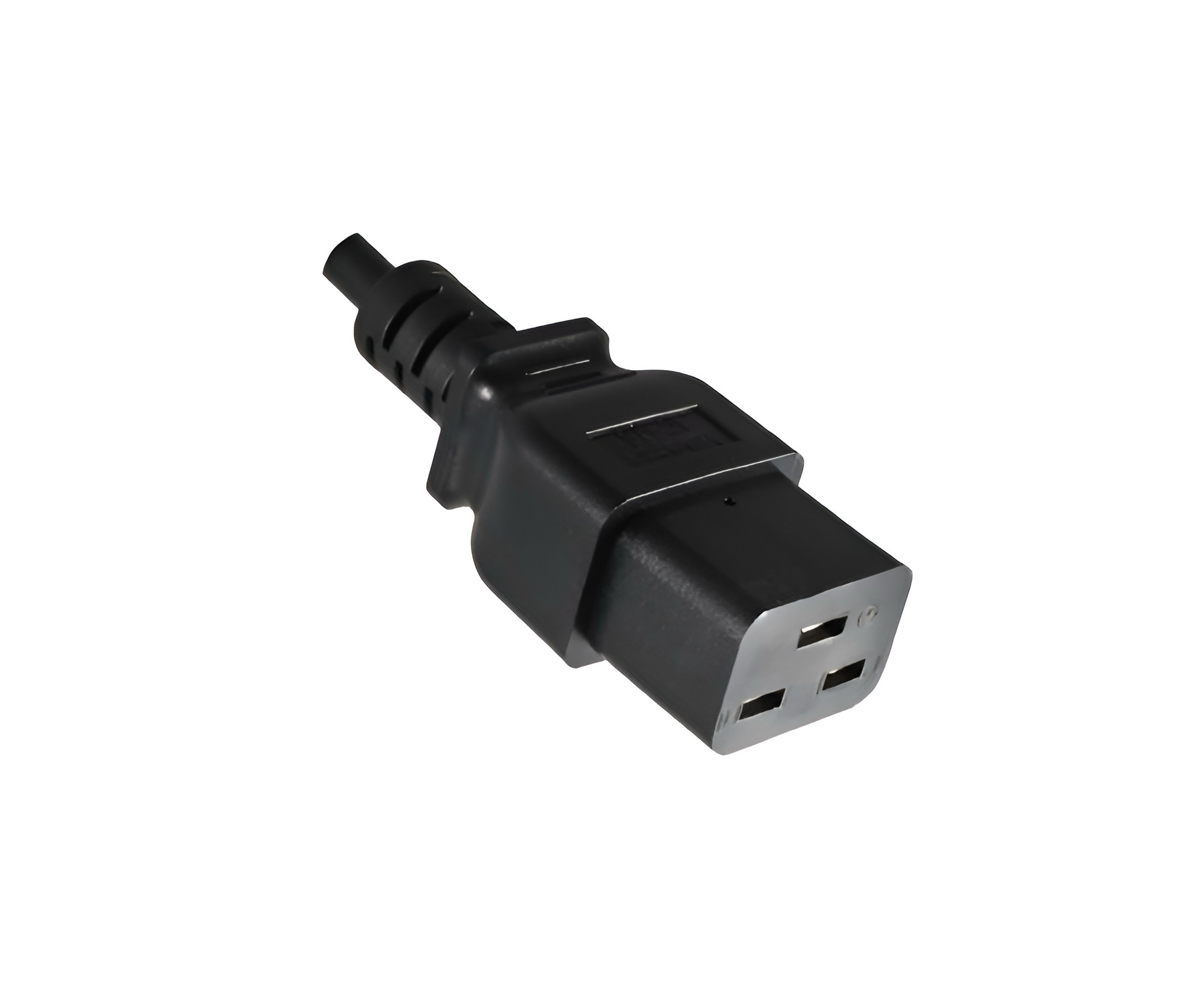

Plug C19 - YC-18 / Plug C20 - YP-33
IEC 60320-C19 is the cold appliance plug variant for 16 A. The designation C19 describes the female form, while C20 is the male form.

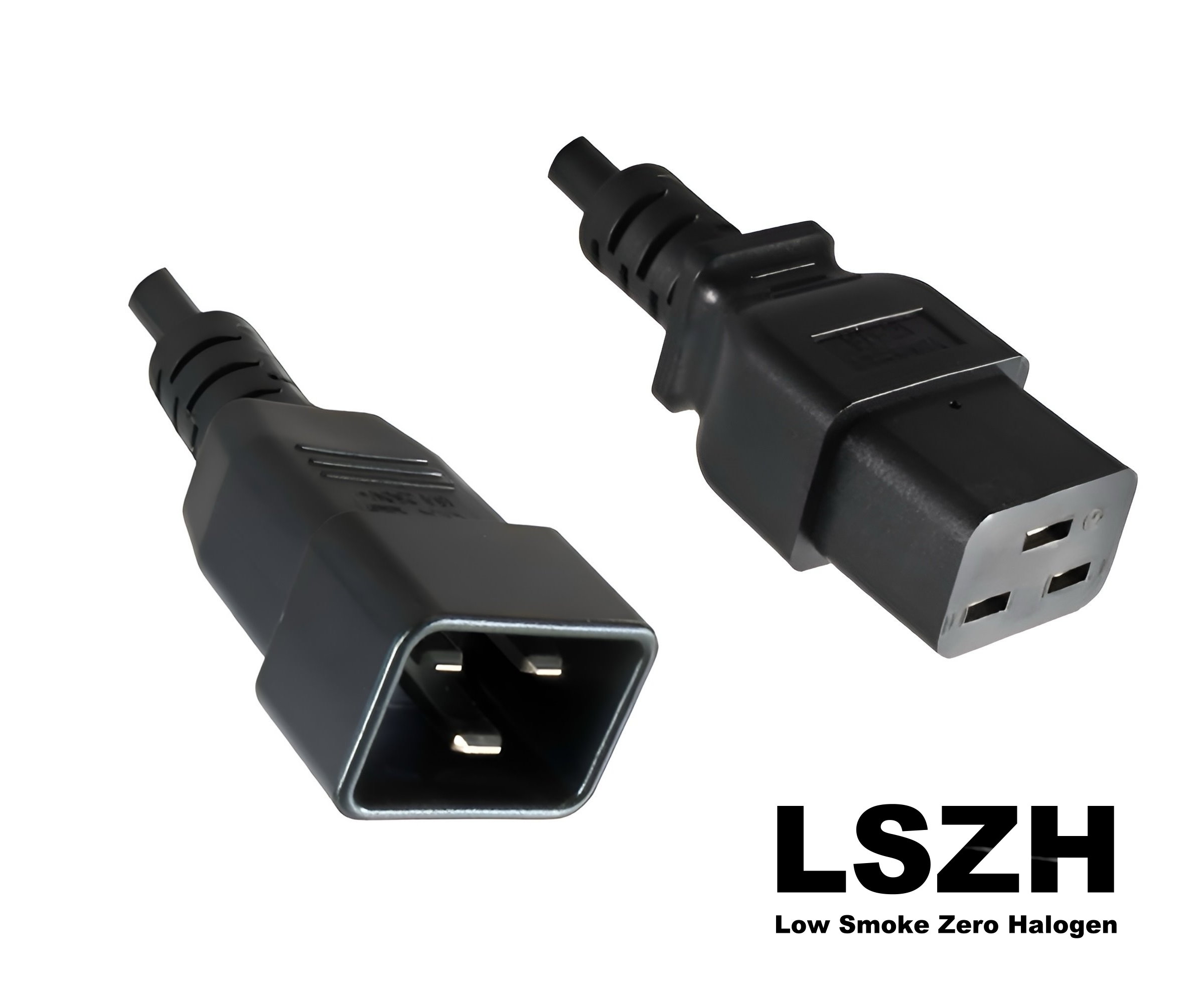

LSZH Low Smoke Zero Halogen
The designations Low Smoke Zero Halogen (LSZH) or Low Smoke Free of Halogen (LSFOH) are used in cabling technology for the classification of cable material. This refers to the behavior of thermoplastic materials in the event of fire, and to the flammability or flame resistance of the sheathing material of transmission cables. Low smoke means that the cable material produces little smoke in the event of a fire, and zero halogen means that it is halogen-free. In case of fire, such a cable material will not release corrosive or caustic acids.
