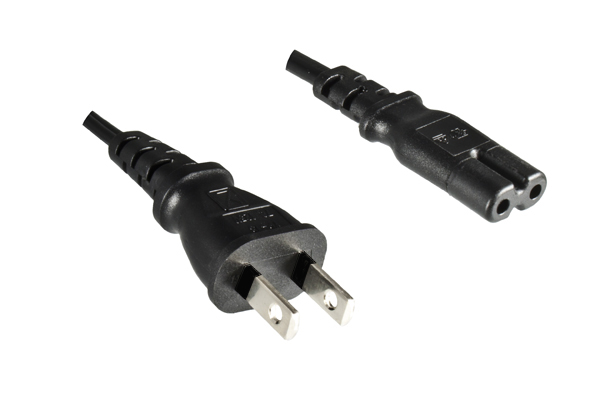

Power Cable for Japan (JPN) - Type I to C7, Black, 1.80m
*Important Note* Since 09/18/2015, it is a legal requirement that Japanese plugs pass a "Proof Tracking Index (PTI) Test" and a "Glow Wire Ignition (GWI) Test". The corresponding certificates can be found under the "Downloads/Documents" tab.
MAG Part No.: CB-8-J (YP-13/YC-13)
- Connector: Type A to C7
- Color. black
- Length: 1,80m
- cross section: 2 x 0,75mm²
- Material: VFF
- Approval: PSE, JET
- RoHS compliant
- Packing: Bulk
Countries:
Japan
Connector Type A (JIS C 8303) (YP-13)
The NEMA-1 connector has two flat contacts arranged parallel to each other at a distance of 12.7mm (0.5 inch). The plugs are used for small loads up to 125V/7A.
Plug C7 (YC-13)
Small appliance plug IEC 60320-C7, known as Euro or Euro 8 plug. This plug is approved by VDE for consumption up to 2.5A at a maximum operating temperature of 70°C.
