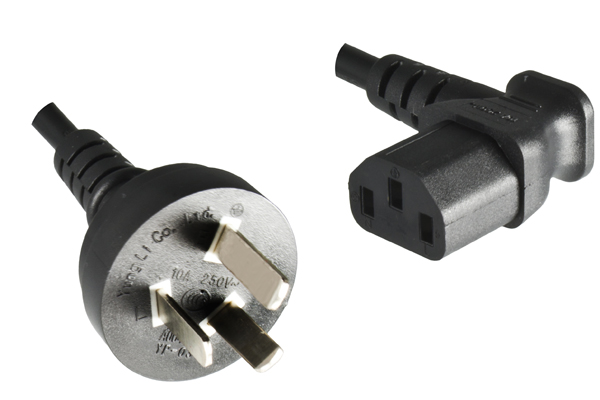

Power cable China (CHN) - Type I to C13, black, 1.80m
MAG Part No.: CB-N-CH-90 (YP-03/YC-12L)
- Plug: Type I to C13 90° angled
- Color: black
- length: 1,80m
- cross section: 3 x 0,75mm²
- Material: H05VV-F
- Approval: CCC
- RoHS compliant
- Packing: Bulk
Countries:
China

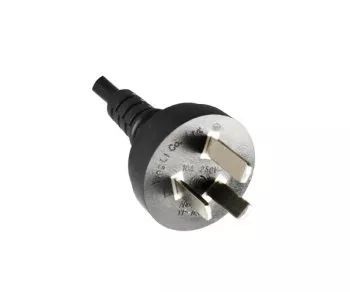

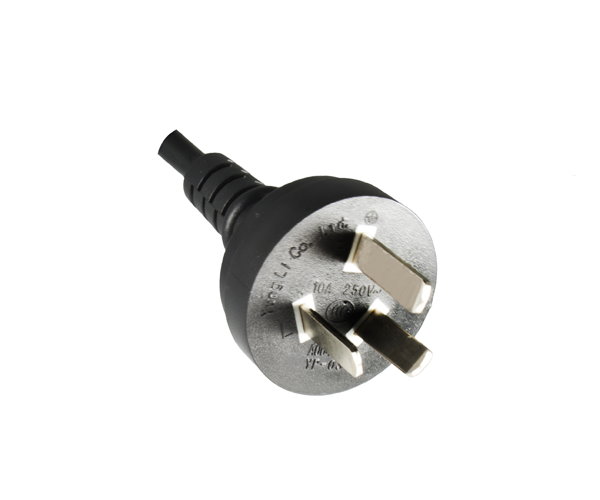

Connector type I - CPCS-CCC (YP-03)
In China there is a very similar and mechanically compatible standard to the Type I AS-3112 (Australia). The most important difference is that the plugs are turned 180°. The protective contact is therefore at the top and not at the bottom.

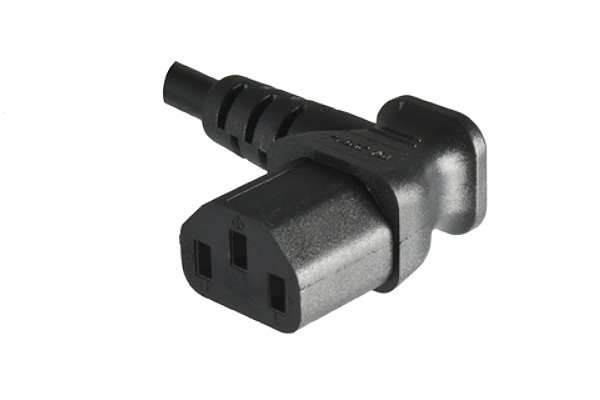

Plug C13 (YC-12L)
IEC 60320-C13 is used for power connection of devices that do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.
