Power cable America USA NEMA 6-20P to C19, AWG 12, 20A, STOW, approvals: UL/CSA, black, length 1.80m

Mobile Preview: Power cable America USA NEMA 6-20P to C19, AWG 12, 20A, STOW, approvals: UL/CSA, black, length 1.80m

Power cable America USA NEMA 6-20P to C19, AWG 12, 20A, STOW, approvals: UL/CSA, black, length 1.80m

Product No.:: CB-19-US-620
Shipping time:: ca. 3-4 days
Stock:: 506 pieces
EAN:: 4032528034515
Weight:: 0.67 kg per piece

9,90 EUR

plus 19% tax

Description

Description

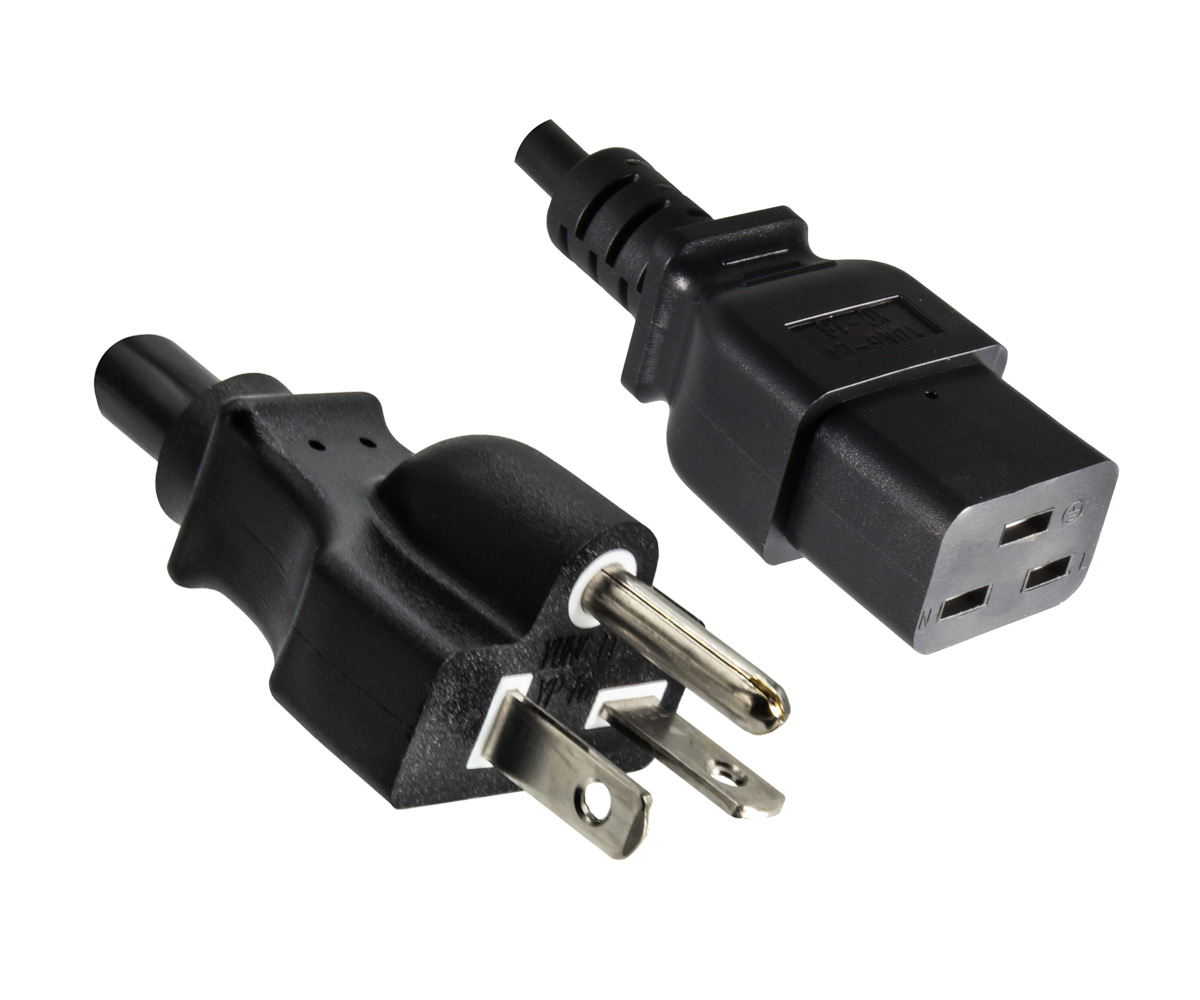

Power cable America (USA) - type NEMA 6-20P to C19, black, 1.80m

MAG part no.: CB-19-US-620 (YP-16/YC-18)

Connector: Type NEMA 6-20P to C19 / 3-pin
Color: black
Length: 1,8m
Cross section: AWG 12 x 3
Maximum 20A
Approval: UL/CSA
RoHs compliant
Packaging: Bulk
Material: STOW

S = Service Grade (also means extra hard service when not followed by J, V or P)
T = Thermoplastic
O = Oil resistant
W = Weather resistant

Countries:
Canada, Mexico, Taiwan, USA

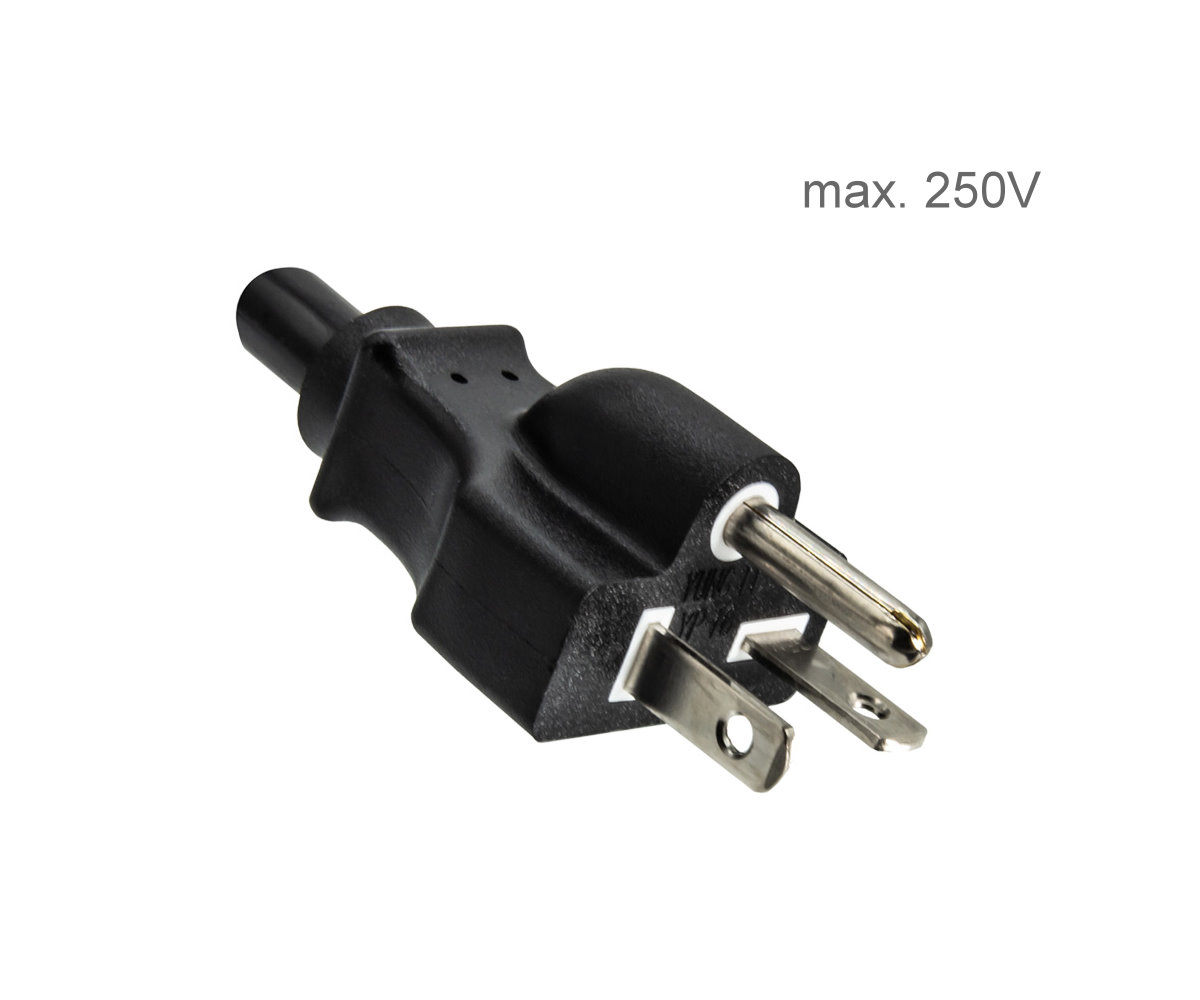

Plug Type NEMA 6-20 (YP-16)
All NEMA 6 devices are three-wire grounding (current-current-ground) devices used for 208 and 240 V circuits and rated for 250 V maximum. The NEMA-6-20P plug has a blade (flat pin) rotated 90° to prevent accidental insertion into an outlet with incorrect voltage.

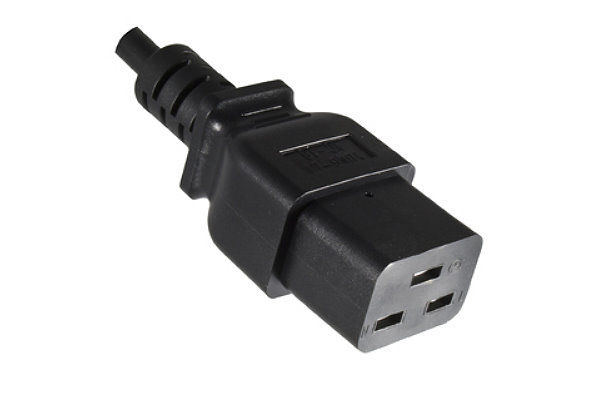

Plug C19 (YC-18)
IEC 60320-C19 cold appliance plug is used for power connection of devices that do not generate heat during operation at higher currents up to 16A (Europe) or 20A (USA).
