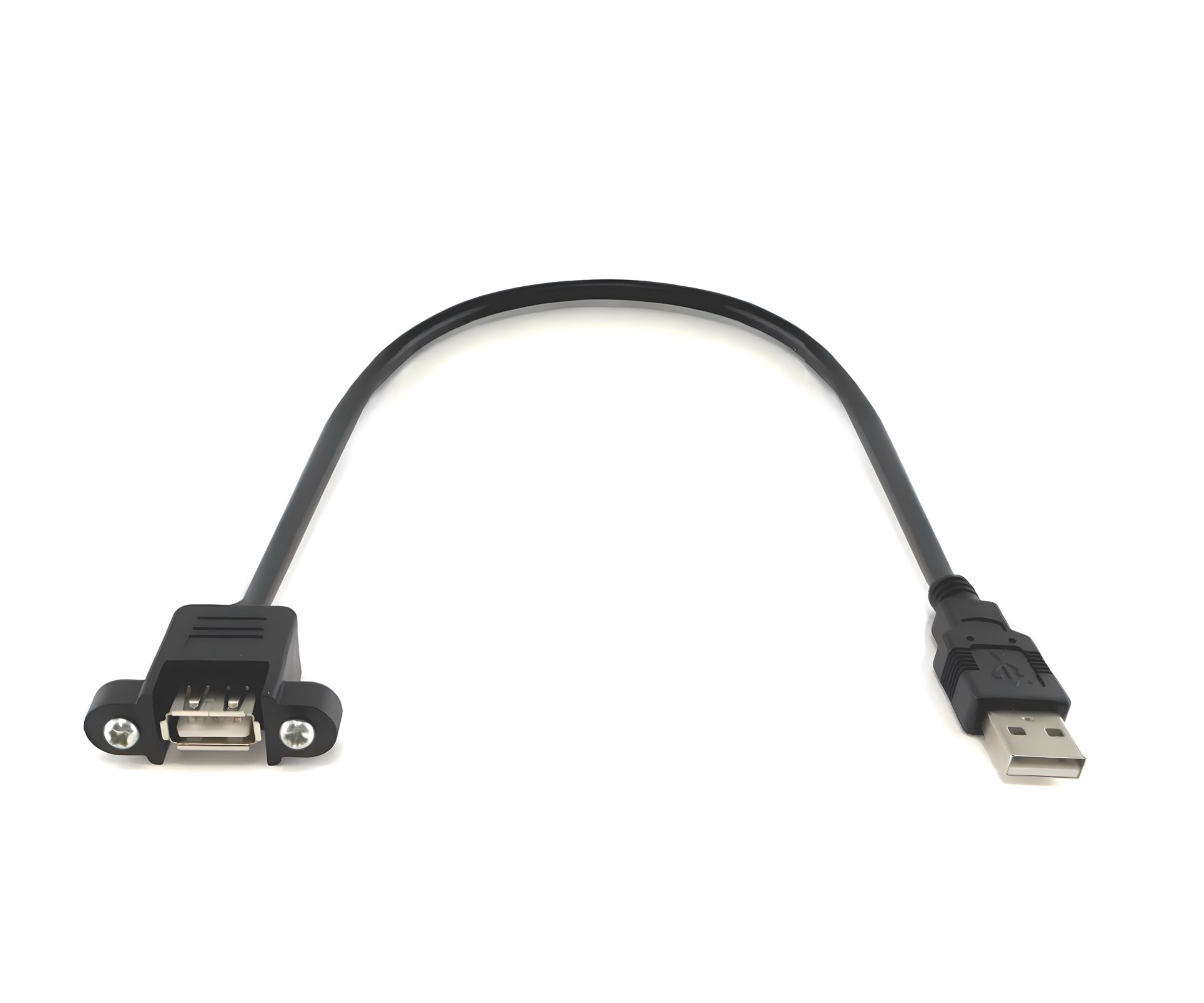

USB mounting cable 1m: USB-A socket (screw-on) to USB-A plug (straight), for USB 2.0 and USB 1.1 (up to 480 MBit/s)
Product description
The DINIC USB mounting cable is a reliable and robust cable designed for various applications where a secure and stable USB connection is essential. With a length of 1m and a straight USB-A connector, this cable offers extended range and flexibility for your devices.
The cable is compatible with USB 2.0 and USB 1.1, enabling a fast data transfer rate of up to 480 Mbps. The wire gauges of 28 AWG/1P and 24 AWG/2C as well as the twisted pair data lines ensure excellent signal quality and performance.

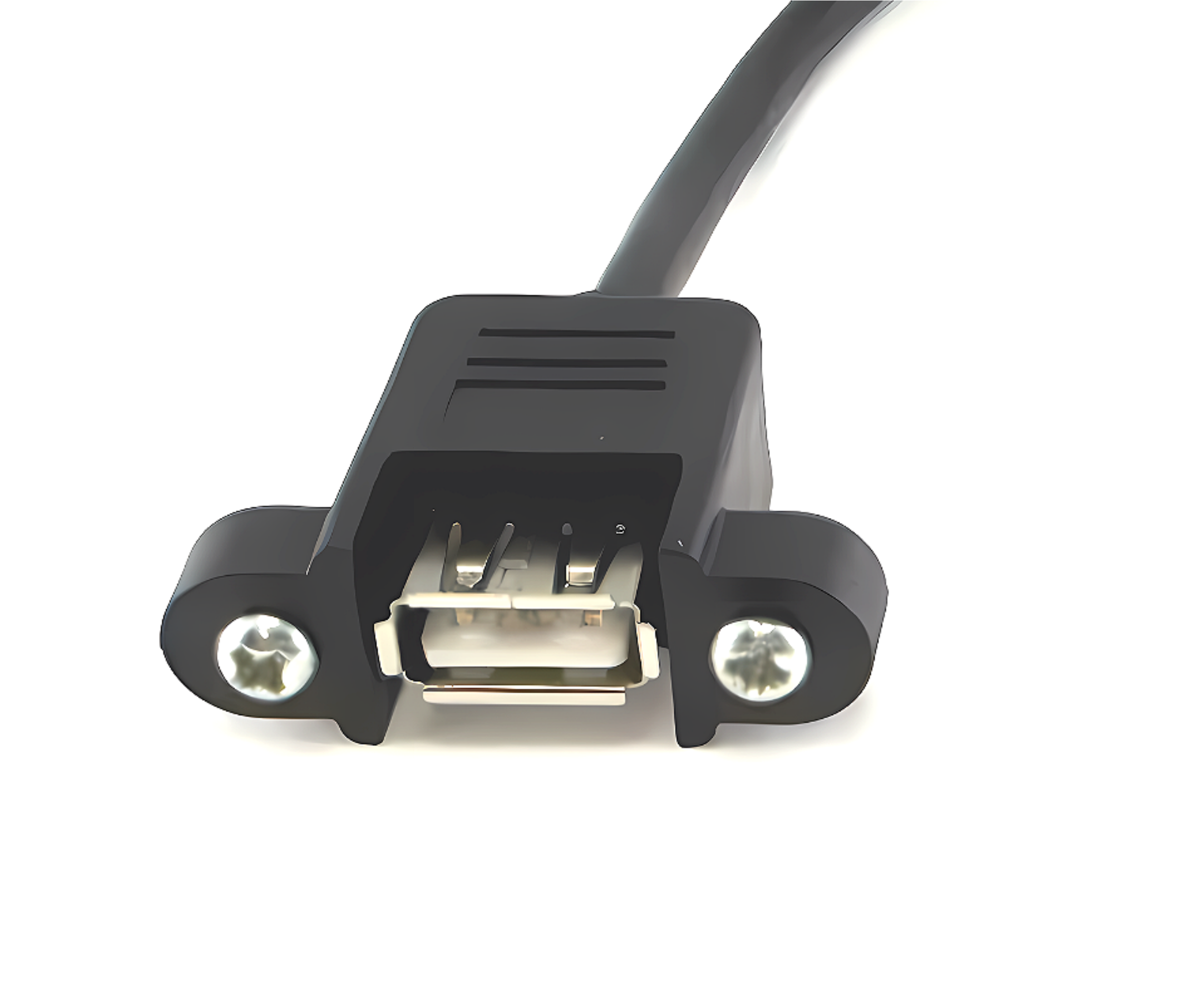

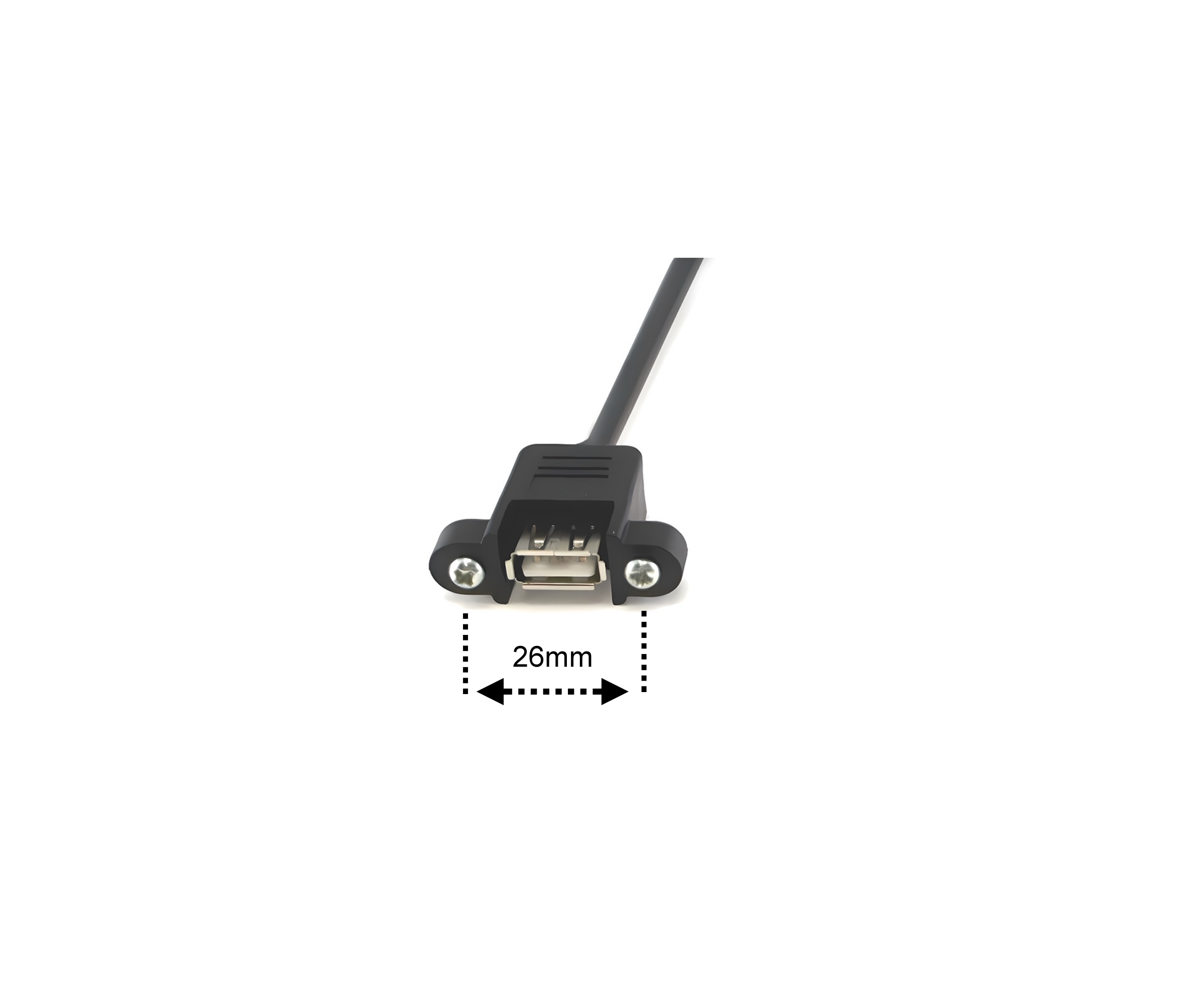

A unique feature of this cable is the screw-on USB-A socket. With a screw spacing of 26mm (see drawings), the socket can be securely mounted on various devices and equipment. This feature effectively transforms the cable into a USB socket, which is particularly useful in environments where a fixed and secure connection is required.
Areas of application
The DINIC USB mounting cable is ideal for use in various environments and applications. It is particularly suitable for:
- 19" systems
- Medical devices
- cockpits
- Control systems
- Sound studios
Scope of delivery
The cable is supplied with 2 pre-assembled screws, which makes it easier to fit the USB-A socket.
Technical details
- Length: 1m
- Connections: USB-A socket (screw-on), USB-A plug (straight)
- Compatibility: USB 2.0, USB 1.1
- Data transfer rate: Up to 480 MBit/s
- Wire gauges: 28 AWG/1P, 24 AWG/2C
- Data cables: Twisted pair
- Screw spacing: 26mm
