Attention: This article is end-of-life (EOL) and no longer available in the regular range

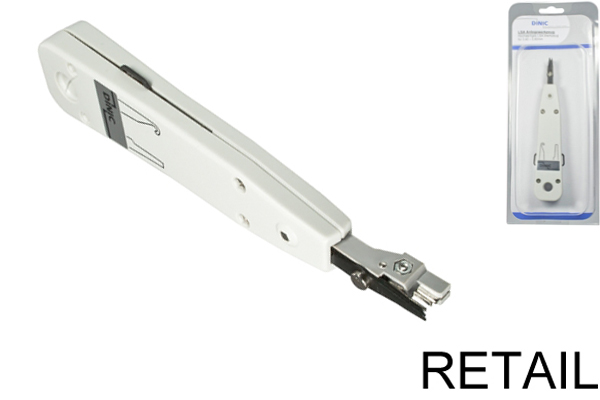

DINIC High-quality LSA application tool 0.40-0.60mm
This product stands out from others due to its low manufacturing tolerances. Not only does it enable indenting and cutting in a single operation, but it also does so without hooks or unnecessary force, as you would expect from a professional tool.
Performance features
- Pulling hook
- Unlocking blade
- Cutting device
- Pressure point sensor
- DINIC Blister
Packaging dimensions (BOX3-30)
- Width: 110mm
- Height: 290mm
- Depth: 30mm
LSA connection technology
In communication technology, a special tool, known as a lay-on tool, is used to press the wires of a cable together with their insulation individually into a so-called insulation displacement connector. The excess wire end is shortened by the tool and the insulation of the wire is cut through by the sharp contacts in the metal insulation piercing terminal, creating a gas-tight electrical connection. This connection technology works without soldering, screwing or stripping, which is why it is also referred to as solderless, screwless and stripping-free technology, or LSA technology for short.
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Safety Information:
Use only under direct adult supervision
