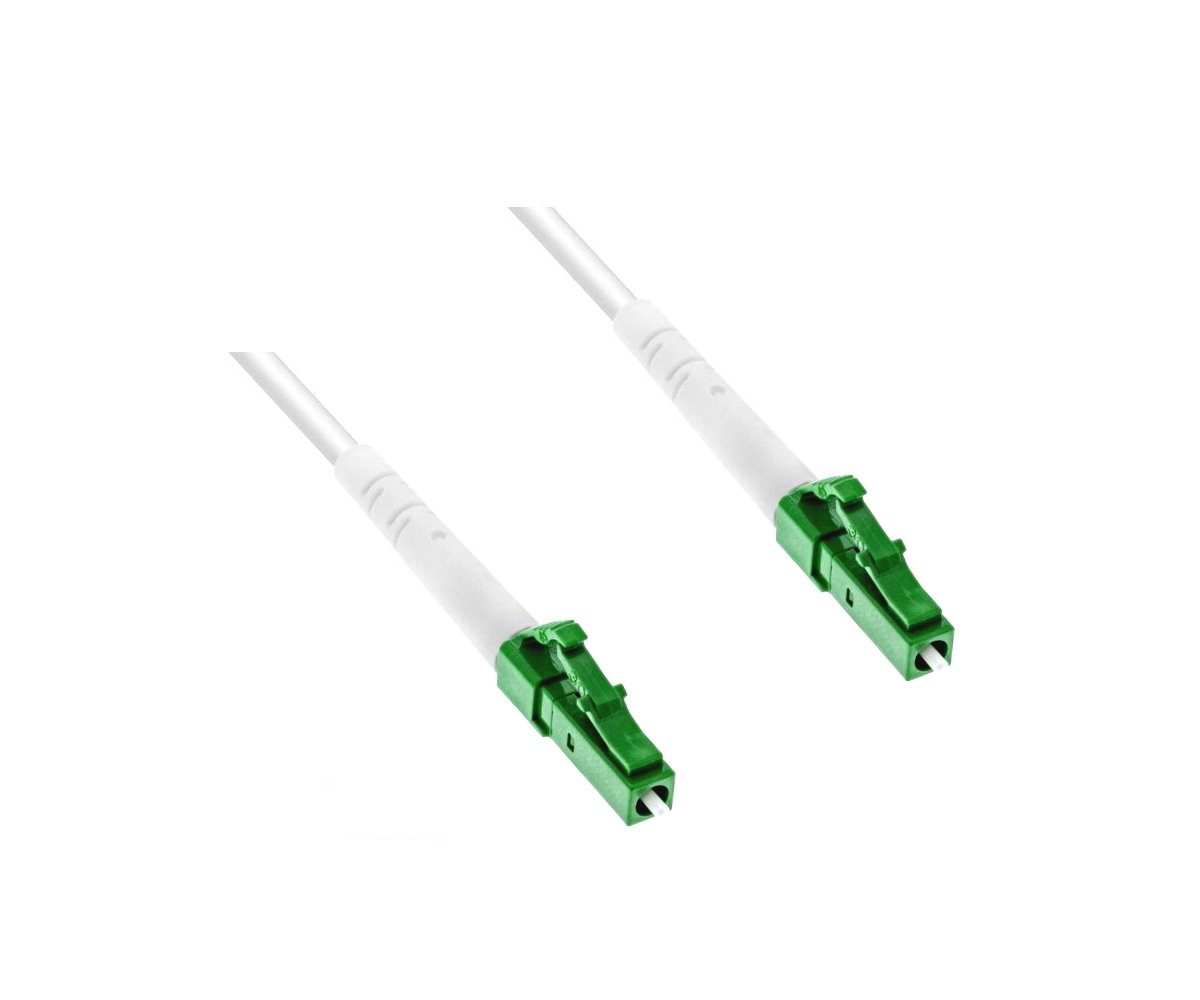

Connection cable for fibre optic router, simplex OS2, LC/APC 8° to LC/APC 8°, 1 m, LSZH, white
Simplex fibre optic connection cable OS2 with LC/APC 8° connectors on both ends and white 2.0 mm LSZH sheath for FTTH and router applications.
Technical highlights
- Simplex OS2 singlemode fibre optic for point-to-point connections
- LC/APC 8° connector on both ends for low-loss singlemode connections
- Length 1 m, compact cable outer diameter 2.0 mm
- LSZH jacket (Low Smoke Zero Halogen) for increased safety in buildings and technical rooms
- White colour - unobtrusive routing along walls, skirting boards and in racks
- Designed for fibre optic router/ONT connection in FTTH/FTTB environment
Description
The connection cable connects fibre optic routers, ONTs or media converters to the existing LC/APC interface in the FTTH/FTTB network. It is a simplex OS2 singlemode cable with LC/APC 8° connectors on both ends, designed for high-performance point-to-point data connections on singlemode infrastructure.
The 2.0 mm round cable construction enables space-saving installation in patch panels, house distributors and router environments. The LSZH (Low Smoke Zero Halogen) jacket reduces the development of smoke and harmful gases in the event of a fire, which supports use in areas with increased safety requirements, such as office buildings, technical rooms and IT infrastructures.
The length of 1 m is particularly suitable for short connections between the fibre optic termination point and the end device, without creating unnecessary cable lengths in the rack or on the router. The white jacket colour facilitates visually neutral integration into existing installations.
Areas of application
- FTTH/FTTB connection of fibre optic routers and ONT/CPE
- Connections between fibre optic transfer point and end device in the building distributor
- Patching in 19" distribution panels and fibre optic panels with LC/APC interfaces
- System integration in telecommunication and IT infrastructures
- Network modernisation from copper to fibre optic connections in professional environments
Technical data
| Article description |
Connection cable for fibre optic router, Simplex OS2, LC/APC 8° to LC/APC 8°, 1 m, white |
| Article number |
LWR-LCA-LCA-1 |
| Cable type |
Simplex singlemode fibre optic OS2 |
| Connector type side A |
LC/APC 8° |
| Connector type side B |
LC/APC 8° |
| Polishing |
APC, 8° angle polish (both sides) |
| length |
1 m |
| Outer diameter |
2.0 mm round cable |
| Sheath material |
LSZH (Low Smoke Zero Halogen) |
| Sheath colour |
White colour |
| Category |
Fibre optic connection router / Fibre optic connection cable |
| Manufacturer / Brand |
DINIC / MAG GmbH |
Compatibility
Suitable for devices and connection points with LC/APC single-mode socket (OS2), e.g. fibre optic routers, ONT/CPE, media converters, fibre optic patch panels and LC/APC couplers in FTTH/FTTB and professional network environments.
Scope of delivery
1 x connection cable for fibre optic router, Simplex OS2, LC/APC 8° to LC/APC 8°, 1 m, LSZH, white.
