Technical highlights

• Simplex OS2 single-mode fibre (9/125 µm) for point-to-point connections
• Connector combination: LC/APC 8° connector to SC/APC 8° connector (LCA/SCA)
• Length: 15.00 m for longer distances between fibre optic transfer point and router
• LSZH jacket (Low Smoke Zero Halogen) to reduce smoke and halogen development in the event of fire
• Outer diameter approx. 2.0 mm, easy to lay in cable ducts, patch panels and technical cabinets
• Colour coding: white cable for clear identification in the fibre optic and IT environment
• Pre-assembled and factory-tested for reproducible attenuation values in professional use
• Packaging: DINIC box with Euro hole

Cable description

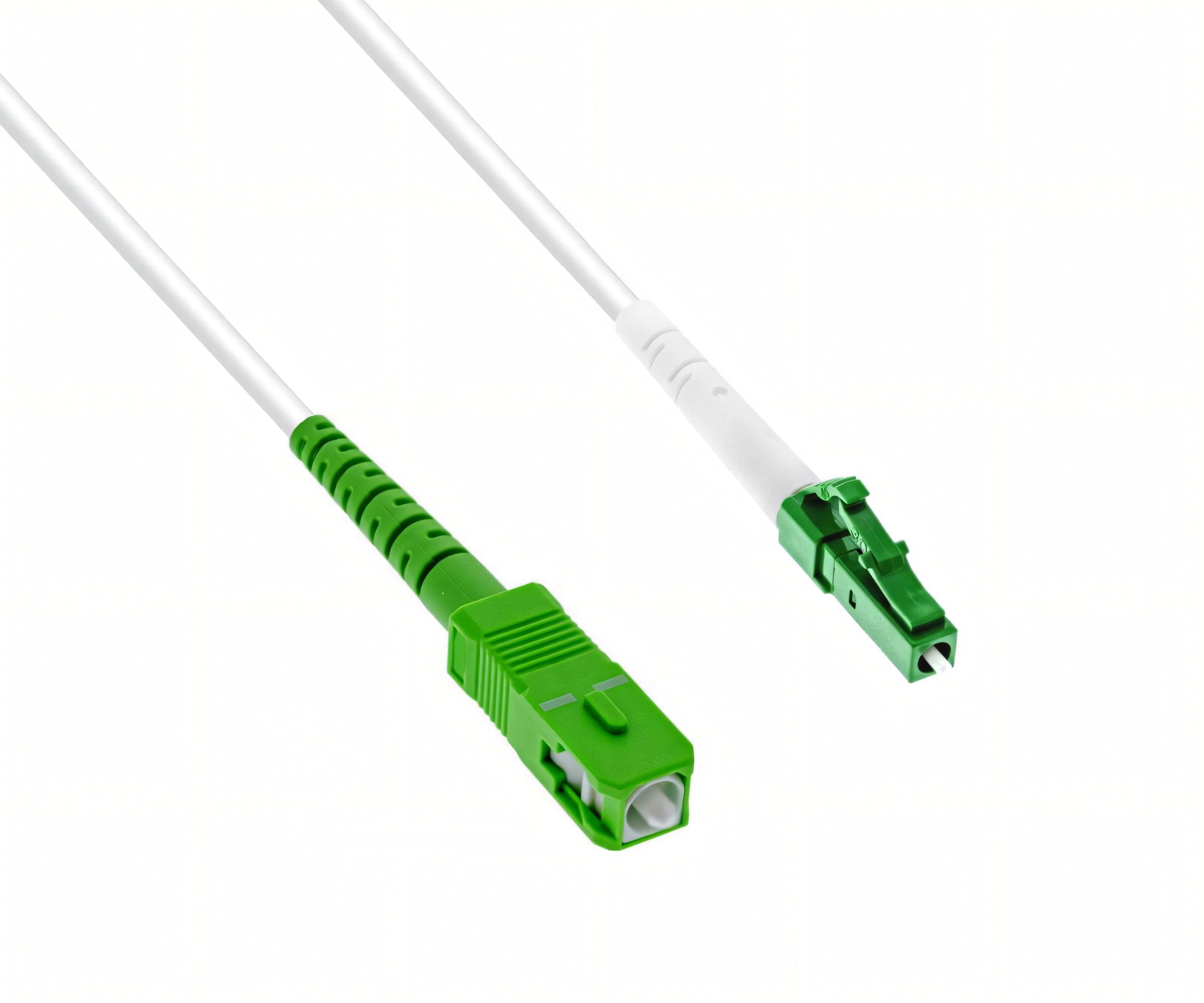

The connection cable connects fibre optic transfer points with router or ONT interfaces in FTTH and WAN installations. It is a pre-assembled simplex OS2 patch cable with LC/APC 8° connector on one end (LCA) and SC/APC 8° connector on the other end (SCA). The APC cut geometry with an 8° angle ensures low return loss and stable data transmission in single-mode networks.

With a length of 15.00 m, the cable is suitable for installations with a significantly greater distance between the fibre optic junction box or house transfer point and the router, for example when placing devices in remote rooms or technical zones. The length enables routing via existing cable routes and ducts without having to use additional couplings or intermediate connections. The outer diameter of approx. 2.0 mm supports space-saving and mechanically flexible installation.

The LSZH sheath (Low Smoke Zero Halogen) is designed for environments with increased safety requirements. In the event of fire, smoke and halogen development is reduced, which supports use in technical rooms, office buildings, data centre environments and publicly accessible areas.

Factory assembly with LC/APC and SC/APC connectors eliminates the need for on-site connector assembly. Fibre optic routers, media converters or ONTs can thus be reproducibly and securely connected to LCA/SCA outlets and fibre optic patch panels.

Areas of application

• FTTH/FTTB connections between fibre optic junction box (LCA/SCA) and router or ONT
• Building technology and structured house cabling with single-mode fibre optics
• Switch cabinet and technical room installations with OS2 point-to-point connections
• System integration and service deployment for fibre optic router installations
• Connection of media converters and gateways with LC/APC or SC/APC interface

Technical data

Part number	LWR-LCA-SCA15KB
Product type	Fibre optic connection cable for routers, simplex OS2
Fibre class	Singlemode OS2, 9/125 µm, simplex

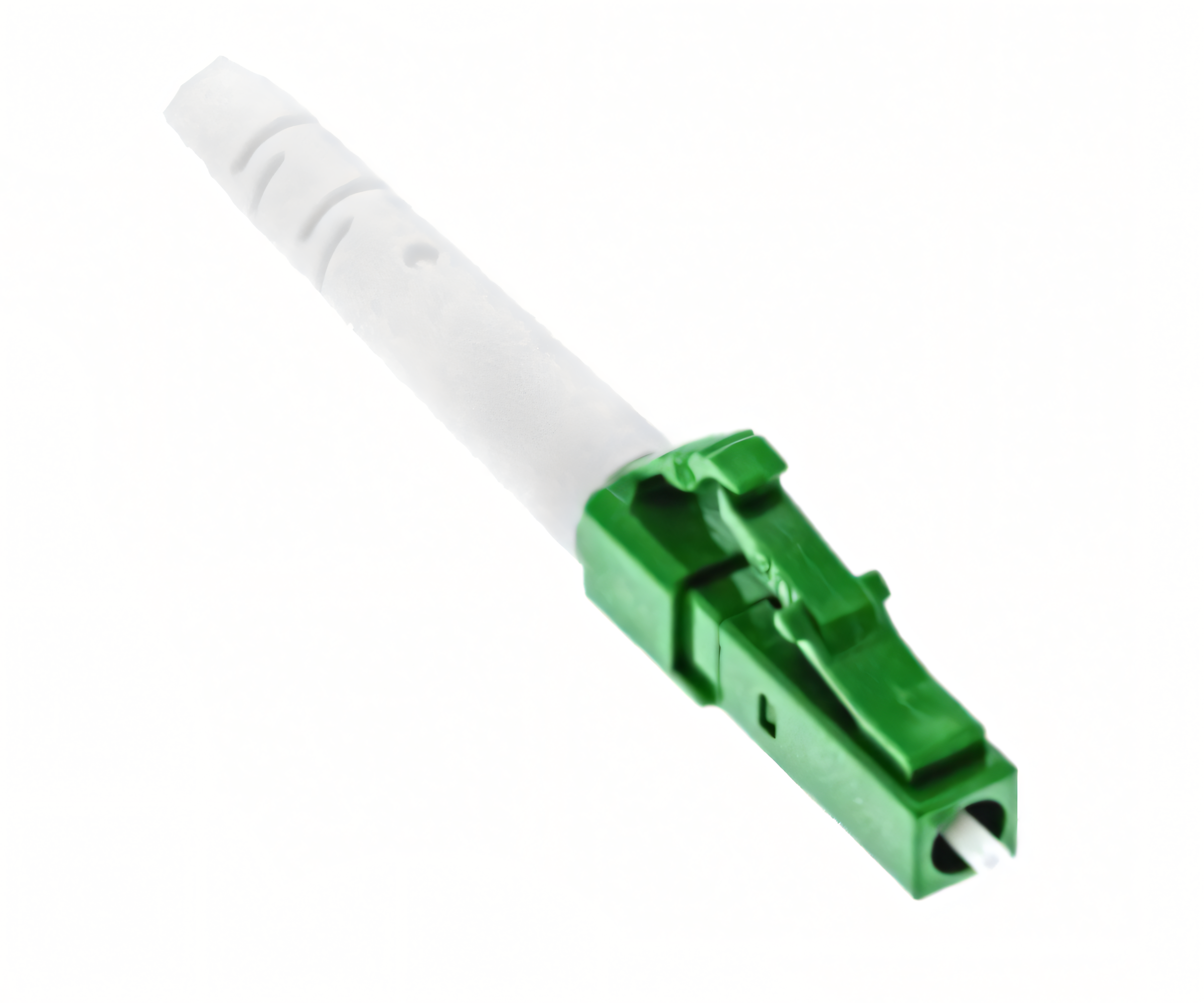

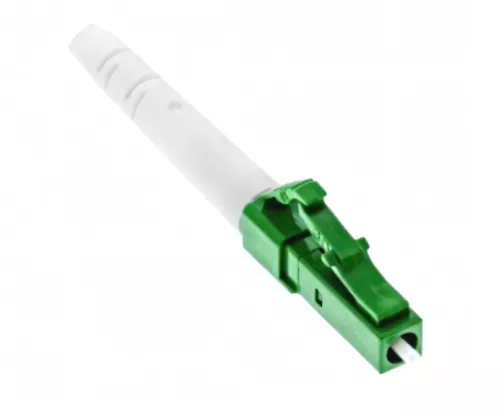

Connector side A	LC/APC 8° connector (LCA)

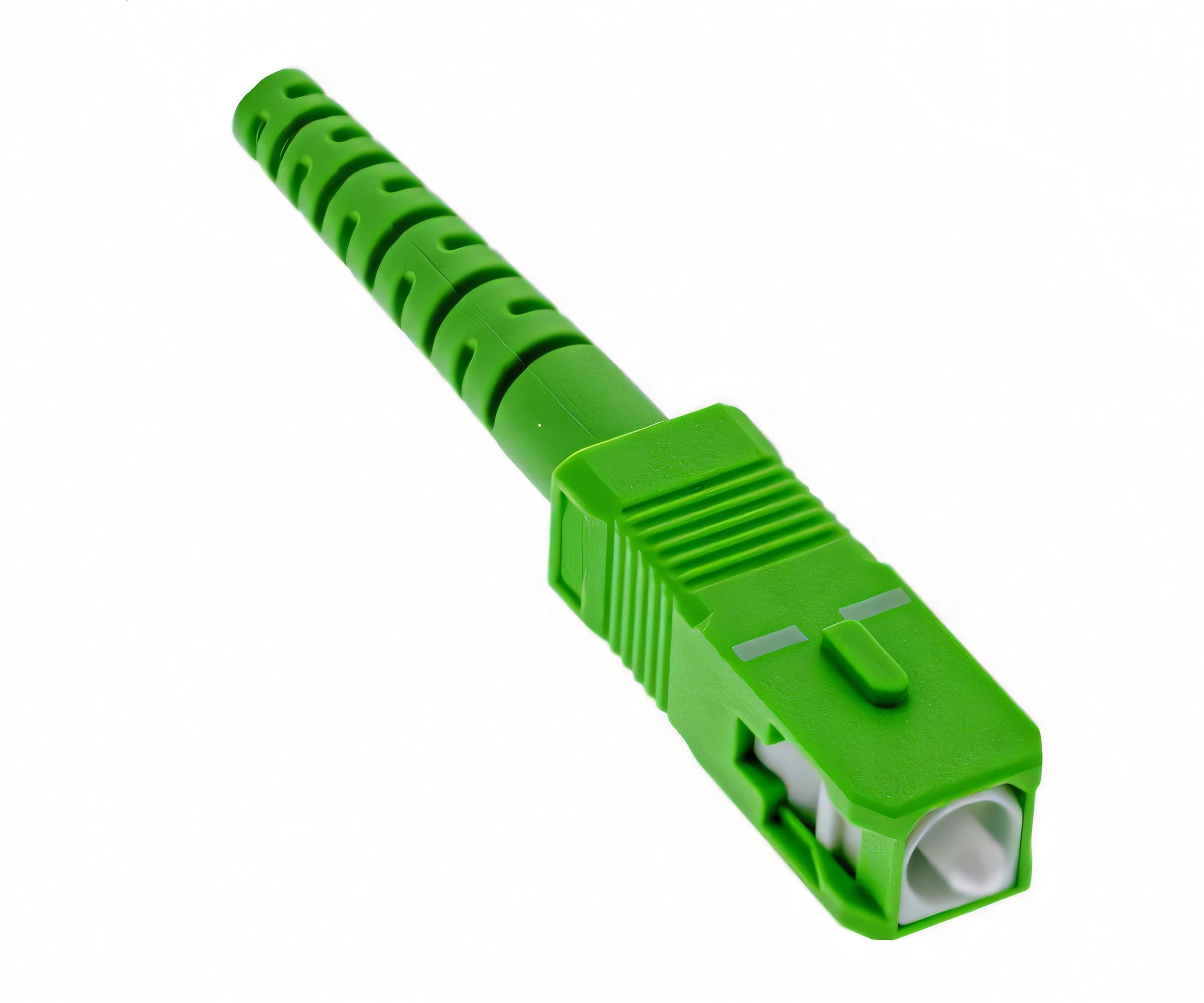

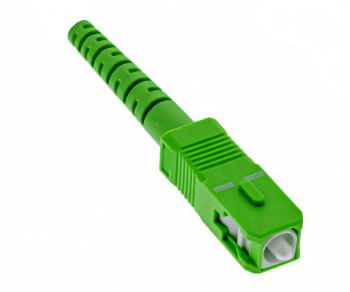

Connector side B	SC/APC 8° connector (SCA)
Cable length	15,00 m
Jacket material	LSZH (Low Smoke Zero Halogen)
Outer diameter	approx. 2.0 mm
colour	white colour
Packaging	DINIC box with Euro hole
Manufacturer: MAG	MAG GmbH

compatibility

• for fibre optic routers, ONT and media converters with LC/APC or SC/APC connection
• for junction boxes and transfer points according to LCA/SCA interface in the FTTH/FTTB area
• Can be used in OS2 single-mode backbones and point-to-point links
• suitable for patch panels and distribution units with LC/SC-APC ports

Notes

Use only under direct adult supervision

Scope of delivery

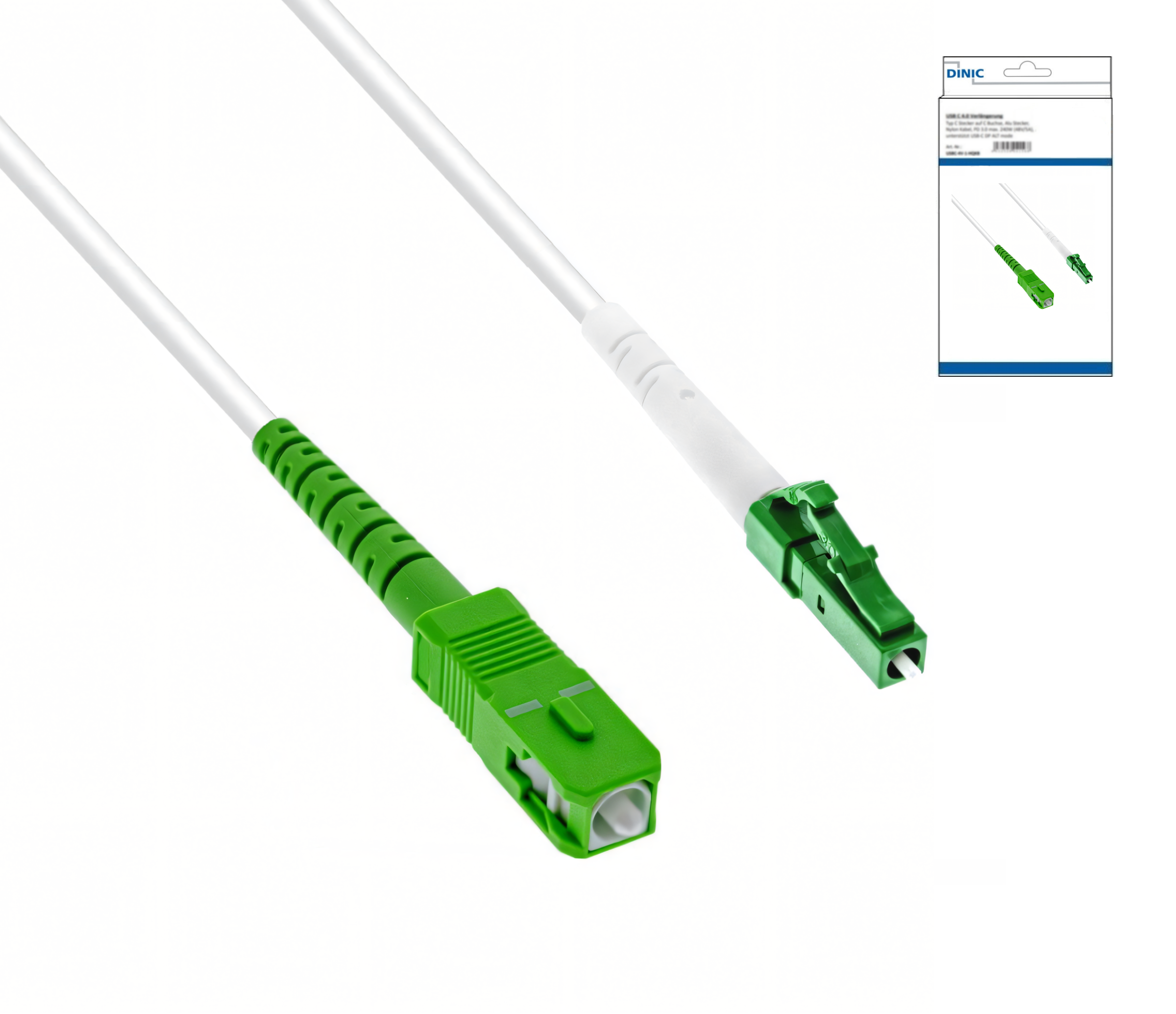

• 1 x connection cable for fibre optic router, simplex OS2, LC/APC 8° to SC/APC 8°, 15 m, LSZH, in DINIC box with Euro hole

DINIC is a trademark of MAG GmbH.

Keywords: Fibre optic connection cable LC/APC to SC/APC, OS2 Simplex 15 m, LCA SCA router cable, LSZH, DINIC
