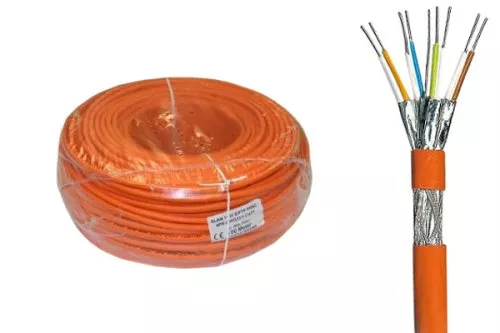

Cat.7 network installation cable, PiMF, 100m 100Ohm, 10GB, AWG 23, 1000 MHz, FRNC-B, orange

Product information for LAN Cat.7 1000 AWG23 S/FTP,4P FRNC-B, CPR Dca, orange, 100m

The data cable MK7101.x is designed for transmissions up to 1000 MHz and meets the requirements of category 7 with the electrical transmission properties. 10 GBit Ethernet transmissions are possible with this cable.

•     Category: 7
•     AWG cross section: 23
•     Core insulation: Foam-Skin-PE
•     Core identification: Color
•     Bending radius (dynamic): 60 mm
•     Bending radius (static): 30 mm
•     Directive/Regulation: RoHS 2011/65/UE
•     Euroclass: Dca
•     Flame retardant: according to IEC/EN 60332-1-2
•     Halogen-free according to EN 50267-2-2: Yes
•     Halogen-free according to EN 60754-1/2: Yes
•     Harmonized standard: EN 50575
•     Installation standard: EN 50174
•     Cable: IEC 61156-5
•     Cable construction: S/FTP
•     Coupling attenuation: 80 dB
•     Conductor diameter: 0.56 mm
•     Conductor class: Kl.1 = single wire
•     Conductor material: Cu, tinned
•     Jacket material: FRNC-B
•     Max. Frequency: 1000 MHz
•     NVP value: 76
•     PoE: according to IEEE802.3at PoE+;according to IEEE802.3af PoE;Yes;according to IEEE802.3bt 4PPoE
•     Test voltage DC, 1 min: 1000 V
•     Low smoke: according to EN 61034
•     Smoke resistant according to EN 61034-2: Yes
•     Shield over stranding: Foil
•     Shield over stranding: Braid
•     Loop resistance: 191.2 Ohm/km
•     Insulation class according to EN50174-2: D
•     UV resistant: No
•     Cabling standards: EN 50173-1;ISO/IEC 11801
•     Stranding element: Pairs
•     Characteristic impedance: 100 ± 15 Ohm
•     Resistance unbalance: 3
•     Perm. cable external temperature during assembly/handling: 0 - 50 °C
•     Allowable cable external temperature after assembly without shock: -20 - 60 °C
•     Transmission standards: IEEE 802.3 10Mbit to 10Gbit
